CDI CD42-T1A - CD42-T1 AHP Specifications; CD42-T1 AVHP Specifications

22 Hz ELECTROMAGNETIC TRANSMITTER USER GUIDE
Page 43 of 52
SPECIFICATIONS

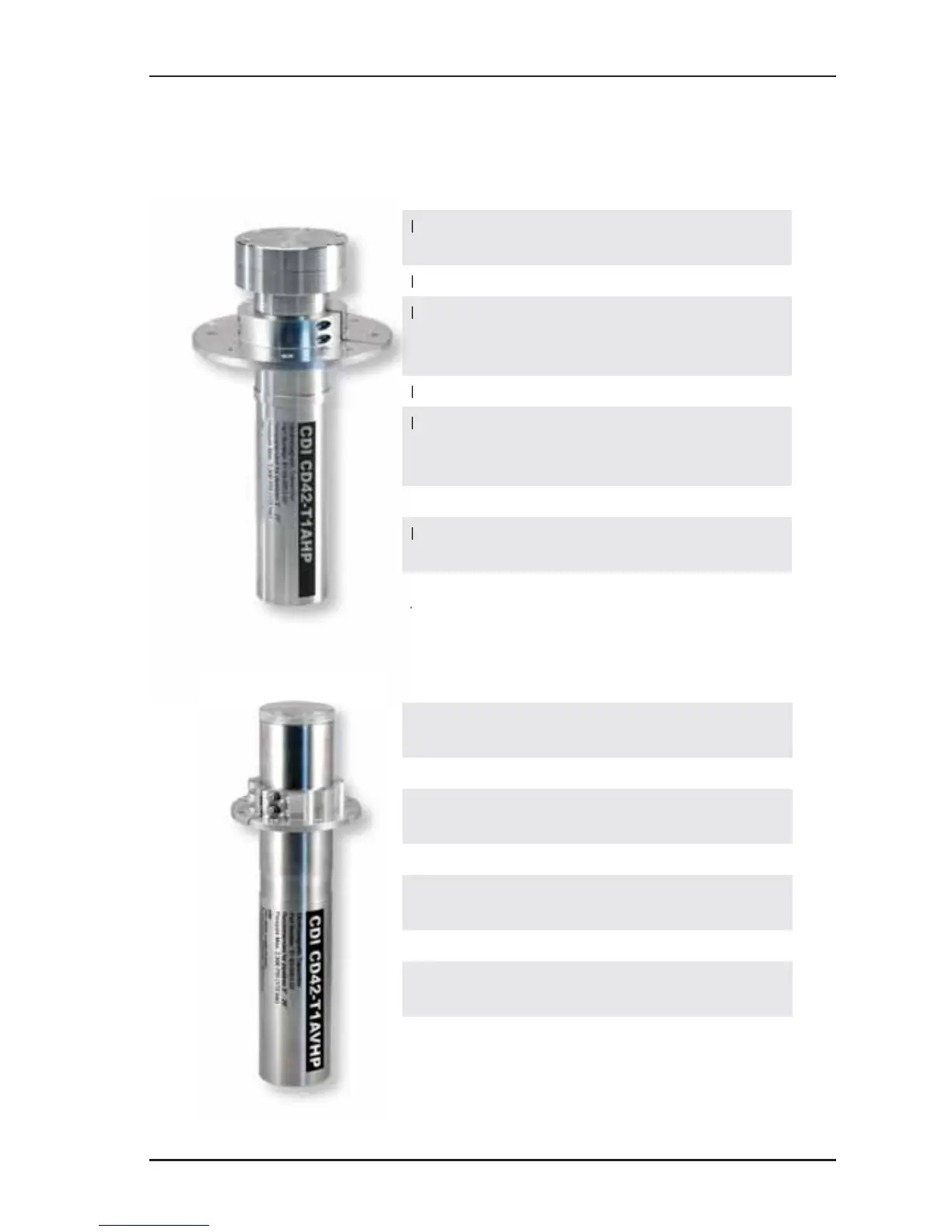

CD42-T1AHP
Pipeline Dia: 8 – 28 in.
[203 – 711.2 mm]
Pressure, max : 4,000 psi [276 bar]
Dimensions: 9.926 in. x 2.0 in.
[252.1 x 50.8 mm]
3.125 in. [79.4mm] fl ange
Ba eries: AA-Cell (6) Alkaline
Ba ery Life: Standard pulse: 500 hrs
Skip-one pulse: 678 hrs
Standard pulse 1,000 hrs
Material: 304 Stainless Steel
Range, open
air:
45  [13.7 m]
Opera ng
Temp Range:
– 40°F to 140°F
[– 40°C to 60°C]
C
P
P
D
B
B
M
R
a
O
T
T
CD42-T1AVHP
Pipeline Dia: 8 – 28 in.
[203 – 711.2 mm]
Pressure, max : 7,500 psi [517 bar]
Dimensions: 10.19 in. x 2.0 in.
[258.8 x 50.8 mm]
Ba eries: AA-Cell (6) Alkaline
Ba ery Life: Standard pulse: 500 hrs
Skip-one pulse: 678 hrs
Material: Titanium
Range, open
air:
45  [13.7 m]
Opera ng
Temp Range:
– 40°F to 140°F
[– 40°C to 60°C]
Transmi ers (cont.)
