Cebora PLASMA PROF 123 ACC - Components List; Plasma PROF 123 ACC: See File Esp956.Pdf Enclosed at the End of the Manual; Components Table: See File Esp956.Pdf Enclosed at the End of the Manual; Electrical Diagrams

CEBORA S.p.A. 33
4 - COMPONENTS LIST.
4.1 - Plasma PROF 123 ACC : see file ESP956.pdf enclosed at the end of the manual.
4.2 - Components table: see file ESP956.pdf enclosed at the end of the manual.
5 - ELECTRICAL DIAGRAMS.
5.1 - Plasma PROF 123 ACC : see file SCHE956.pdf enclosed at the end of the manual.

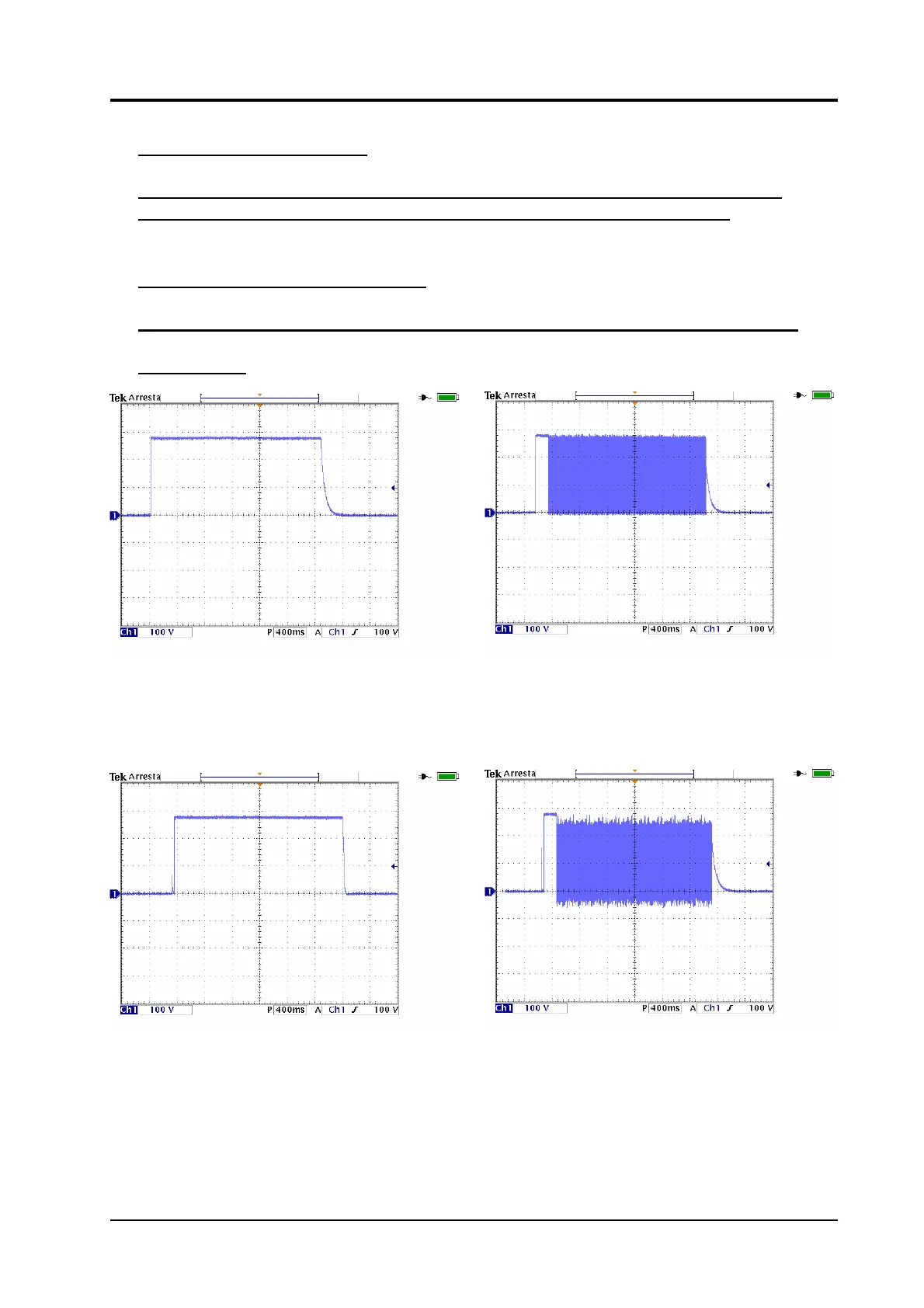

5.2 - Waveforms.
a) with pilot arc off b) with pilot arc on
5.2.1 - Power Source output voltage (par. 3.3.6, 3.3.8).
a) with pilot arc off b) with pilot arc on
5.2.2 - Nozzle output voltage (par. 3.3.6, 3.3.7, 3.3.9).
3.302.269 12/04/2012
