Cebora PLASMA PROF 123 ACC - Fuse Board (53), Code 5.602.403

CEBORA S.p.A. 35
5.3 - Fuse board (53), code 5.602.403.

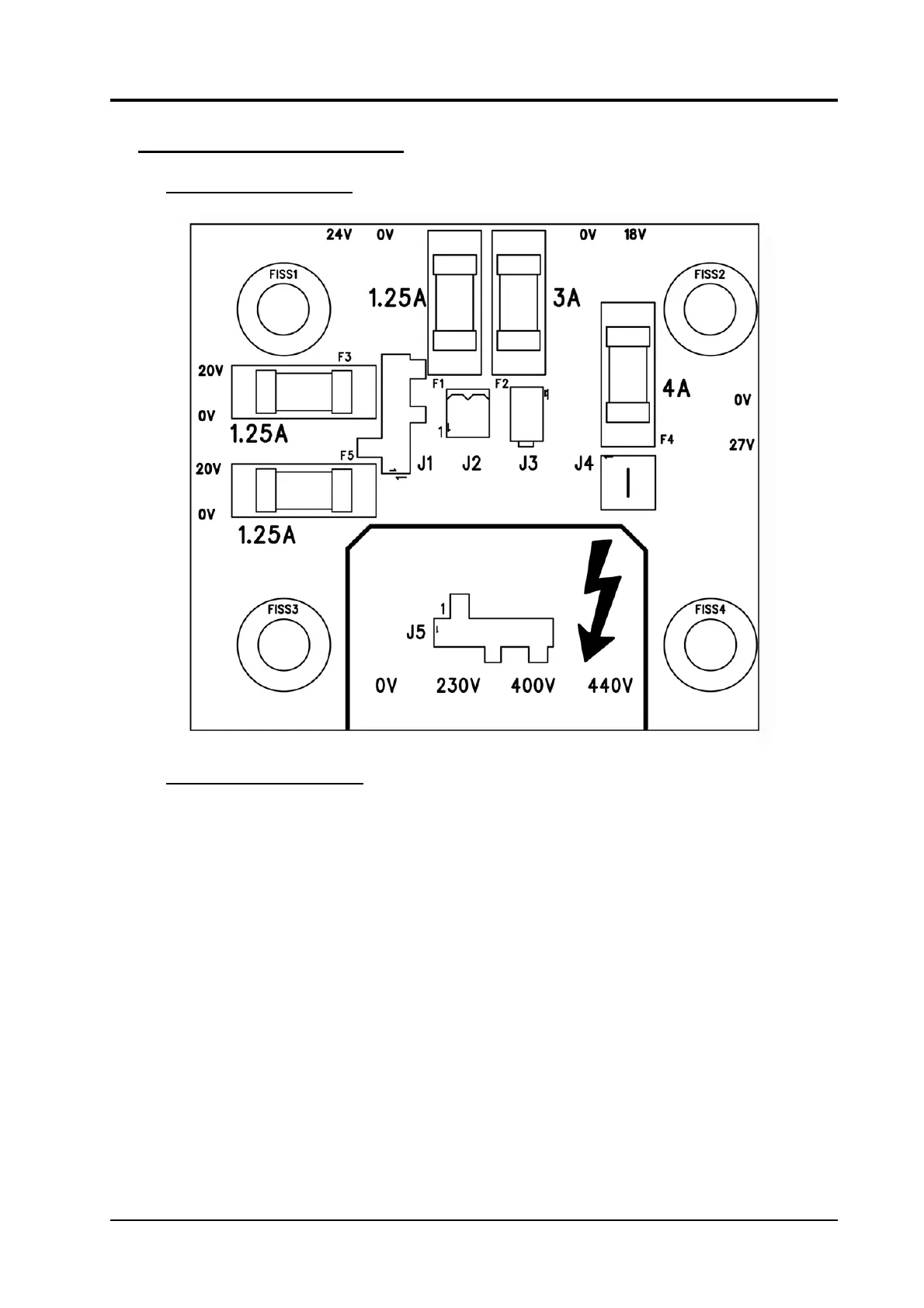

5.3.1 - Topographical drawing.
5.3.2 - Connector and fuse table.
Conn. Terminals Fuse Value Function
J1 1 - 2 F5 1.25 A 20 Vac output, driver board (56) power supply.
J1 4 - 5 F3 1.25 A 20 Vac output, sensor board (52) power supply.
J2 1 - 2 F1 1.25 A 24 Vac output, control board (47) power supply (start button,
torch recognition, central adapter (41) protection circuits).
J3 1 - 2 F2 3 A 18 Vac output, supply board (51) power supply.
J4 A - B F4 4 A 27 Vac output, control board (47) power supply (solenoid valves,
contactors, pre-magnetization circuits).
J5 1 - - 0 Vac input, services transformer (53) power supply.
J5 3 - - 230 Vac input, services transformer (53) power supply.
J5 4 - - 400 Vac input, services transformer (53) power supply.
J5 5 - - 440 Vac input, services transformer (53) power supply.
3.302.269 12/04/2012
