Cebora PLASMA PROF 123 ACC - Power Board (56), Code 5.602.401

CEBORA S.p.A. 41
5.8 - Power board (56), code 5.602.401.

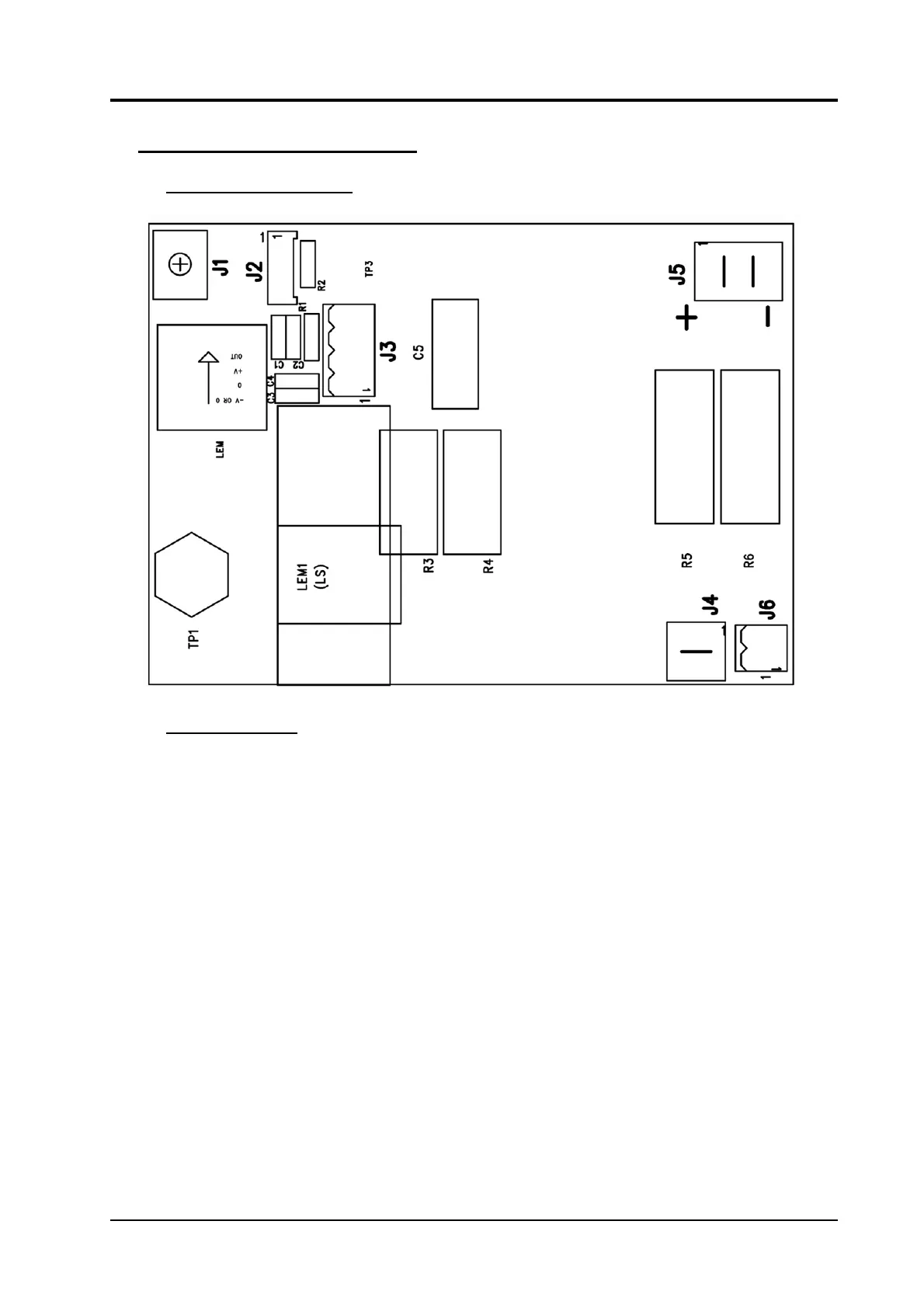

5.8.1 - Topographical drawing.
5.8.2 - Connector table.
Conn. Terminals Function
J1 - output voltage output, nozzle potential (+).
J2 1 “nozzle current” signal output.
J2 2(+) - 3(-) +15Vdc input for nozzle current transducer power supply.
J2 4(+) - 3(-) -15 Vdc input for nozzle current transducer power supply.
J3 1 “Power Source output current” signal output.
J3 2(+) - 3(-) +15 Vdc input for Power Source output current transducer power supply.
J3 4(+) - 3(-) -15 Vdc input for Power Source output current transducer power supply.
J4 A - B temperature signal input from thermostat of power board (56) igbt group
dissipater.
J5 A(+) - C(-) +280 Vdc output for connection with load resistors on pre-charge board (3).
J6 1 - 2 temperature signal output from thermostat on power board (56) igbt group
dissipater.
- TP1 output voltage output, ground potential (+).
- TP6 output voltage output, electrode potential (-).
