Description of the joint cutter CF•22 E
2.0 Joint cutter CF•22 E
The electrically driven CF•22 E is intended to be used as joint cutter / ground parting-o grinder for wet cutting, using
diamond saw blades. In places where due to exhaust and/or noise protection regulations machinery with internal
combustion engines cannot be used (e.g. closed rooms).
In spite of the compact design the CF•22 E can achieve a cutting depth of 270 mm and thus allowing more demanding
cutting works.
The construction in 3 easily transportable modules enables trouble-free transport and the assembling of the CF•22E at
workplaces dicult to access.
Assembly and dismantling of the subassemblies is done in just a few steps, no extra tools are necessary.

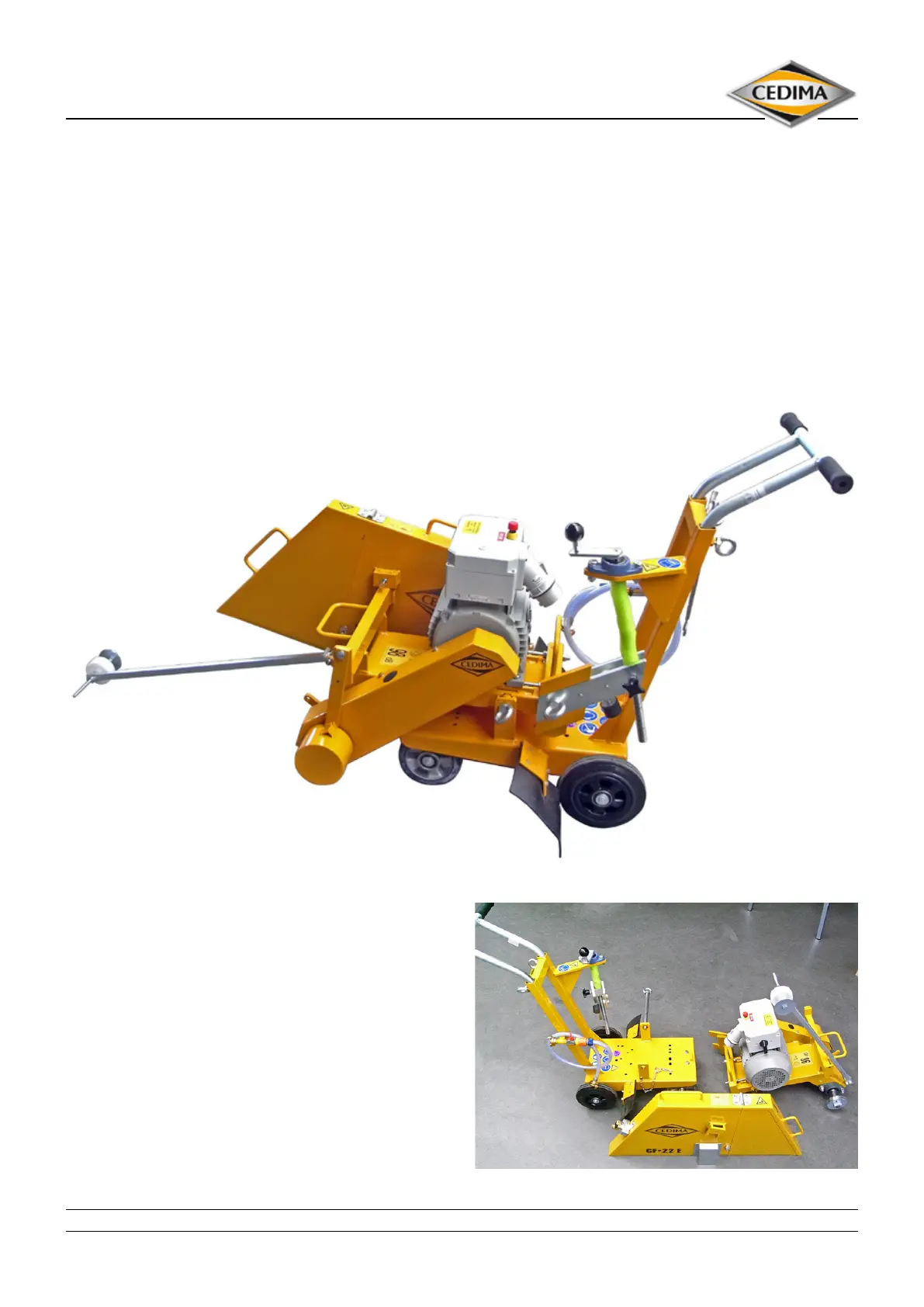

Figure 2.1
Separated in modules Figure 2.2
The weight distribution resulting from the arrangement
of all the components of the CF•22 E on this joint cutter
means that sucient pressure is applied to the diamond
saw blade, at the same time making the machine easy to
handle when setting it up and repositioning.
The modular design facilitates cleaning, maintenance and
if necessary the repair.
