Description of the joint cutter CF•22 E
The cutting shaft with the diamond saw blade is driven by
amodern, powerful electric motor over aV-belt.
The blade mounting is right or lef possiblet. For this pur-
pose the blade guard mounting side must be changed.
The feed is performed manually by pushing on the adjusta-
ble push handle.
Lowering and raising the diamond saw blade takes place
exactly and quickly over alockable hand crank with
athreaded spindle.
By using the innite cutting depth adjustment it is possible
to achieve cutting depths of up to 270 mm.
The cutting shaft is mounted in two selfaligning pedestal
bearings. The precision-engineered shaft has a 25.4 mm
diameter blade mounting ange.
The front pointer, which is mounted on the joint cutter
frame, enables the user to cut accurately along aline.
The water supply of the saw blade occurs over pressurised
water from an external hose which is to be connected to
the shut-o valve using aGeka coupling
The drive unit and cutting shaft rpm are designed in such
away that they create the optimal conditions for cutting
with CEDIMA® diamond saw blades.
We recommend the CEDIMA® diamond saw blades as
acutting insert since they achieve preservation of the joint
cutter due to their cutting capacity and smooth running

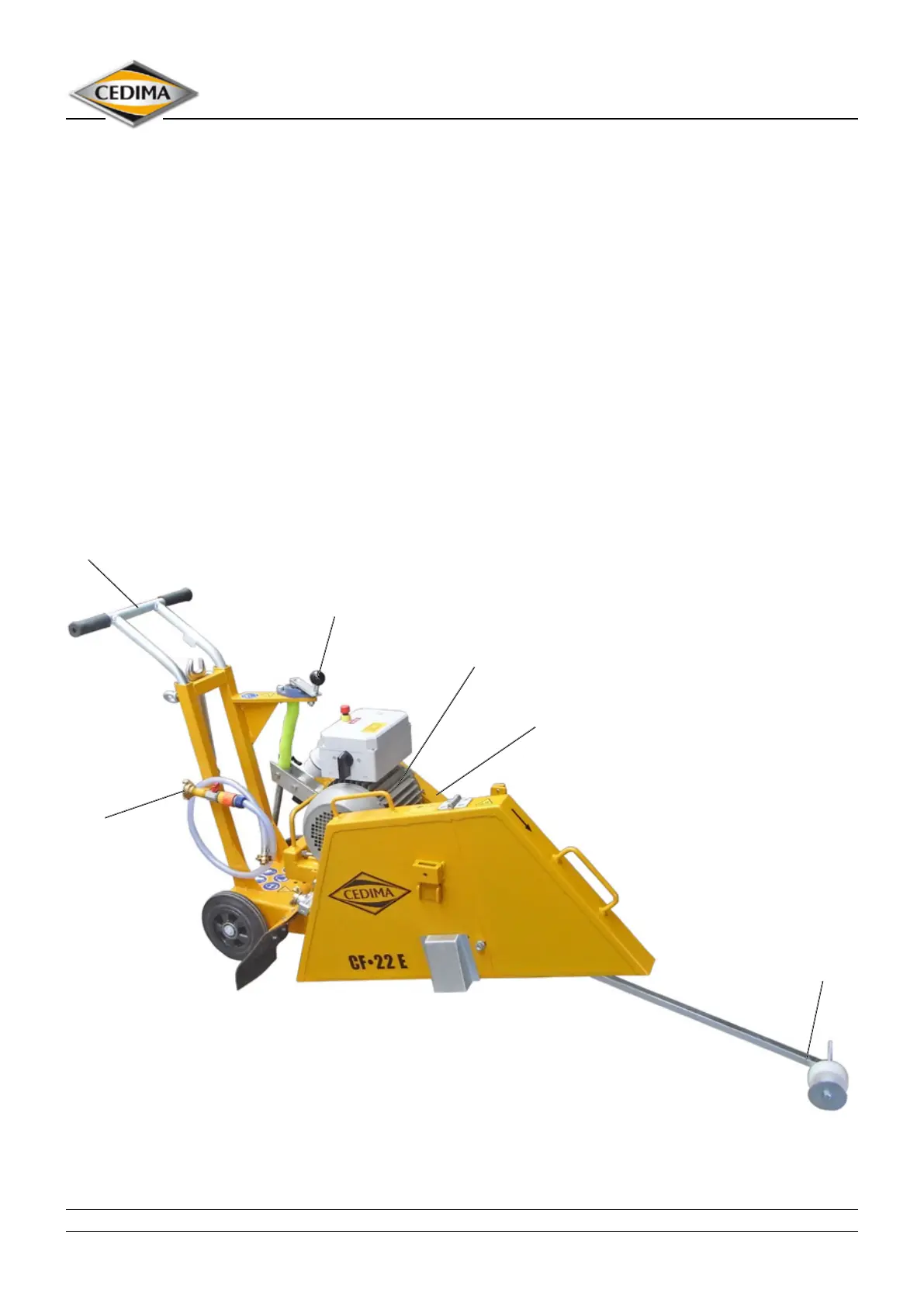

Figure 2.3
Front pointer
Lockable hand
crank for cutting
depth adjustment
Geka-
water connection
with shut-o
valve
Powerful
electric motor
V-belt drive
Adjustable/removable
push handle
