Telescope Basics 21

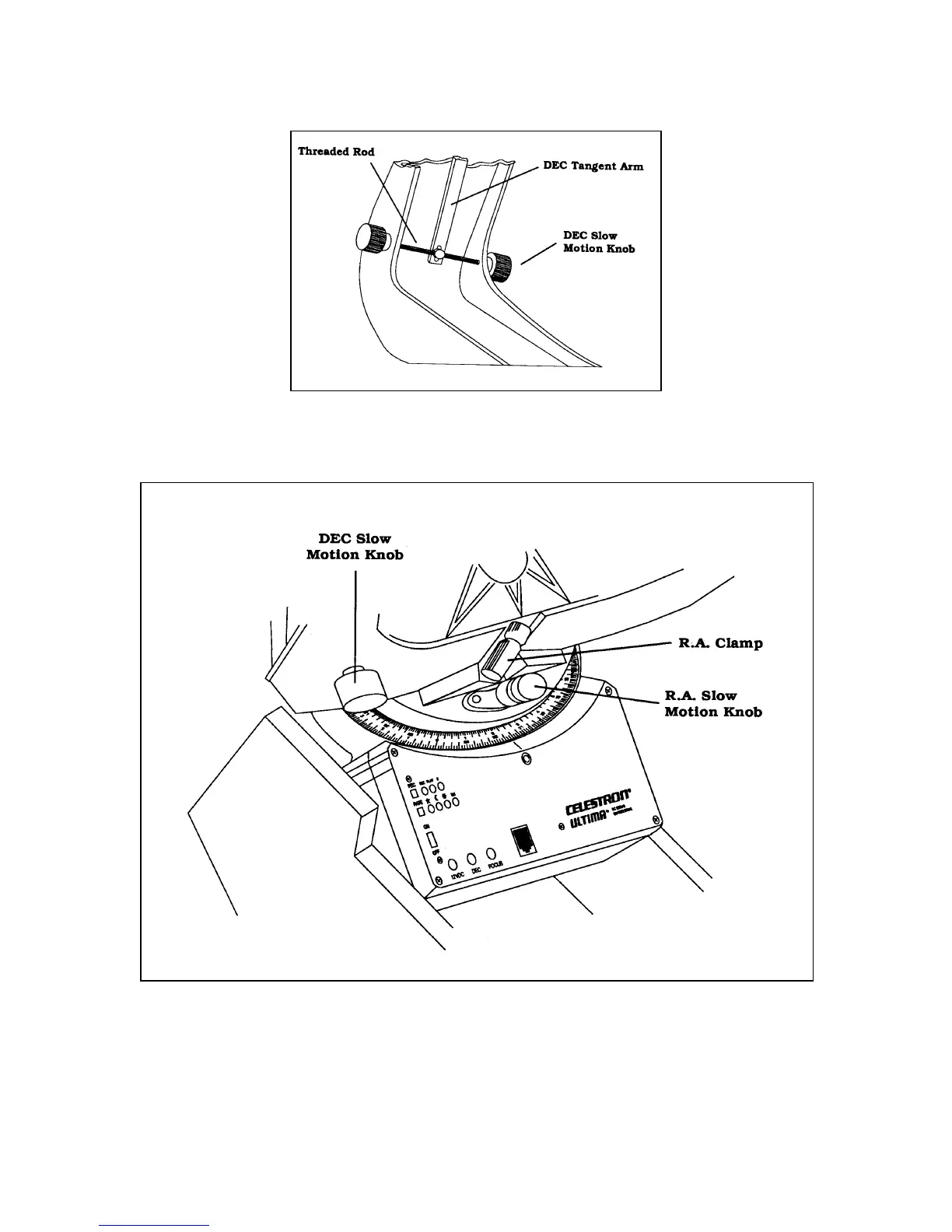

Figure 2-11
Fine adjustments in declination are made using either of the DEC Slow Motion Knobs. If the knobs
will not turn in the desired direction, then the DEC tangent arm has most likely reached the end of
the rod. See the text for instructions on fixing this situation.
Figure 2-12
Slight adjustments in R.A. are done by turning the R.A. Slow Motion Knob. In order to turn the
R.A. Slow Motion Knob, the R.A. clamp must be disengaged.
