OPERATION
Shearing
Step 1: Scribe the cutting mark on the material.
Step 2: Slide the material between the upper BLADE (#23) and the lower BLADE (#23) so that
the upper BLADE is positioned directly above the mark and the right hand side of the
material rests against the GUIDE (#16) as shown in Figure 5.

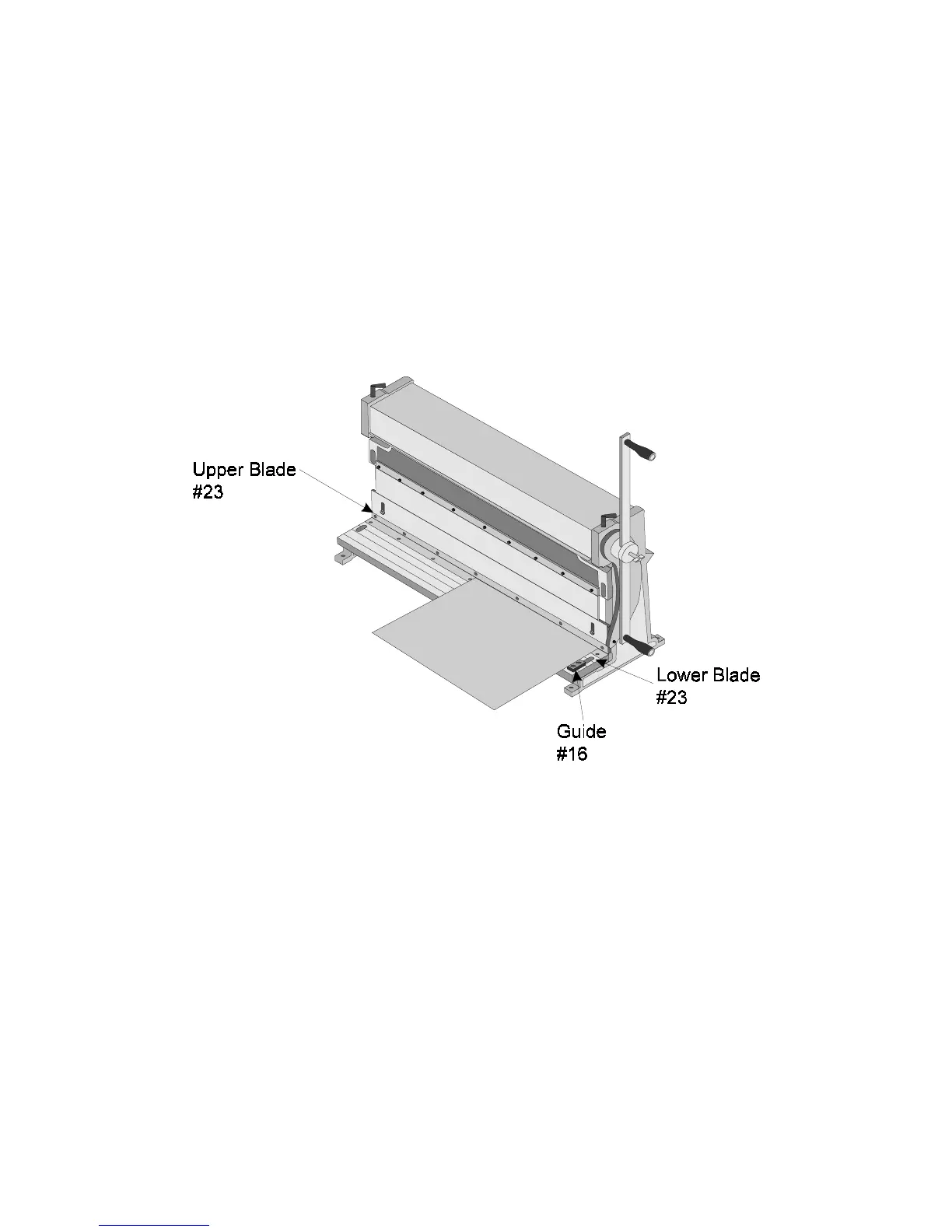

Figure 5 — Shearing
Step 3: While holding the material steady, rotate the HANDLE until the material has been cut.
