Centurion SDO4 SMART - Tip-up Doors Installation

page 29 www.centsys.com
6.2.2. Tip-up doors
Before commencing the installation, ensure that you have carefully read
and understood all safety recommendations. In particular, ensure that
the installation of the garage door complies with the requirements
specied. Make any necessary adjustments to the garage door BEFORE
commencing the installation!

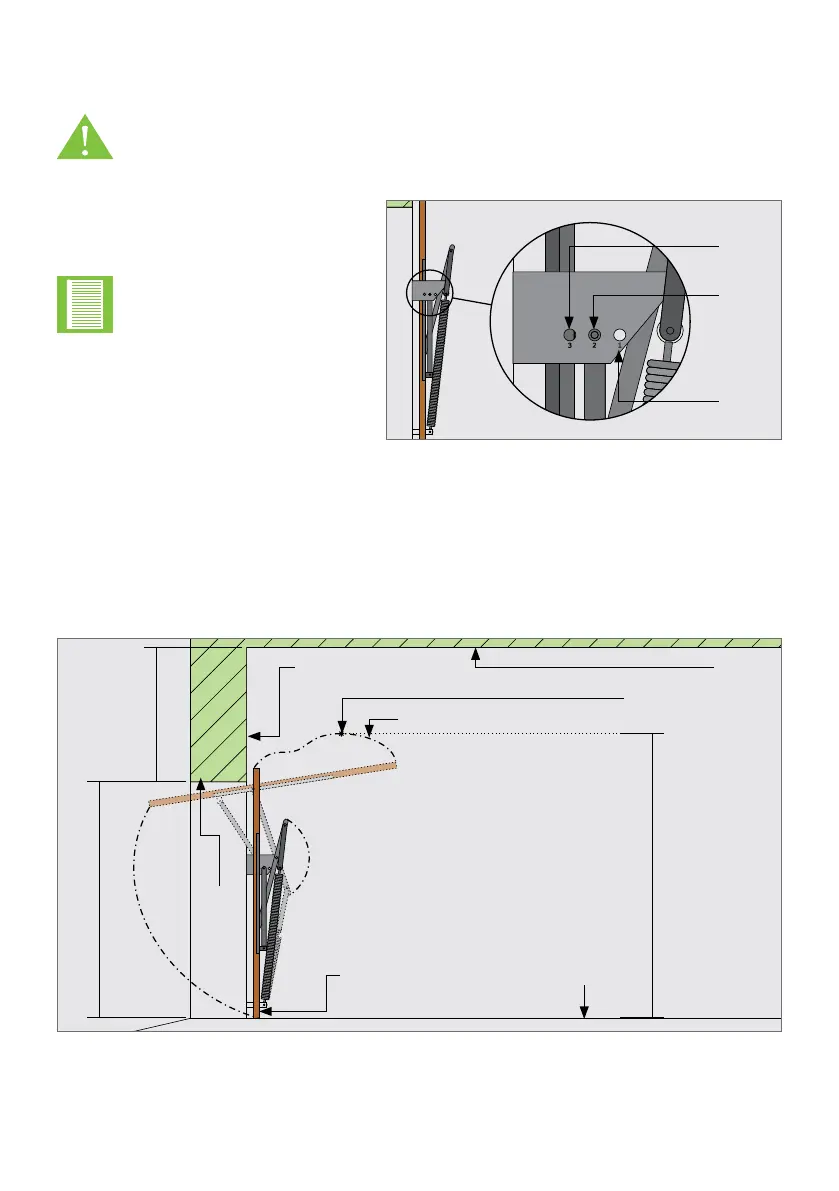

FIGURE 45
Floor to highrise level
Opening height
Available
headroom
Travel path of the topmost section of the garage door
Garage door
Lintel
Header
Highest arcing point
Ceiling
Floor
Door traveling path
The travel path of a garage door is determined by the path that the top section of the
garage door takes as the door is being opened or closed.
Important considerations
to note before
commencing installation
• The opening heights are
2135mm for standard
doors
• The structure is level,
square and plumb
• Pivot position No. 1 or 2 (140mm or more head room) is recommended for
automation. If insucient headroom is available, contact an approved garage door
installer to assist with possible modications
FIGURE 44
Pivot
point 1
Pivot
point 2
Pivot
point 3
OPERATOR INSTALLATION - TIP-UP DOORSSECTION 6
