page 17 www.centsys.com
6.2. Installation Instructions
6.2.1. Sectional doors (For Tip-up doors skip to Section 6.2.2)
Before commencing the installation, ensure that you have carefully
read and understood all safety recommendations. In particular, ensure
that the installation of the garage door complies with the requirements
specied. Make any necessary adjustments to the garage door BEFORE
commencing the installation!

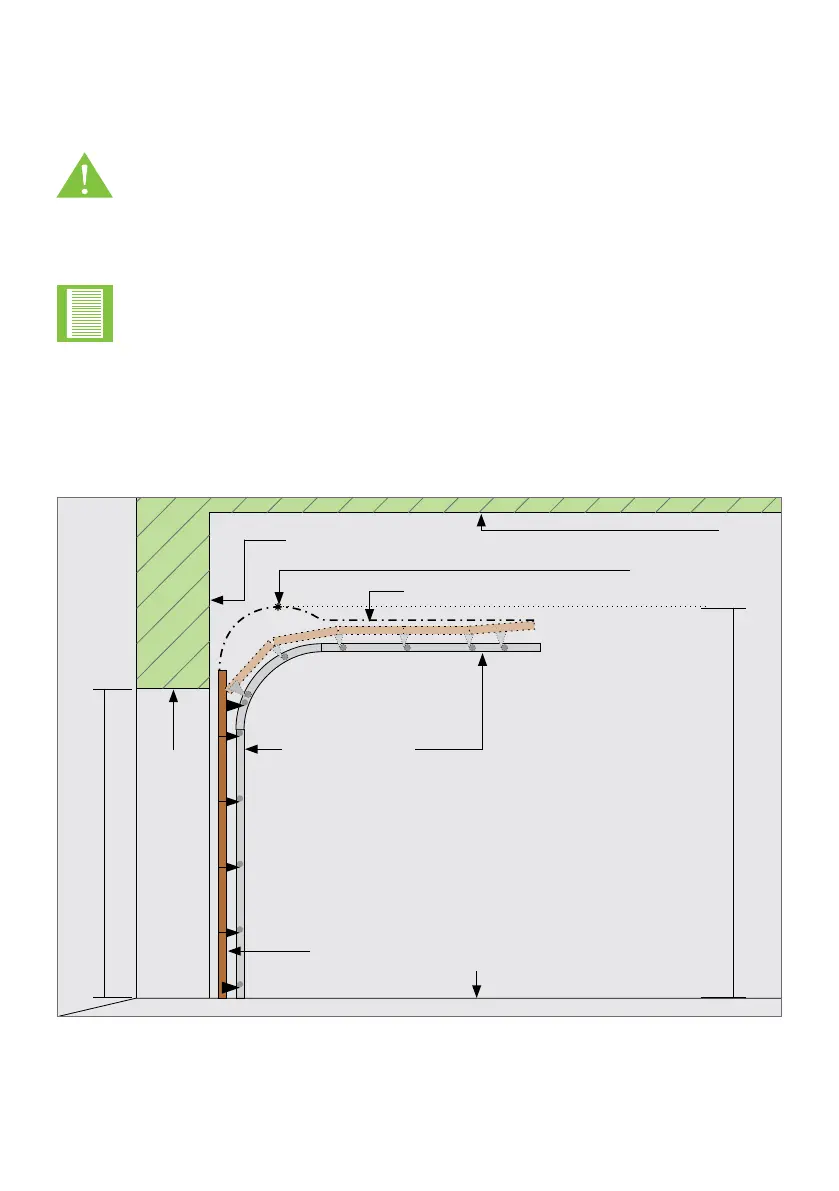

FIGURE 12
Floor to highrise level
Opening height
Travel path of the topmost section of the garage door
Garage door track
Garage door
Lintel
Header
Highest arcing point
Ceiling
Floor
Door traveling path
The travel path of a garage door is determined by the path the top section of the garage
door takes as the door is being opened or closed.
Important considerations to note before commencing installation
• The opening heights are 2135mm for standard doors,
or 2540mm for caravan height doors
• The structure is level, square and plumb
• For sectional doors, the door panel overlaps the opening by no more than
30mm at the top, and sides.
OPERATOR INSTALLATION - SECTIONAL DOORSSECTION 6
