page 16 www.centsys.com
FIGURE 10
FIGURE 11
FIGURE 9
U-Brackets
M6x12mm
Screws

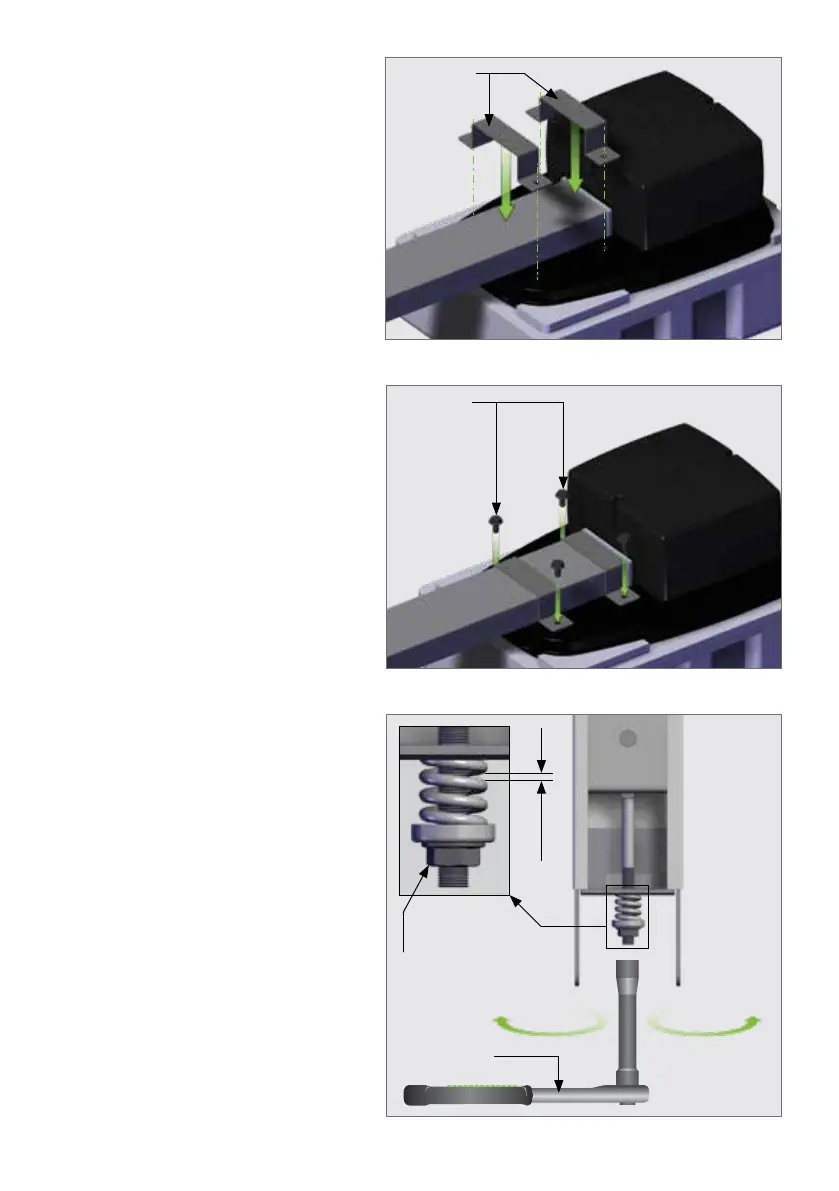

4. Place the two U-Brackets into
position over the four holes found
on the head unit (Figure 9).
5. Secure the U-Brackets into
position using 4x black M6x12mm
screws supplied (Figure 10).
The belt comes pre-tensioned from
the factory; however, ensure that
the spaces between the spring
windings are 0.5-1mm. Use a 13mm
socket and wrench to tighten the
drive should there, for whatever
reason, be a deviation from these
values.
6.1.3. Tensioning the belt
End B
To relax the
drive belt
To tension the
drive belt
13mm Socket
and Wrench
Drive belt
tensioning
bolt
0.5-1mm
OPERATOR INSTALLATIONSECTION 6
