Point Operation

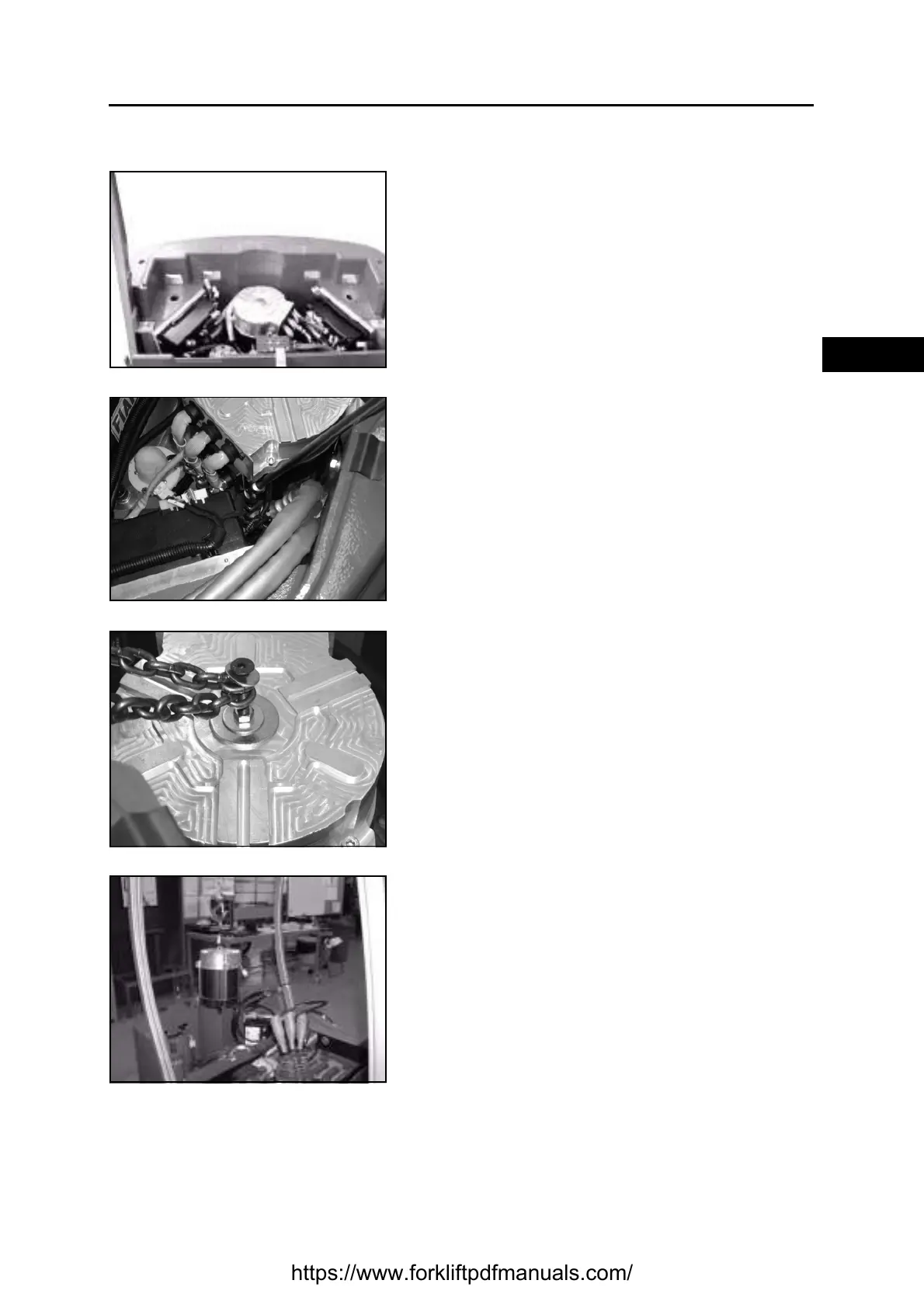

[Point 1]
Disassembly:
Remove the components in order to create the
working space
[Point 2]
Disassembly:
Remove the power cables and the wiring of the
encoder sensor.
Screw out the 6 screws of the motor.
Assembly:
After the installation, tightening torque of the 6 fixing
screws of drive motor:
Tightening torque = 79 Nm + Loctite 243
[Point 3]
Disassembly:
Connect a chain or a belt to the motor, as shown on
the picture, by a screw of M8 to the threaded hole on
the motor shaft
[Point 4]
Disassembly:
Lift up the motor and put it in horizontal position or in
vertical position on a special support as shown in the
picture, in order to avoid dangerous movements
