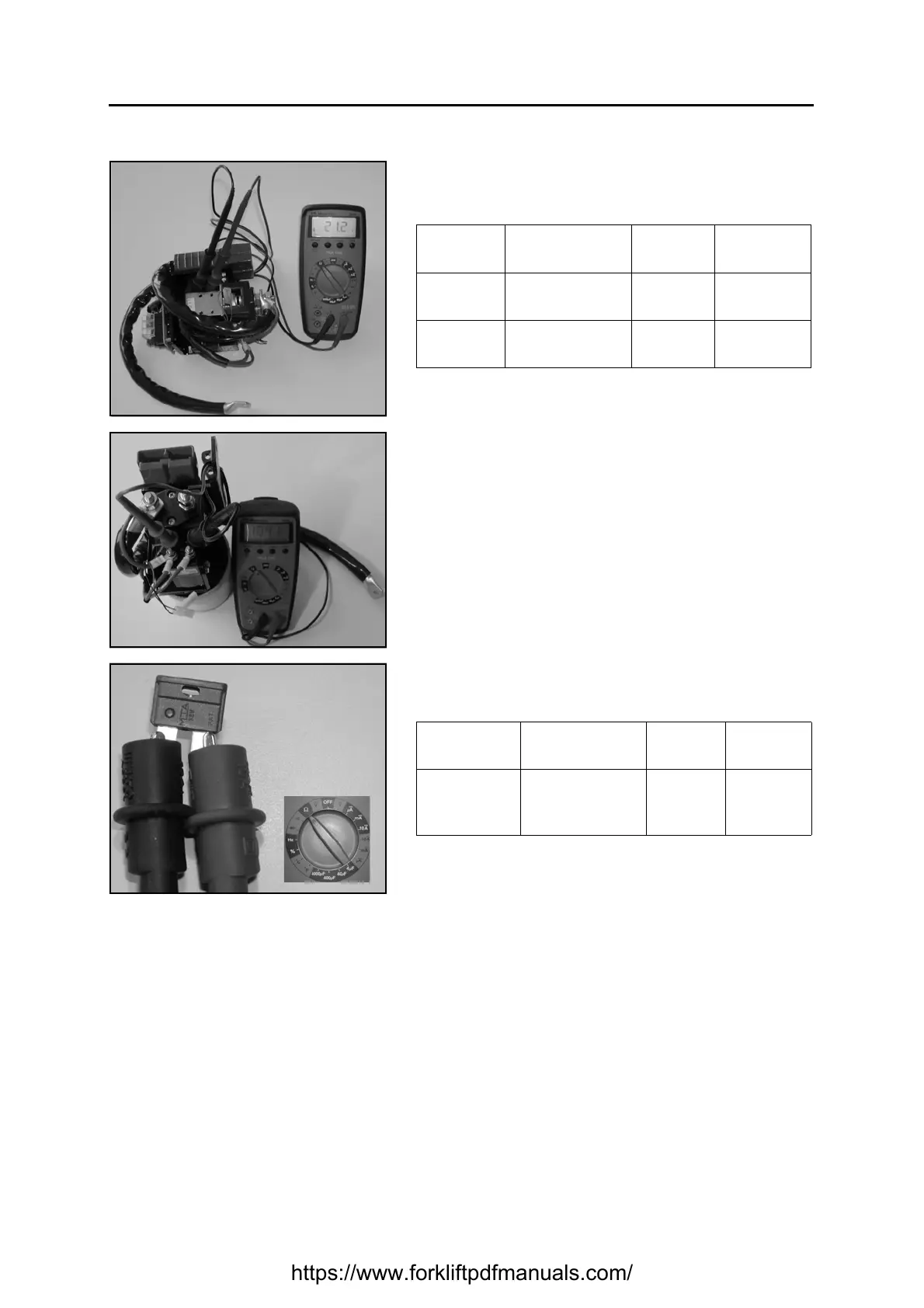

CESAB B 200 - INSPECTION (MB, FUSE)

2-24
INSPECTION
1. MB (power supply contactor)
Inspection method.
Disconnect the connector from the wiring harness and
measure the resistance of the coil.
2. FUSE
Inspection method.
Disconnect the fuse and measure the insulation
resistance
Part to be
inspected
Measurement
measurament
Standard
Tester
range:
Coil CT1
Both
coil terminals
Approx.
104 Ω
Ω × 1
Coil CT2
Both
coil terminals
Approx. 45
Ω
Ω × 1
Part to be
inspected
Measurement
measurament
Standard
Tester
range:
FUSES
Both
fuse
terminals
0 ΩΩ × 1
