5-10

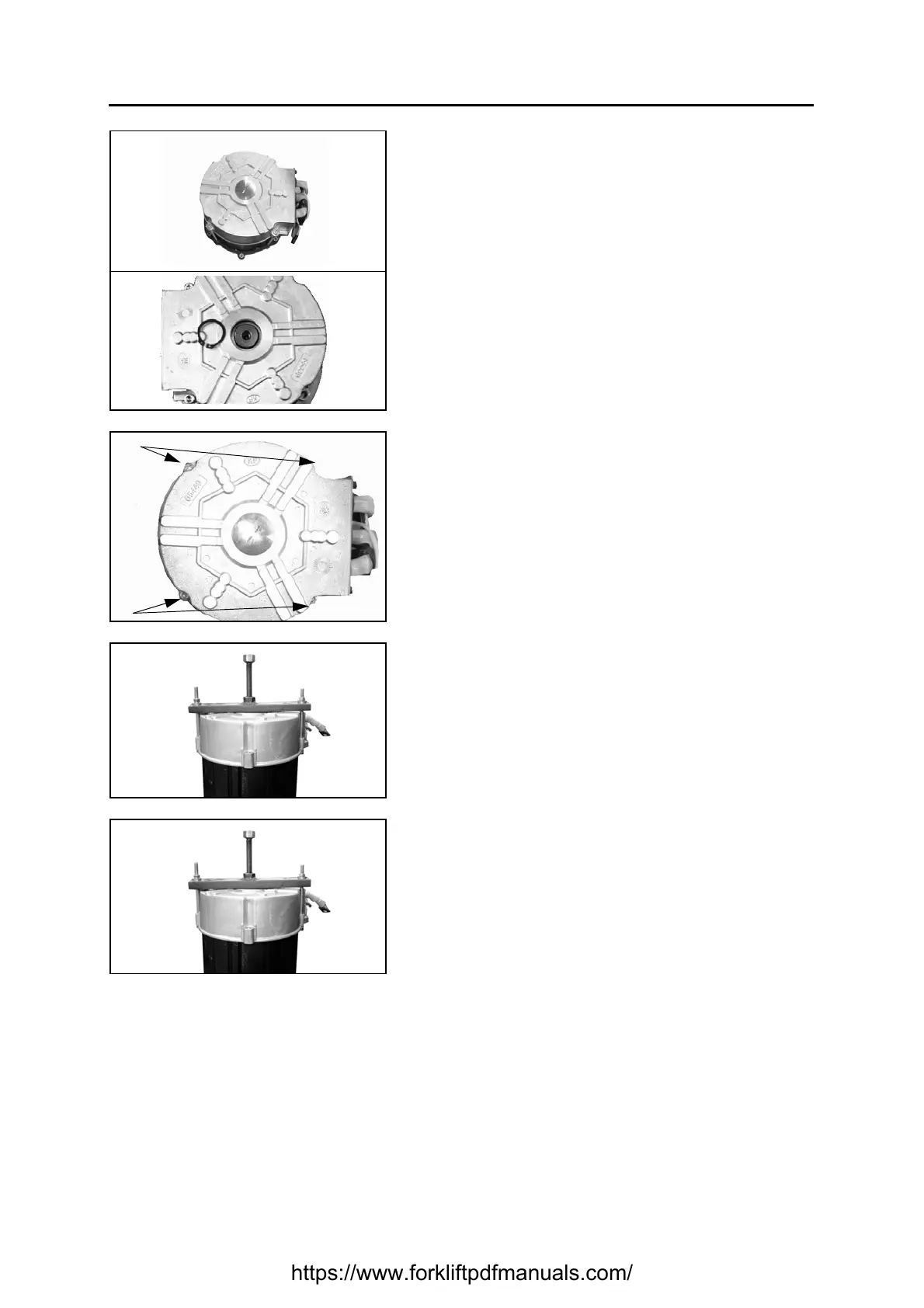

[Point 5]
Disassembly:
Remove the metallis plug on the upper shield and
remove the seeger under it
[Point 6]
Disassembly:
Remove the 4 M8x250 screws of the upper shield
[Point 7]
Disassembly:
Place the extracting bar and fix it as shown in picture
[Point 8]
Disassembly:
Screw the tension rod in order to lift the stator.
When the encoder goes out from the rotor axle,
remove the bar and remove the stator
