CESAB B 200 - Page 228

5-12
[Point 12]

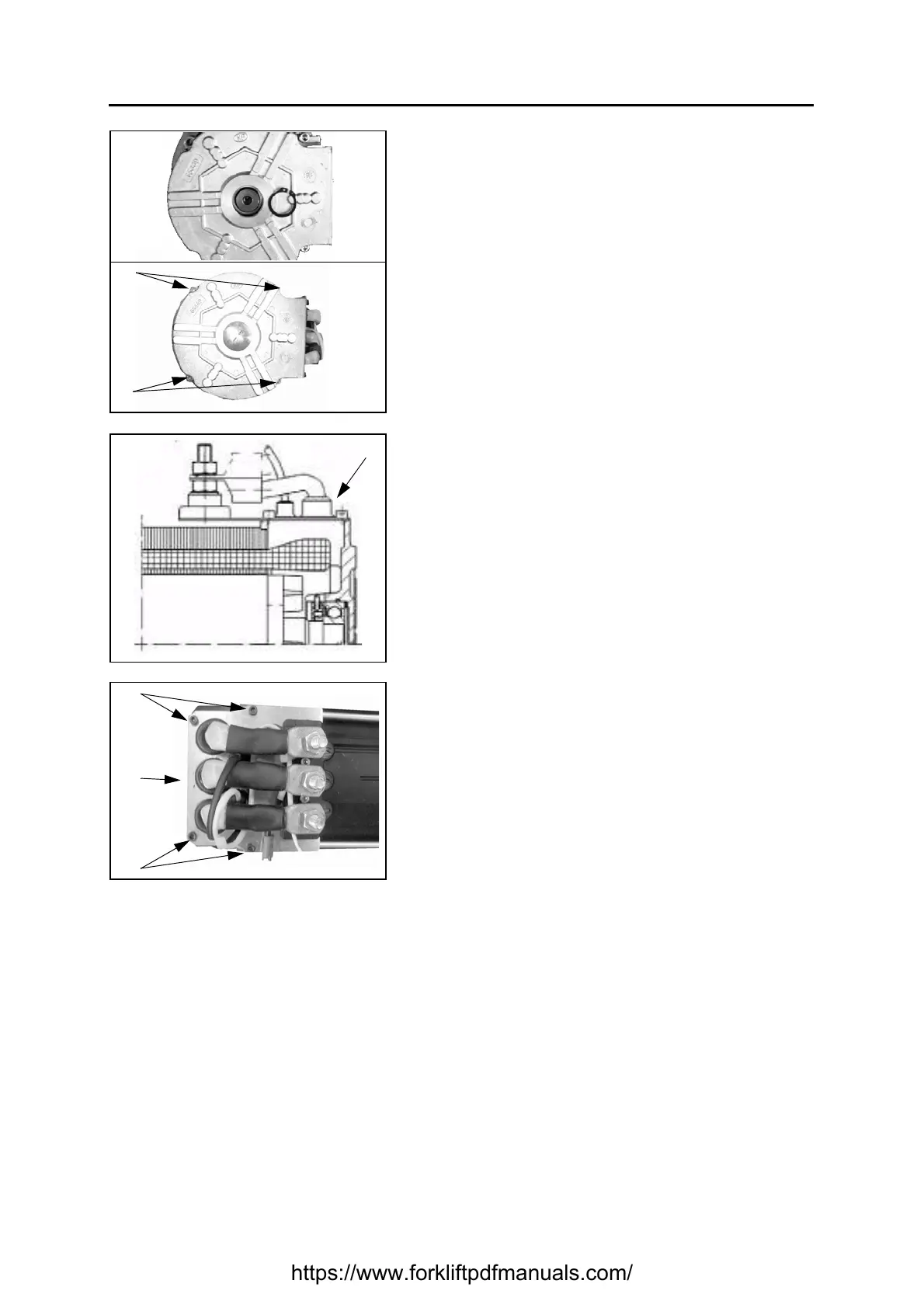

Assembly:
Reassemble the seeger and the metallic plug on the
upper shield.
Reassemble the 4 M8x250 screws E of the upper
shield
[Point 13]
Assembly:
Insert the rubber seals B that protect the power cables
in their site
[Point 14]
Assembly:
Fix the metallic plate D screwing the 4 screws C
E
E
B
C
C
D
