7-6
REMOVAL • INSTALLATION
Removal procedure
1. Lower the forks to the ground
2. Disconnect the battery plug
3. Remove the cover from the front dashboard
4. Remove the steering column cover
5. Remove the hydraulic steering (orbitrol)
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
Remarks:
• Add grease at the coupling between the steering shaft and steering valve

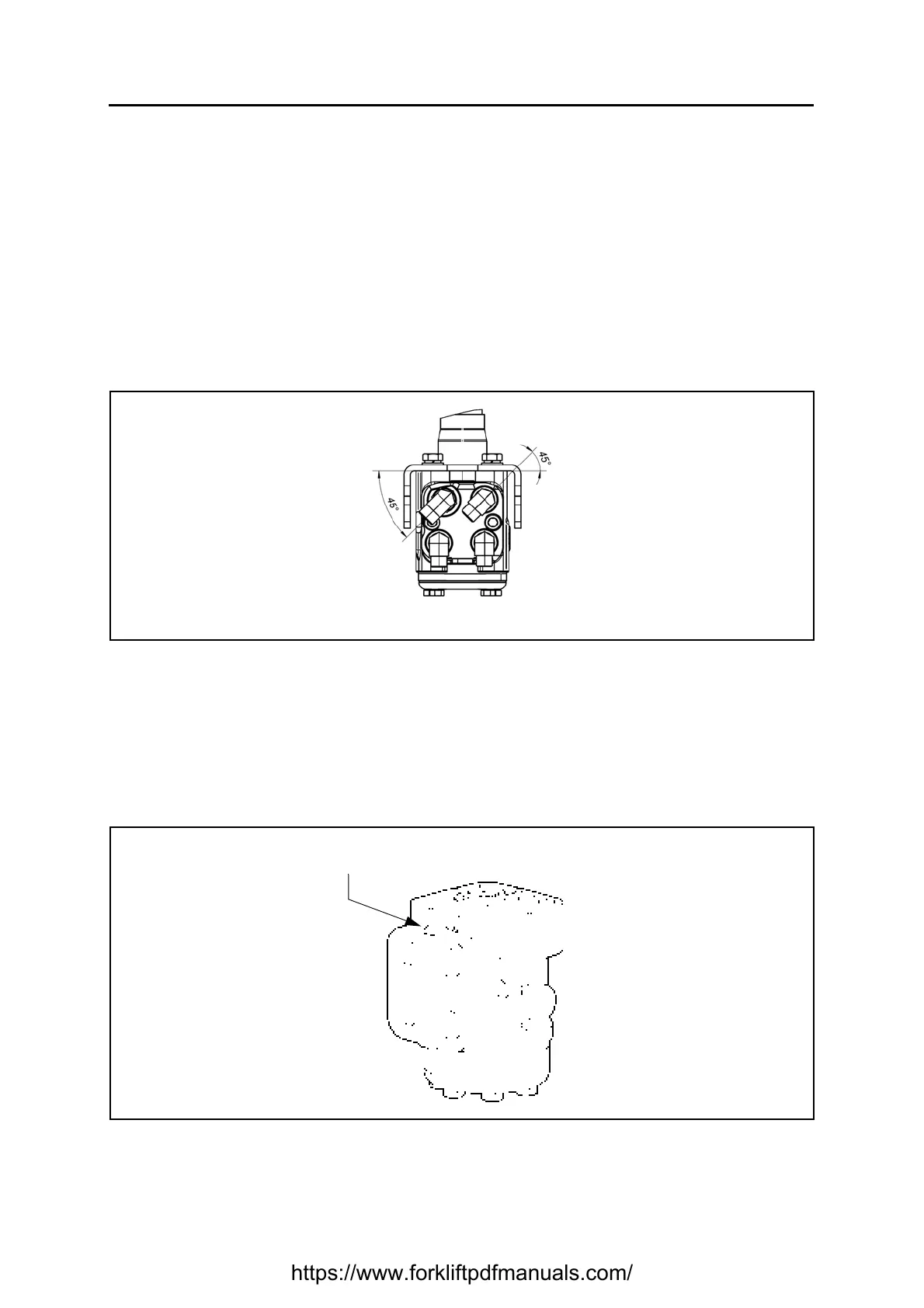

• Install the piping with the angle shown in the illustration below:
INSPECTION • ADJUSTMENT
Pressure relief valve
1. Connect a manometer to the priority valve pressure gauge
2. Turn the wheel as far as it will go (max. steering system pressure)
3. Read the maximum pressure on the manometer
4. Adjust the maximum pressure screws on the Orbitrol
Maximum standard pressure: ~ 100 Bar
Setting screw
is defective
