7-10
REMOVAL • INSTALLATION
Removal procedure
1. Remove the battery cover
2. Disconnect the battery plug
3. Remove the rear cover
4. Remove the right side plate of the frame
5. Remove the battery

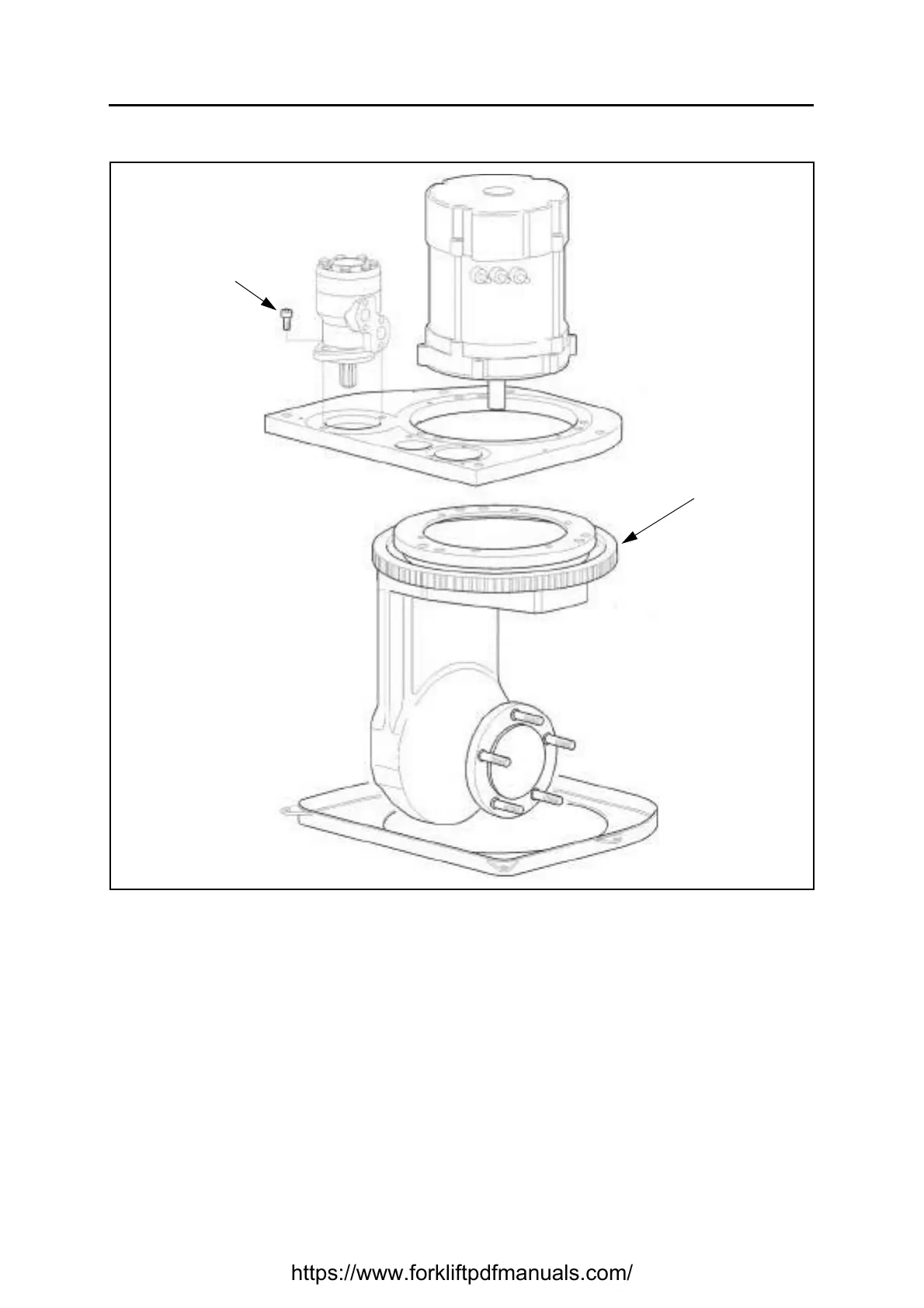

6. Disconnect the two hoses from the hydraulic motor
7. Remove the hydraulic motor
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
Remarks:
Grease the steering axle crown before coupling the pinion to the hydraulic motor
