7-12
REMOVAL • INSTALLATION
Removal procedure
1. Lift the battery cover
2. Disconnect the battery connector
3. Remove the rear cover
4. Remove the remote control switches - battery plug unit
5. Remove the steer potentiometer unit
6. Remove the two fixing screws and remove the potentiometer from the unit
Installation procedure
1. Check that the traction wheel is perfectly straight
2. Assemble the potentiometer on the unit
3. Assemble to potentiometer unit on the plate of the rear axle, making sure that the potentiometer is
positioned in the middle value (Potentiometer 15 rpm)
4. Repeat the steering potentiometer acquisitions

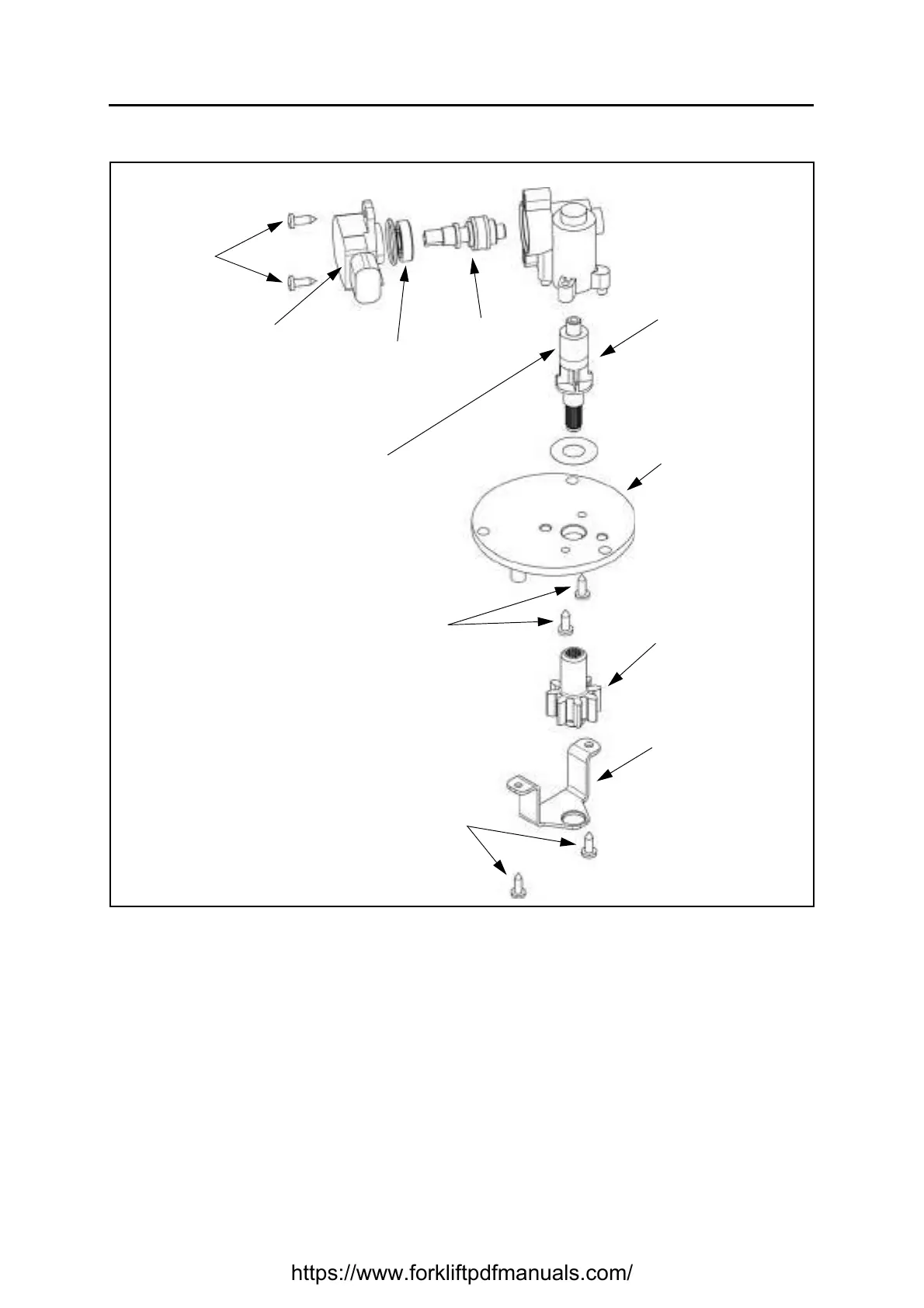

Potentiometer
Centering bushing
Gear
Shaft
Plate
Gear
Bracket
5 Nm
5 Nm
5 Nm
BEFORE REMOVING GREASE
WITH MOLYKOTE G-4500
