CESAB B 200 - BATTERY COVER DISASSEMBLY • REASSEMBLY

9-3
0
1
2
3
4
5
6
7
9
9
9
12
12
13
14
15
16
16
18

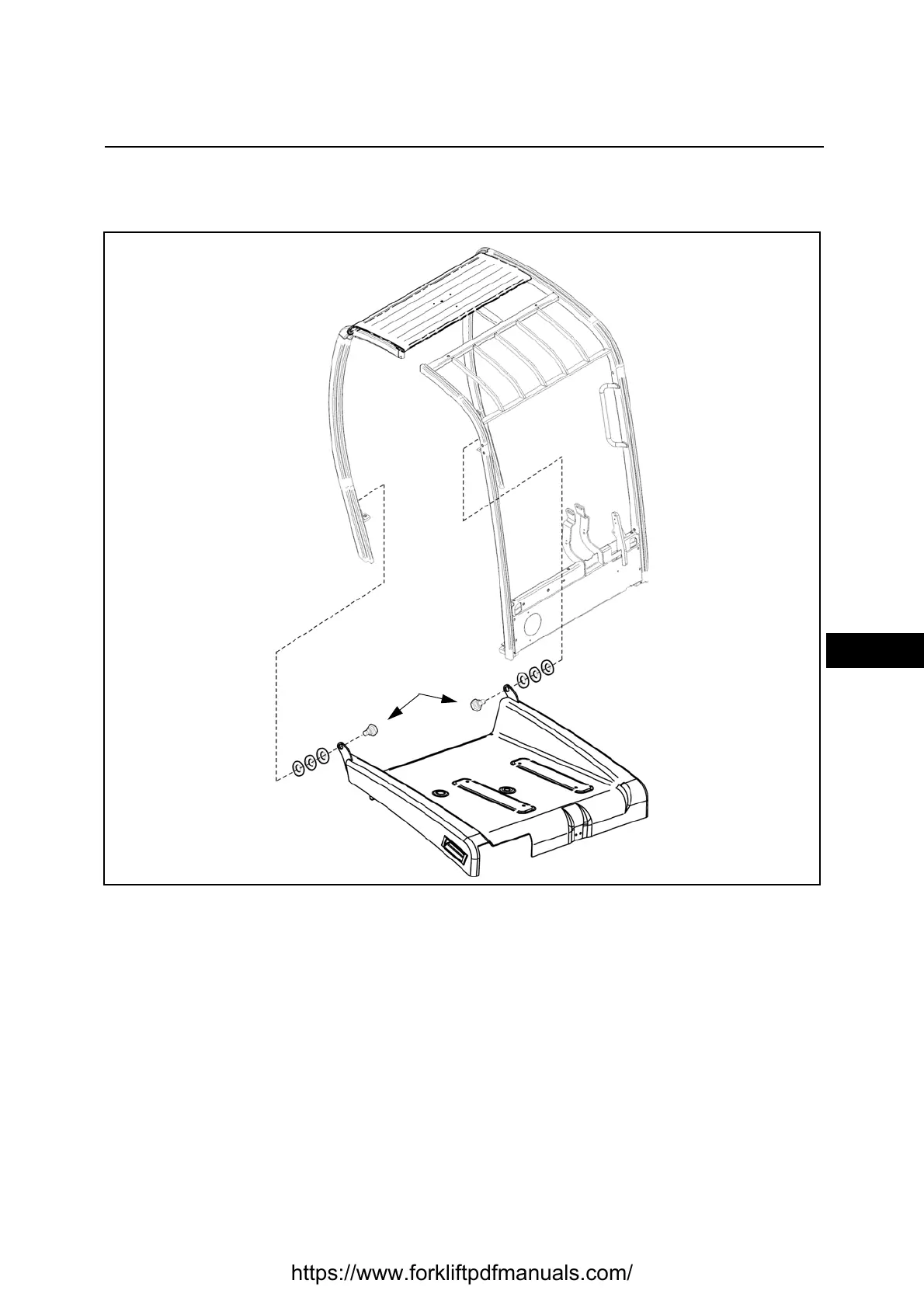

BATTERY COVER
DISASSEMBLY • REASSEMBLY
Disassembly Procedure
1. Open the battery cover
2. Disconnect the battery plug
3. Fix the battery cover with a rope between the operator’s seat and a mast of the overhead guard
4. Disconnect the wiring of the seat microswitch
5. Remove the gas spring supporting the battery cover (only frame side)
6. Close the battery cover
7. Remove the battery cover hinge set bolts
8. Remove the battery cover W/ seat
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
40 Nm (± 5%)
