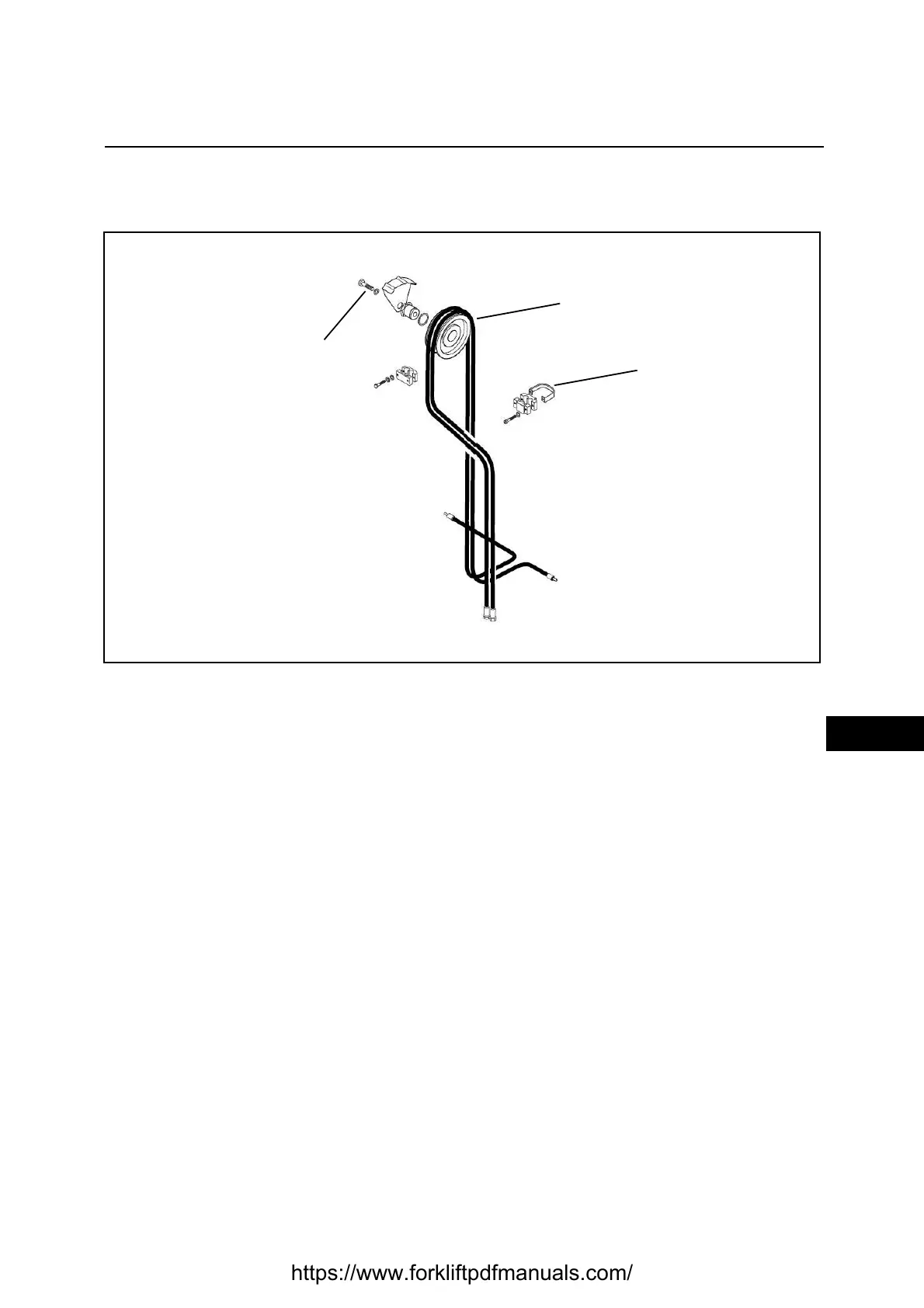

THIRD WAY SYSTEM (SUPPLY PIPES) - MAST 2M TV
REMOVAL • INSTALLATION
Removal procedure
1. Tilt the mast forwards and lock the mobile mast and carriage using appropriately sized and protected
eye bolts and belts
2. Lower the mast to prevent the supply pipes from remaining in tension
3. Remove the pulley fixing screws
4. Remove the third way supply pulley, including the pin and the fixing ring
5. Remove the terminals [Point 1]
6. Position a container to collect the oil
7. Remove the pipes [Point 2]
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
4
3
5
