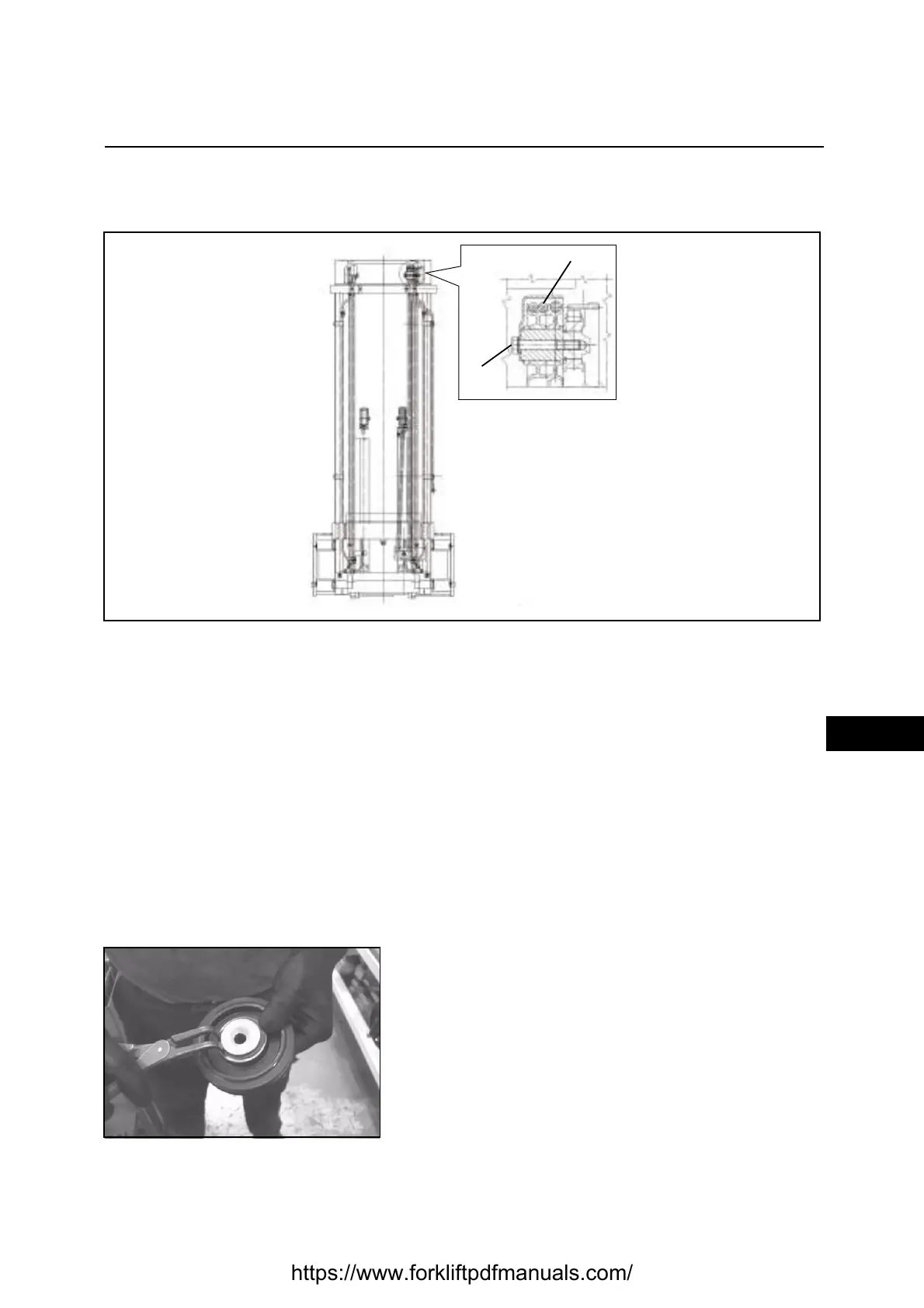

THIRD WAY SYSTEM (PULLEYS) - MAST 3M FFL
REMOVAL • INSTALLATION
Removal procedure
1. Tilt the mast forwards and lock the mobile mast and carriage using appropriately sized and protected
eye bolts and belts
2. Lower the mast to prevent the supply pipes from remaining in tension
3. Remove the pulley fixing screws
4. Remove the third way supply pulley, including the pin and the fixing ring [Point 1]
5. Remove the plug [Point 2]
6. Remove the chain pulley [Point 3]
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
Remarks:
• Lubricate the pin with MP grease before coupling to the pulley
• Install a new plug
Point Operation
[Point 1]
Disassembly:
Remove the elastic ring.
