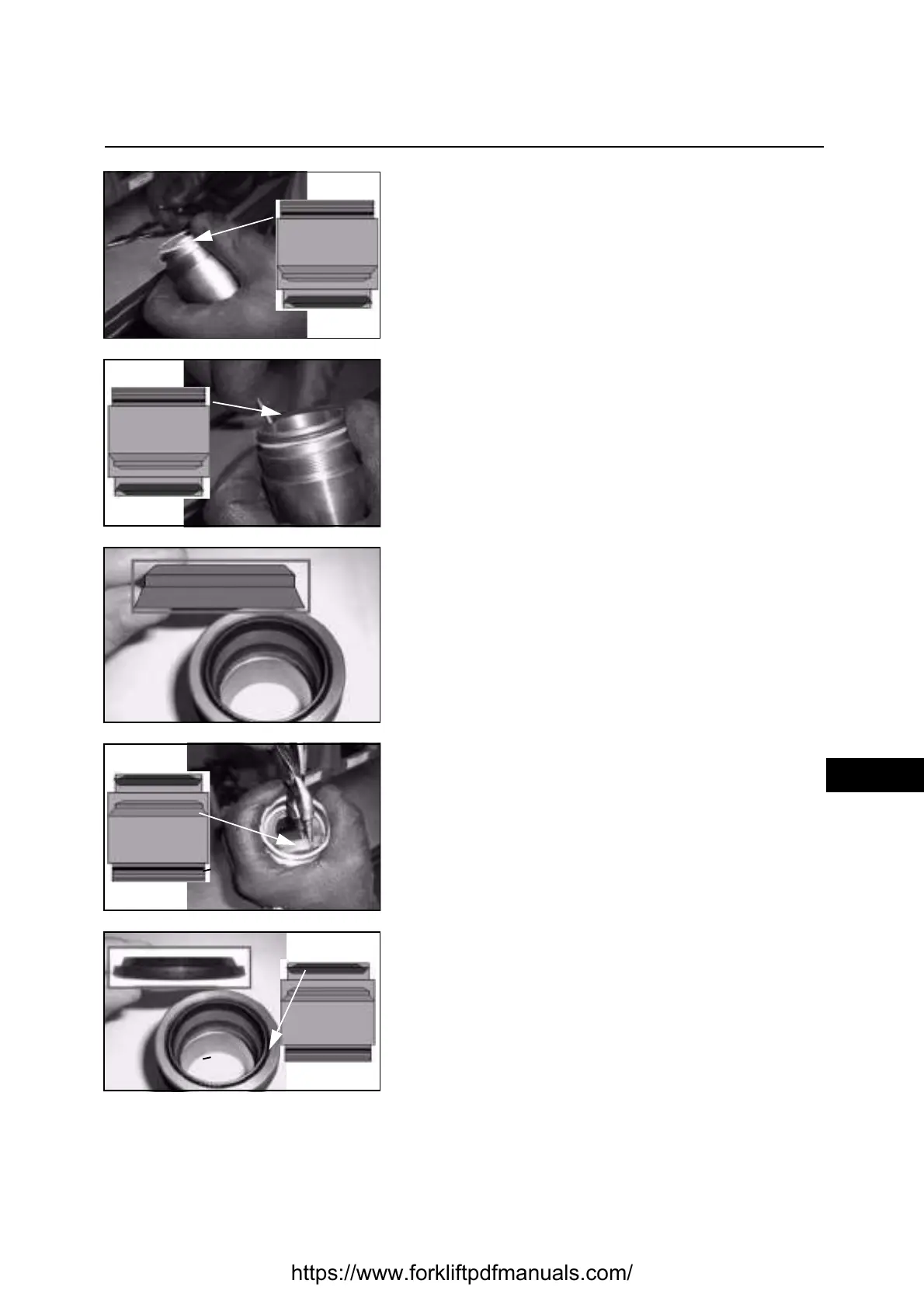

Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
Installation:
Lubricate the o-ring with hydraulic oil before mounting in
order to facilitate its positioning
Remarks:
Check that the o-ring is correctly in its seat and is not
damaged or twisted
Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
Installation:
Clean the housing seats with compressed air; lubricate
the gasket with hydraulic oil before installation and twist
slightly when inserting
Remarks:
Check that the gasket is correctly in its seat and is not
damaged or twisted. Gaskets may be more elastic if
heated to a max. temperature of 50°C
Installation:
Clean the housing seats with compressed air; lubricate
the scraper with hydraulic oil before installation to
facilitate positioning
Remarks:
Check that the scraper is correctly in its seat and is not
damaged or twisted Gaskets may be more elastic if
heated to a max. temperature of 50°C
