12-29
0
1
2
3
4
5
6
7
8
9
10
12
12
12
12
15
16
16
18

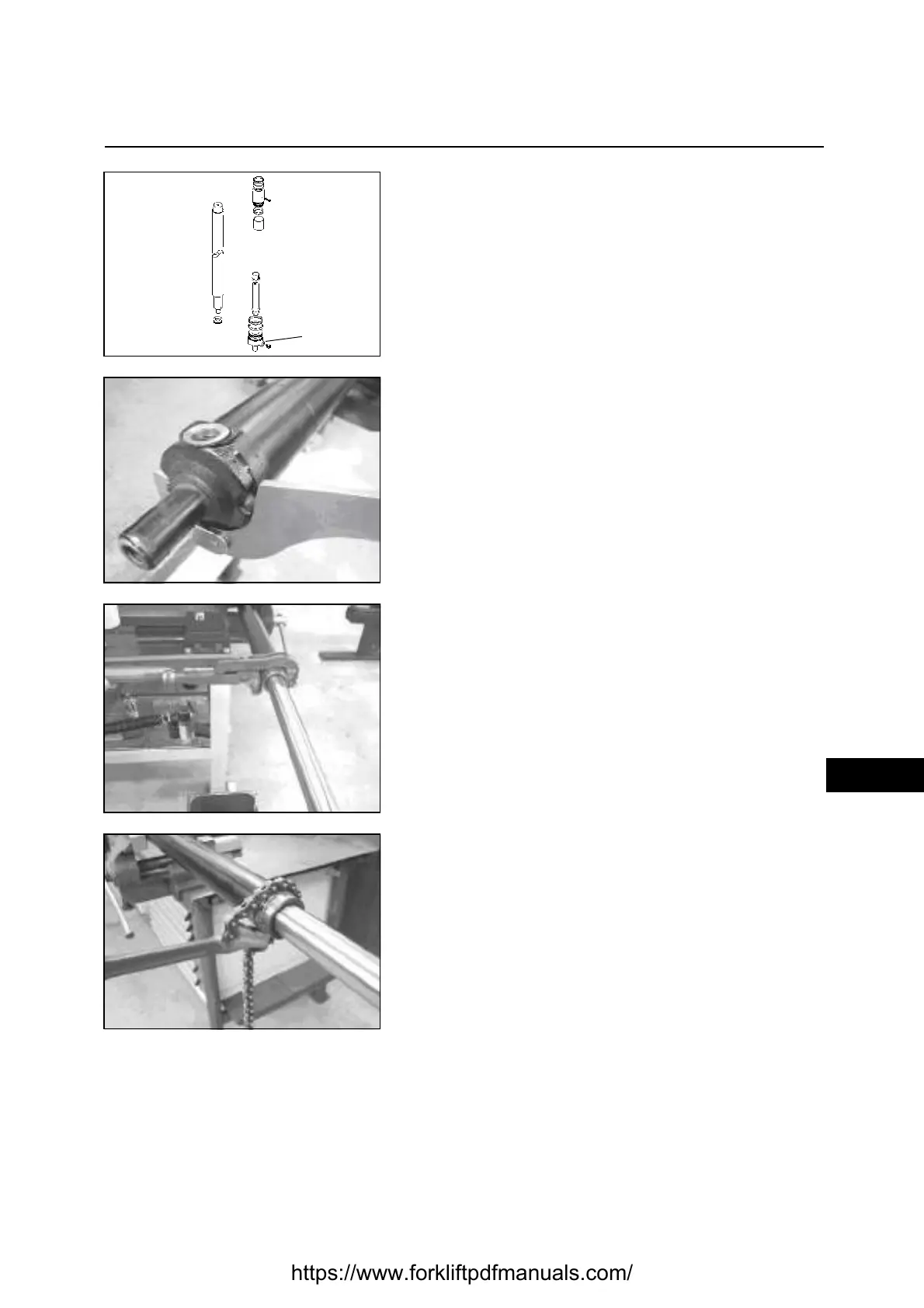

[Point 2]
Disassembly:
Use compressed air in point (A) to remove the rod
Remarks:
Prevent the rod from coming into contact with other
parts
[Point 3]
Disassembly:
Lock the bottom as shown in figure
[Point 4]
Disassembly:
Unscrew the bushing as shown in figure
Installation:
Touch up the cover (if damaged during removal) with
paint, without contaminating the rod
Removal (if the previous one is not available):
Unscrew the bushing as shown in figure
Installation:
Touch up the cover (if damaged during removal) with
paint, without contaminating the rod
