14-5
14

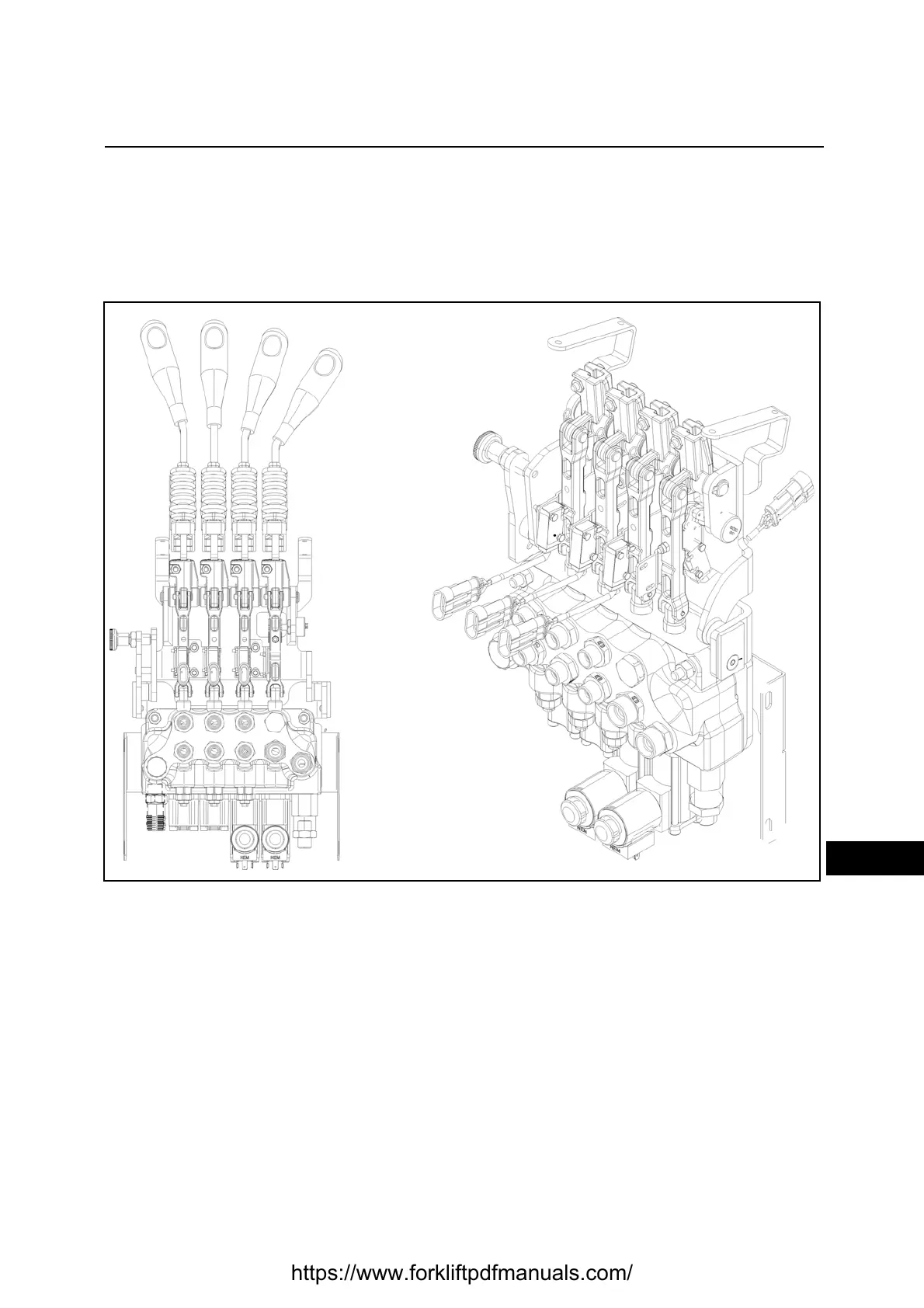

MECHANICAL CONTROL VALVE
DISASSEMBLY • REASSEMBLY
Notes:
Operate the control lever to bring the mast and fork to the vertical and lowermost positions,
respectively, to release the residual pressure in the material handling system before starting
removal.
Disassembly Procedure
1. Disconnect the battery plug
2. Remove footboard, lateral plastic cover and tilt forward the control valve cover
3. Disconnect the pipes and the wirings
4. Remove the pin set from control valve and lever [Point 1]
5. Remove the control valve
Installation Procedure
The reassembly procedure is the reverse of the disassembly procedure.
Notes:
• Adjust the limit switch after installing the oil control valve (See [Point 1])
• Apply grease to all oil control valve lever linkages
• Check the hydraulic oil level, and add if insufficient
