E
ALARMS

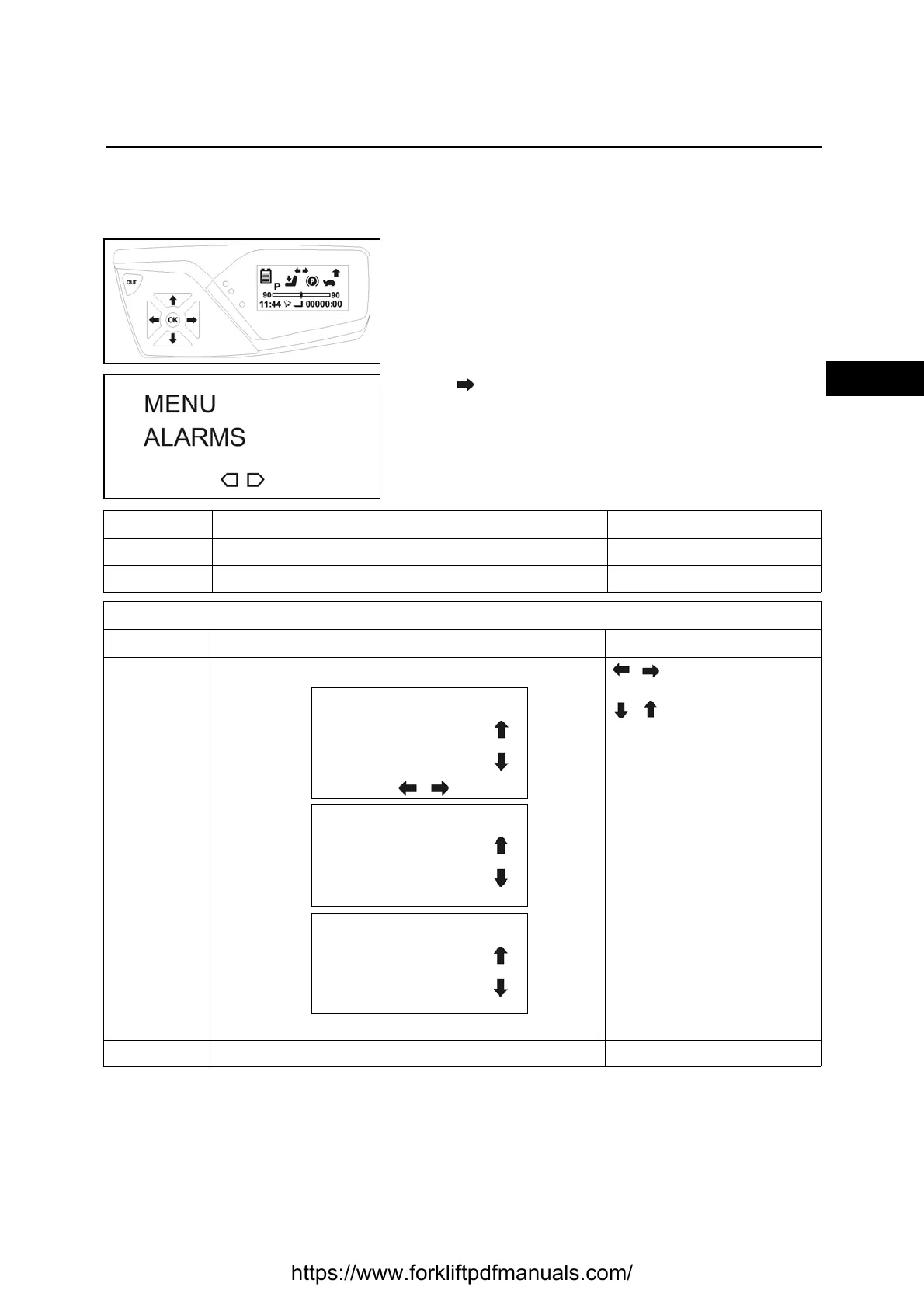

The alarms function is used to view the error codes present on the truck in real time and the last 20 errors
memorized in the display
Enter the service menu
[see SERVICE MENU PASSWORD INSERTION
PROCEDURE paragraph]
Press till reach the ALARMS menu
Press OK to confirm
Use right and left arrows board buttons to navigate the menu
Press OUT to exit the menu
Function Description Notes
REALTIME This function visualizes alarms in real time See diagnostic code list
LOGBOOK Used to view/delete the alarms in the memory See diagnostic code list
LOGBOOK
Function Description Notes
READ
This function visualizes last 20 alarms saved
to move to the follow-
ing error code
to move to the next
screen linked to the same error
code
Code = error code
N = order in memory (from 1 to
20)
WH = pump working hours
BATT = charge percentage
PIN = operator pin code
T DRV TMP = traction control
unit temperature
T MOT TMP = drive motor
temperature
P DRV TMP = pump control
unit temperature
P MOT TMP = pump motor
temperature
CLEAR This function deletes alarm list
CODE YY
N X WH XX
BATT % XX
PIN XXXXX
CODE YY
TM DRV TMP + XX C
CODE YY
P DRV TMP + XX C
P MOT TMP + XX C
TM MOT TMP + XX C
