OVERHEAD GUARD
DISASSEMBLY • REASSEMBLY

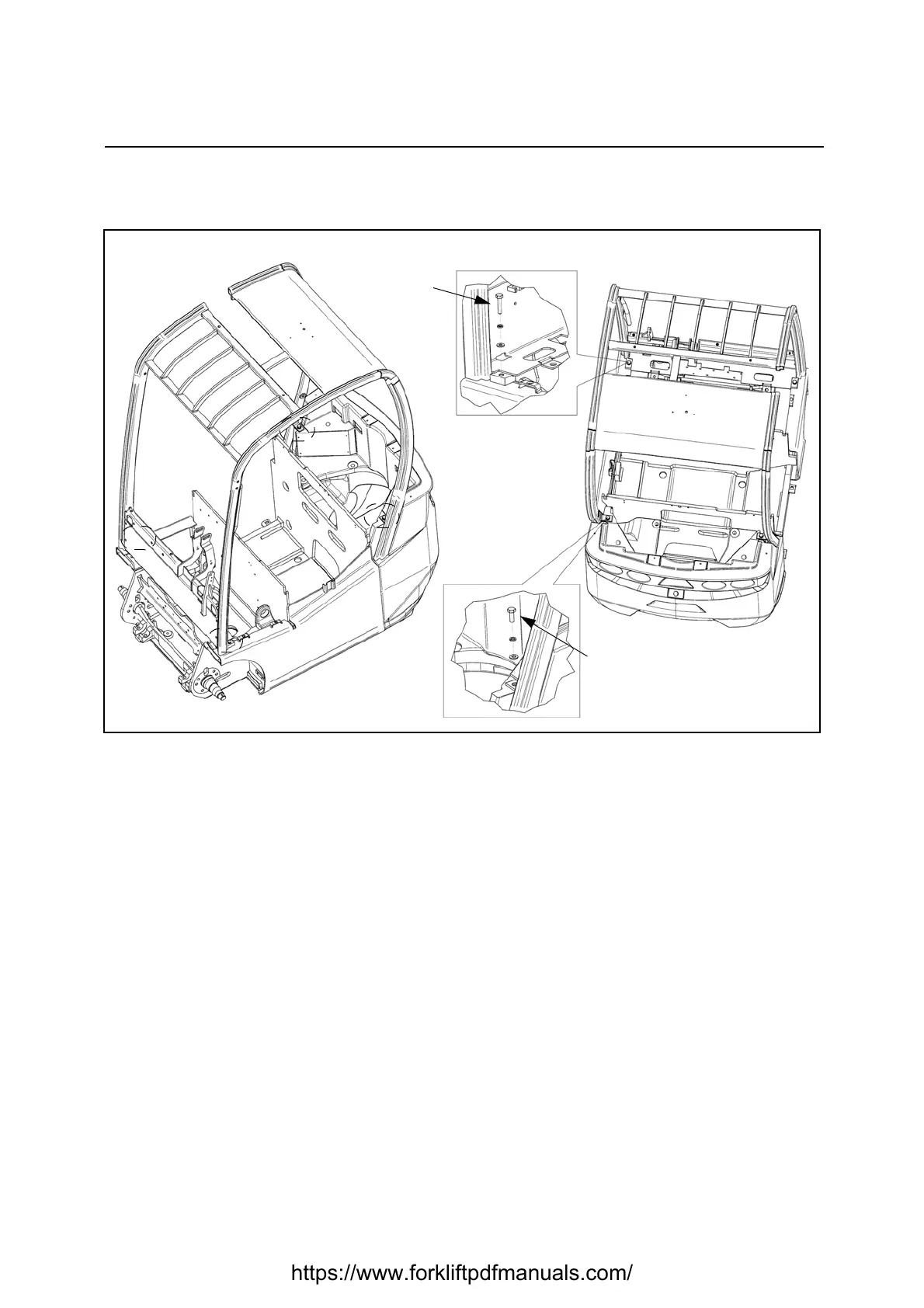

Disassembly Procedure
1. Open the battery cover
2. Disconnect the battery plug
3. Remove the battery cover
4. Disconnect light wires on the overhead guard, if present
5. Secure the overhead guard using belts and a bridge crane
6. Remove the overhead guard
Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
Tightening torque of the 4 bolts of the overhead guard = 49 Nm
49 Nm (± 15%)
49 Nm (±15%)
