10-8
HYDRAULIC OIL AND FILTER
DISASSEMBLY • REASSEMBLY
Disassembly Procedure
1. Place and stop the truck on a flat surface, with the mast in vertical position and the forks lowered
2. Disconnect the battery plug
3. Remove the foot board
4. Remove the tank cap (A)
5. Remove the oil filter cartridge (B) [Point 1]
6. Check and clean the tank breather valve (C)
7. Replace the oil
8. Replace the oil filter cartridge
Reassembly Procedure
The disassembly procedure is the reverse of the reassembly procedure.
Notes:
Check the state of the seals and that there are no oil leaks.
Check the oil level in the tank using the dip-stick (D) with the mast in vertical position and the forks
lowered

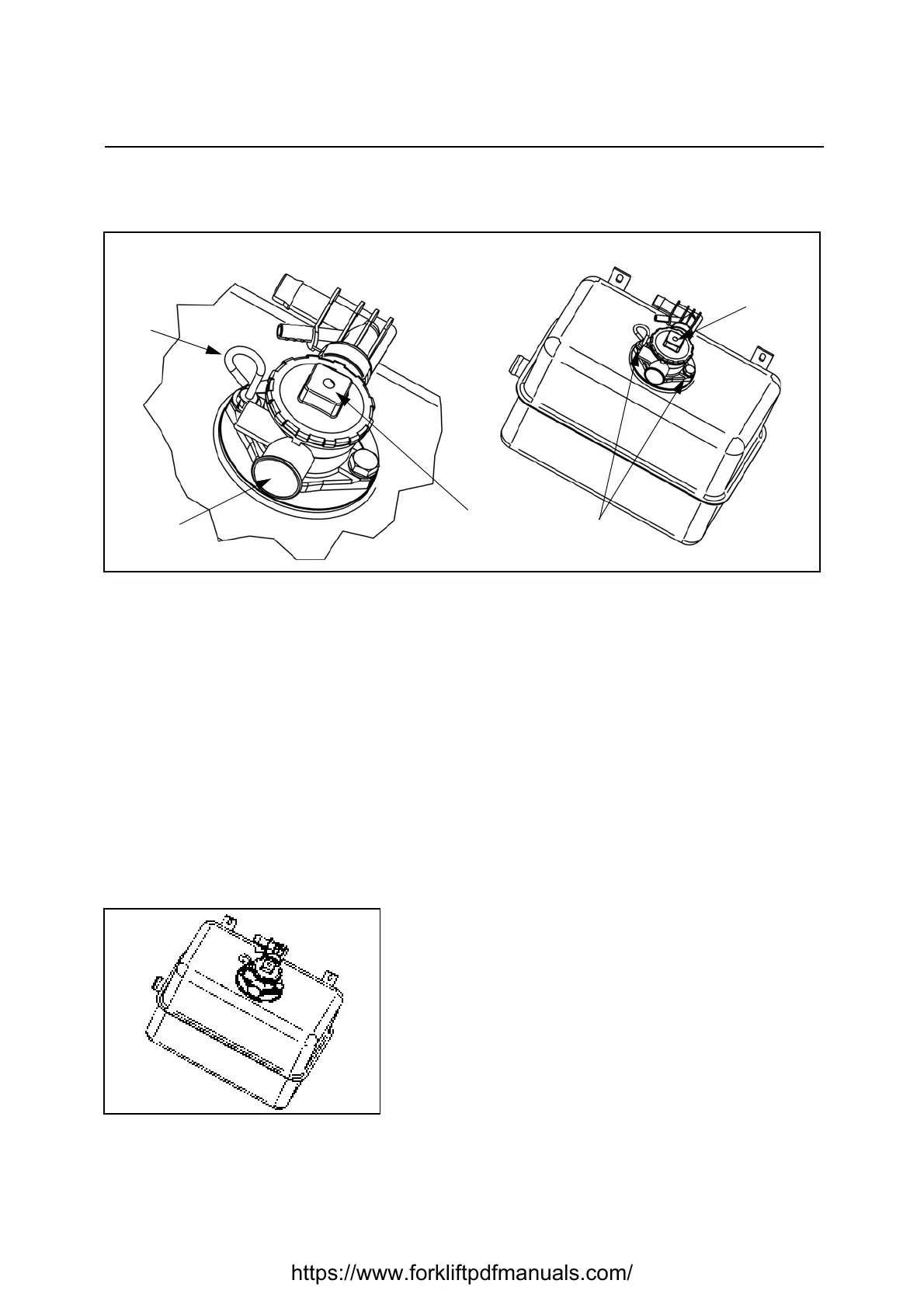

Notes:
With the double foot pedal and hand direction lever
(single pedal) the hydraulic oil filter is on the middle
position of the tank (see drawing)
A, B
D
C
11 Nm (± 10%)
35 Nm (± 5%)
Tightening torque M =Nm
