CESAB B 215 - Page 313

11-25
0
1
2
3
4
5
6
7
8
9
11
11
11
14
14
15
16
16
18

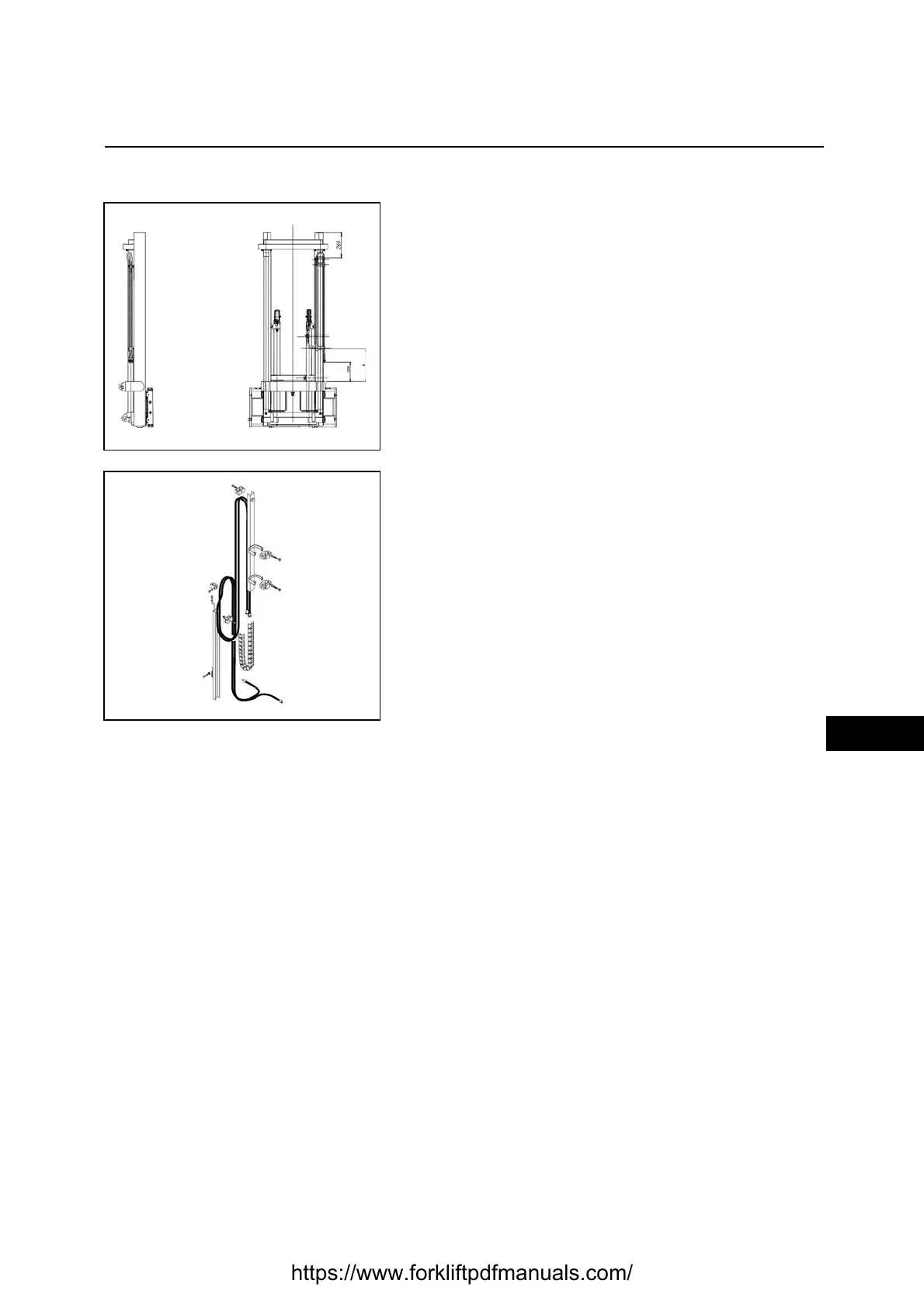

Point Operation
[Point 1]
Installation:
X = 245 mm (mast height = 2905);
X = 270 mm (mast height = 3005);
X = 315 mm (mast height = 3205);
X = 345 mm (mast height = 3305);
X = 395 mm (mast height = 3505);
X = 440 mm (mast height = 3705);
X = 520 mm (mast height = 4005)
[Point 2]
Installation:
Prevent the pipes from rotating on their axis when
raising/lowering
Important:
Prevent any pipes kept under pressure from causing
a hazard during raising/lowering
