Cessna 150G - Instrument Panel

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20
1.
Altimeter
13.
Oil Pressure Gage
25.
Mixture Control Knob
2.
Airspeed Indicator
14. Oil Temperature Gage
26.
Throttle
3.
Turn-and-Dank Indicator (Opt.)
15.
Ammeter
27.
Elevator Trim Control Whee
4.
Directional Gyro (Opt.)
16.
Fuel Quantity Indicator (Right)
28.
Electrical Switches
5. Vertical Speed Indicator (Opt.)
17.
Optional Instrument Space
29.
Carburetor Air Heat Control
6.
Gyro Horizon (Opt.)
18. Suction Gage (Opt.)
30.
Omni Course Indicator (Opt.
7.
Compass Correction Card
19.
Optional Instrument Space
31.
Parking Brake Control
8.
Optional Radio
20.
Map Compartment
32.
Clock
9.
Magnetic Compass
21.
Fuse/Circuit Breaker Panel
33.
Ignition Switch
0. Fuel Quantity Indicator (Left)
22.
Cigar Lighter
34.
Starter Handle
1.
Aircraft Registration Number 23.
Cabin Air and Heat Controls
35.
Primer
2.
Tachometer
24. Wing Flap Switch
36.
Master Switch

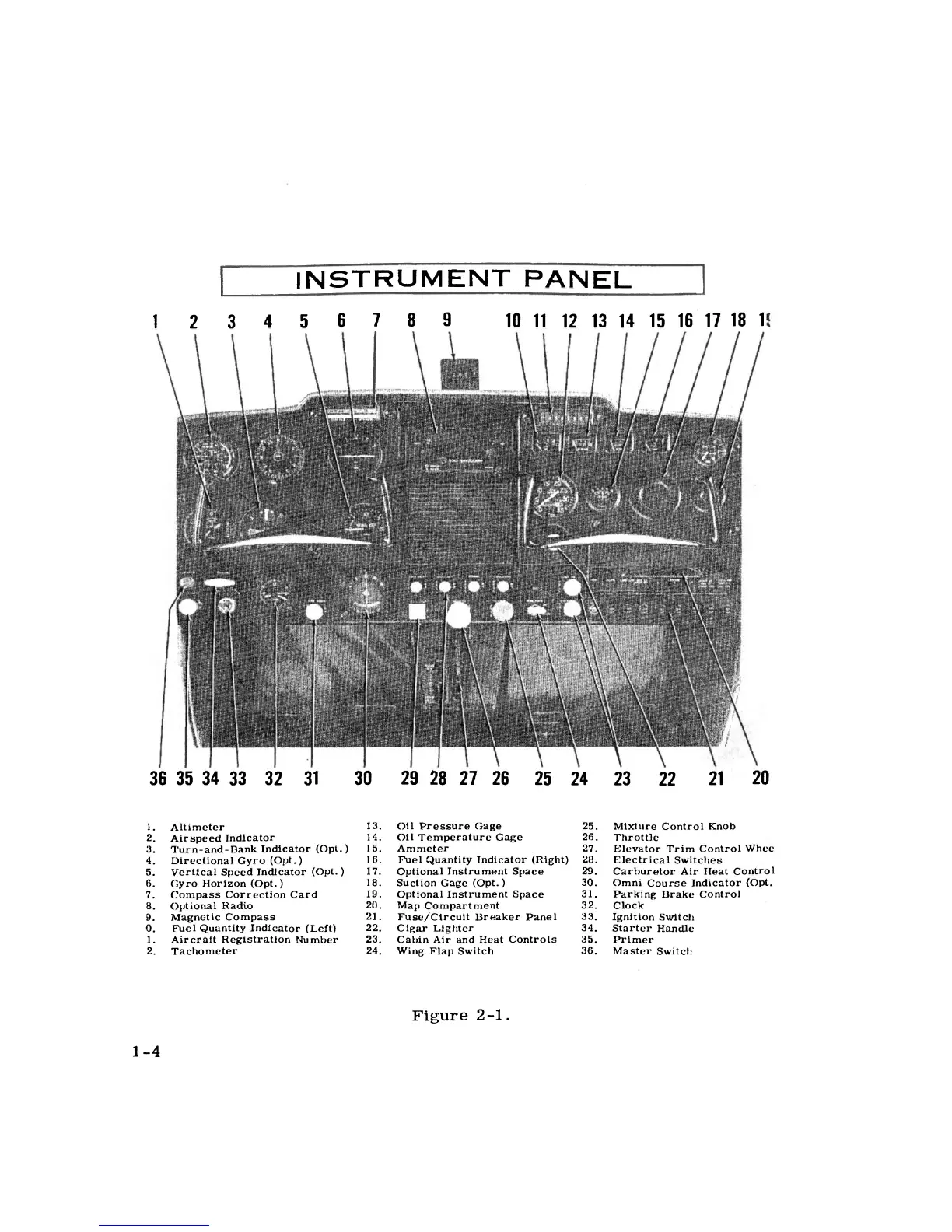

Figure 2-1.
1-4
INSTRUMENT PANEL
