Cessna 150G - Servicing Requirements

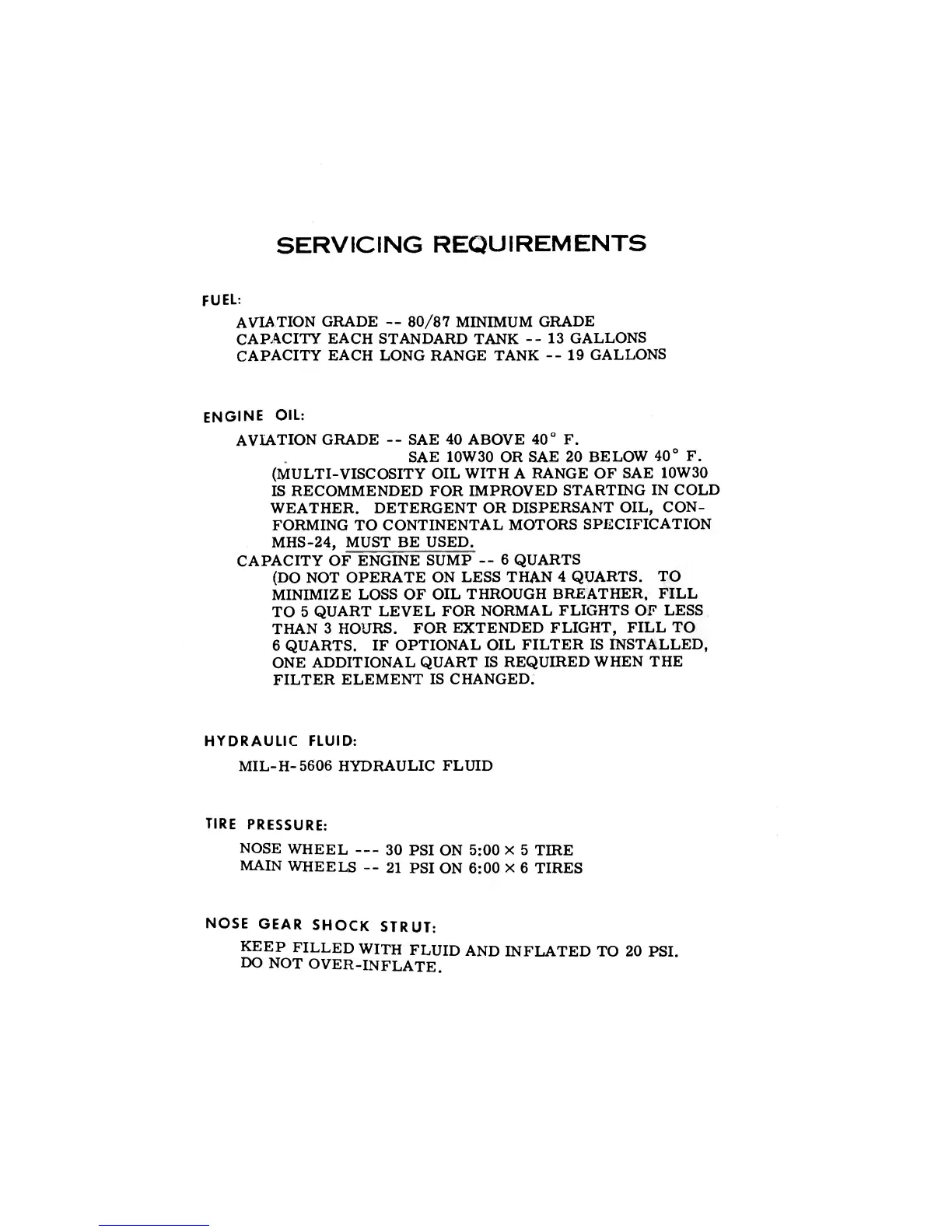

SERVICING REQUIREMENTS
FUEL:
AVIATION GRADE — 80/87 MINIMUM GRADE
CAPACITY EACH STANDARD TANK --13 GALLONS
CAPACITY EACH LONG RANGE TANK --19 GALLONS
ENGINE OIL:
AVIATION GRADE -- SAE 40 ABOVE 40° F.
SAE 10W30 OR SAE 20 BELOW 40° F.
(MULTI-VISCOSITY OIL WITH A RANGE OF SAE 10W30
IS RECOMMENDED FOR IMPROVED STARTING IN COLD
WEATHER. DETERGENT OR DISPERSANT OIL, CON-
FORMING TO CONTINENTAL MOTORS SPECIFICATION
MHS-24, MUST BE USED.
CAPACITY OF ENGINE SUMP --6 QUARTS
(DO NOT OPERATE ON LESS THAN 4 QUARTS. TO
MINIMIZE LOSS OF OIL THROUGH BREATHER, FILL
TO 5 QUART LEVEL FOR NORMAL FLIGHTS OF LESS
THAN 3 HOURS. FOR EXTENDED FLIGHT, FILL TO
6 QUARTS. IF OPTIONAL OIL FILTER IS INSTALLED,
ONE ADDITIONAL QUART IS REQUIRED WHEN THE
FILTER ELEMENT IS CHANGED.
HYDRAULIC FLUID:
MIL-H- 5606 HYDRAULIC FLUID
TIRE PRESSURE:
NOSE WHEEL — 30 PSI ON 5:00 X 5 TIRE
MAIN WHEELS --21 PSI ON 6:00 X 6 TIRES
NOSE GEAR SHOCK STRUT:
KEEP FILLED WITH FLUID AND INFLATED TO 20 PSI.
DO NOT OVER-INFLATE.
