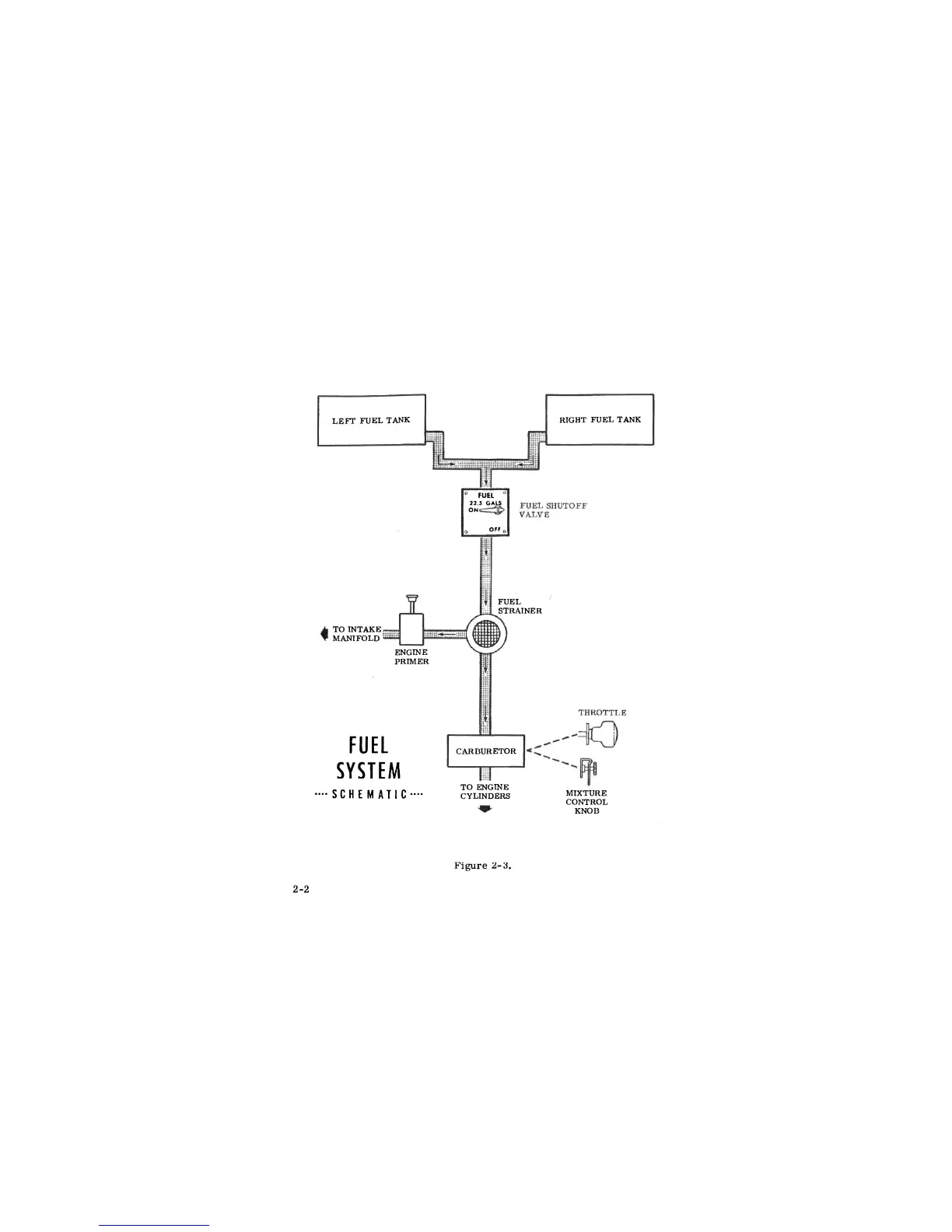

Figure 2-3.
-•SCHEMATIC —
FUEL
SYSTEM
CARBURETOR
TO ENGINE
CYLINDERS
MIXTURE
CONTROL
KNOB
ENGINE
PRIMER
TO INTAKE
MANIFOLD
FUEL
STRAINER
ON
OFF
22.5 GALS
FUEL
RIGHT FUEL TANK
LEFT FUEL TANK
