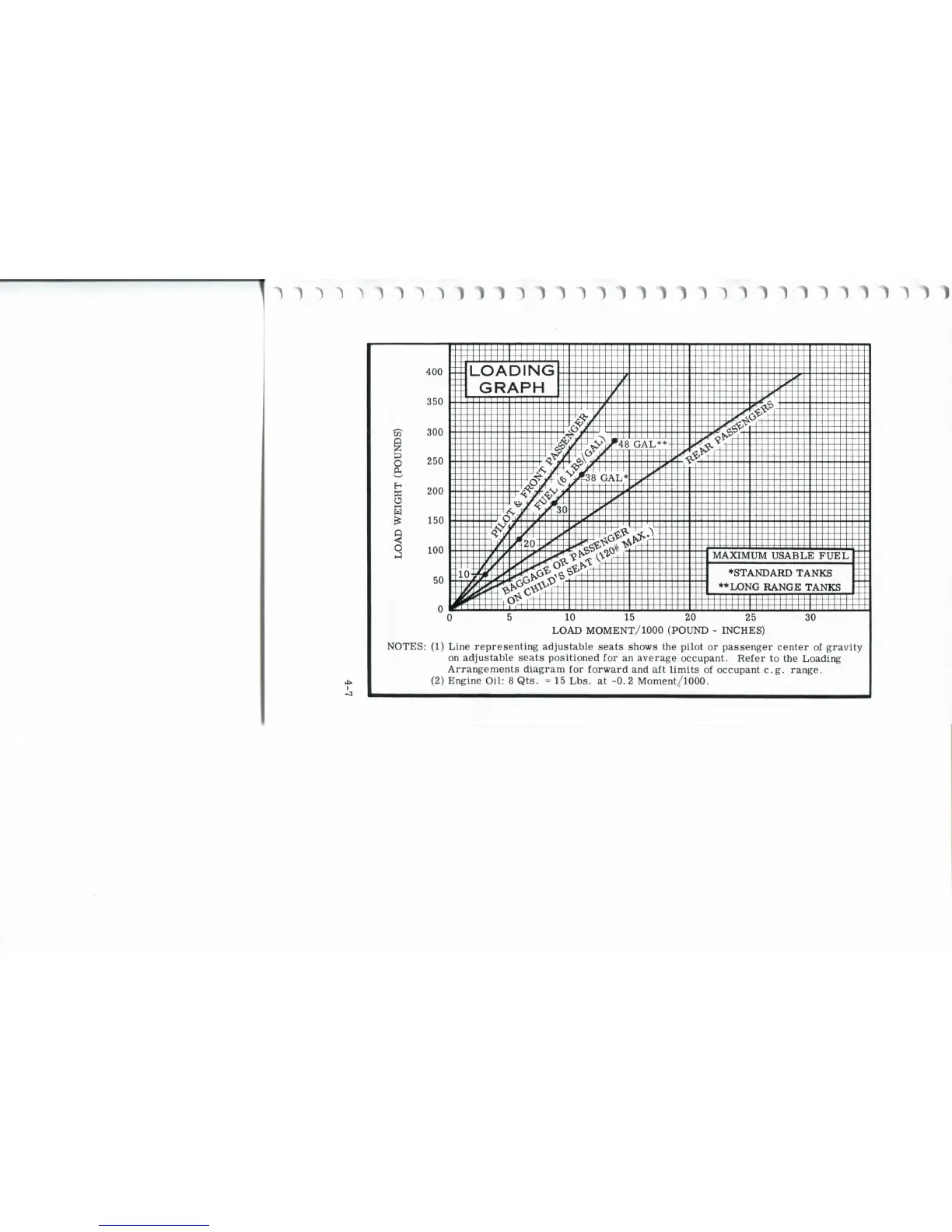

Cessna 1973 172 - Loading Graph

1^1)
0
10 15 20 25
LOAD MOMENT/1000 (POUND - INCHES)
30
NOTES: (1) Line representing adjustable seats shows the pilot or passenger center of gravity
on adjustable seats positioned for an average occupant. Refer to the Loading
Arrangements diagram for forward and aft limits of occupant e.g. range.
(2) Engine Oil: 8 Qts. = 15 Lbs. at -0.2 Moment/1000.
