MODEL 188
& T188 SERIES
SERVICE
MANUAL

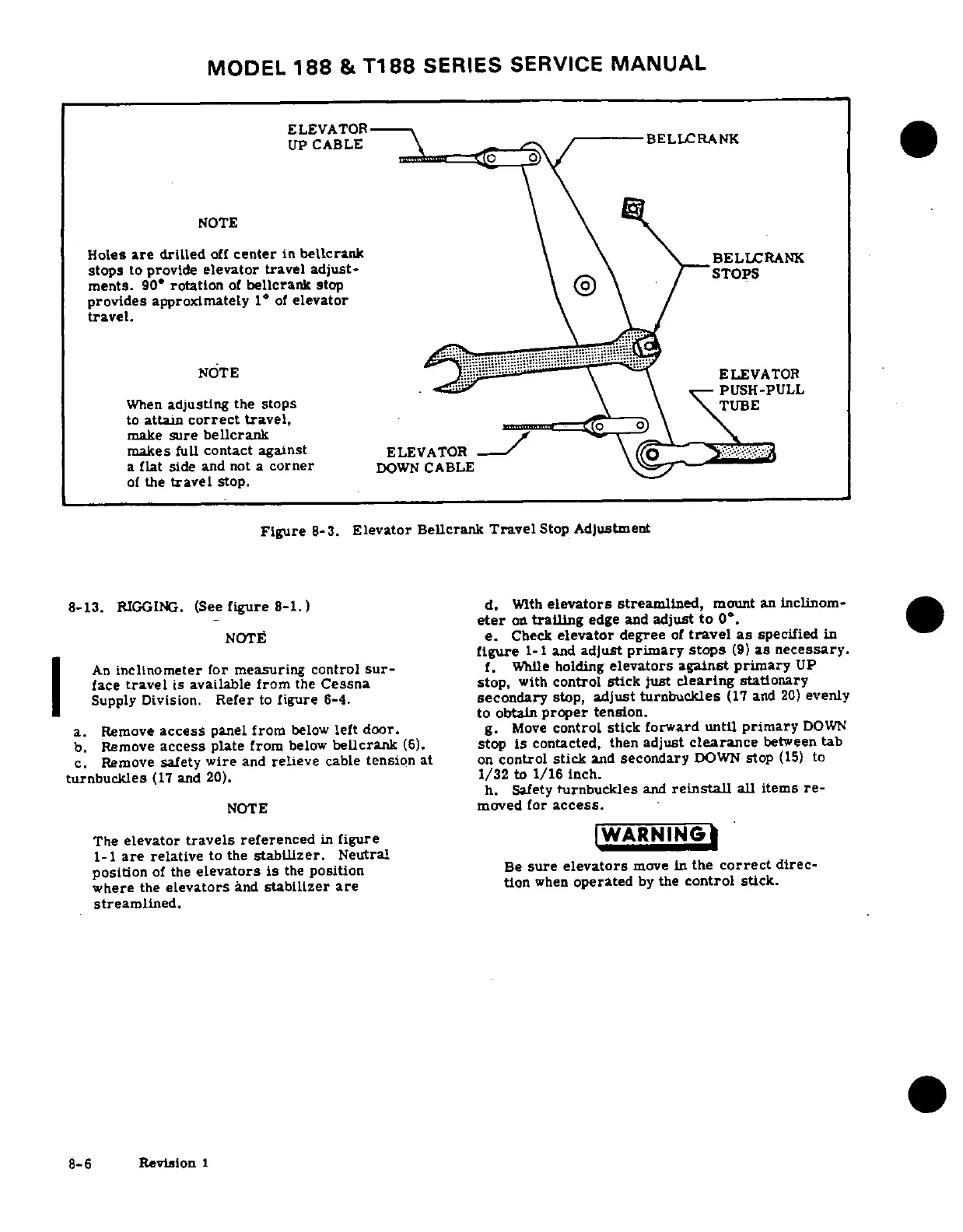

ELEVATOR
UP CABLE
BELLCRANK
NOTE
Holes are drilled off center in bellcrank
8-13.
RIGGING. (See
figure 8-1.)
d. With
elevators streamlined,
mount
an inclinom-
eter
on trailing
edge and
adjust
to 0.
NOTE
e. Check elevator degree
of travel as specified
in
figure 1-1 and adjust primary stops (9) as necessary.
An inclinometer
for measuring
control
sur-
f. While
holding
elevators
against primary
UP
face travel
is available
from the Cessna
stop, with
control stick
just clearing
stationary
Supply
Division.
Refer
to figure
6-4.
secondary
stop, adjust
turnbuckles
(17
and 20) evenly
to obtain proper tension.
a. Remove
access panel
from below left
door.
g. Move control
stick forward
until primary
DOWN
b. Remove
access plate
from below
bellcrank (6).
stop is
contacted, then
adjust clearance
between tab
c. Remove safety
wire and relieve cable tension
at on control stick and
secondary DOWN stop (15)
to
turnbuckles
(17 and 20).
1/32 to 1/16
inch.
h. Safety turnbuckles and reinstall all items re-
NOTE
moved for access.
The
elevator travels referenced
in figure
WARNING
1-1 are relative to the stabilizer. Neutral
position
of
the elevators
is the
position
Be sure elevators
move
in the
correct
direc-
where
the elevators
and stabilizer
are
tion when operated
by the control
stick.
streamlined.
8-6 Revision 1
