1. Position
stop block (2) against
turnbuckle and
secure to cable
B.
2. Position
stop block (4)
against clevis and
secure to cable A.
3. With elevators
neutral, set trim
tab to neutral (streamlined).
4. Place
inclinometer
on trim tab
and lower
to degree
specified
in figure 1-1.
5. Position
stop block
(1) against
stop
block (2)
and secure
to cable
A.
6. Raise
tab to degree specified
in figure 1-1, then
position stop block (3)
against
stop
block (4)
and secure
to cable
B.
WARNING
Be
sure when pointer
indicates NOSE DOWN,
that trim tab
is in UP
position and
with NOSE
UP indication,
trim tab
is in DOWN
position.

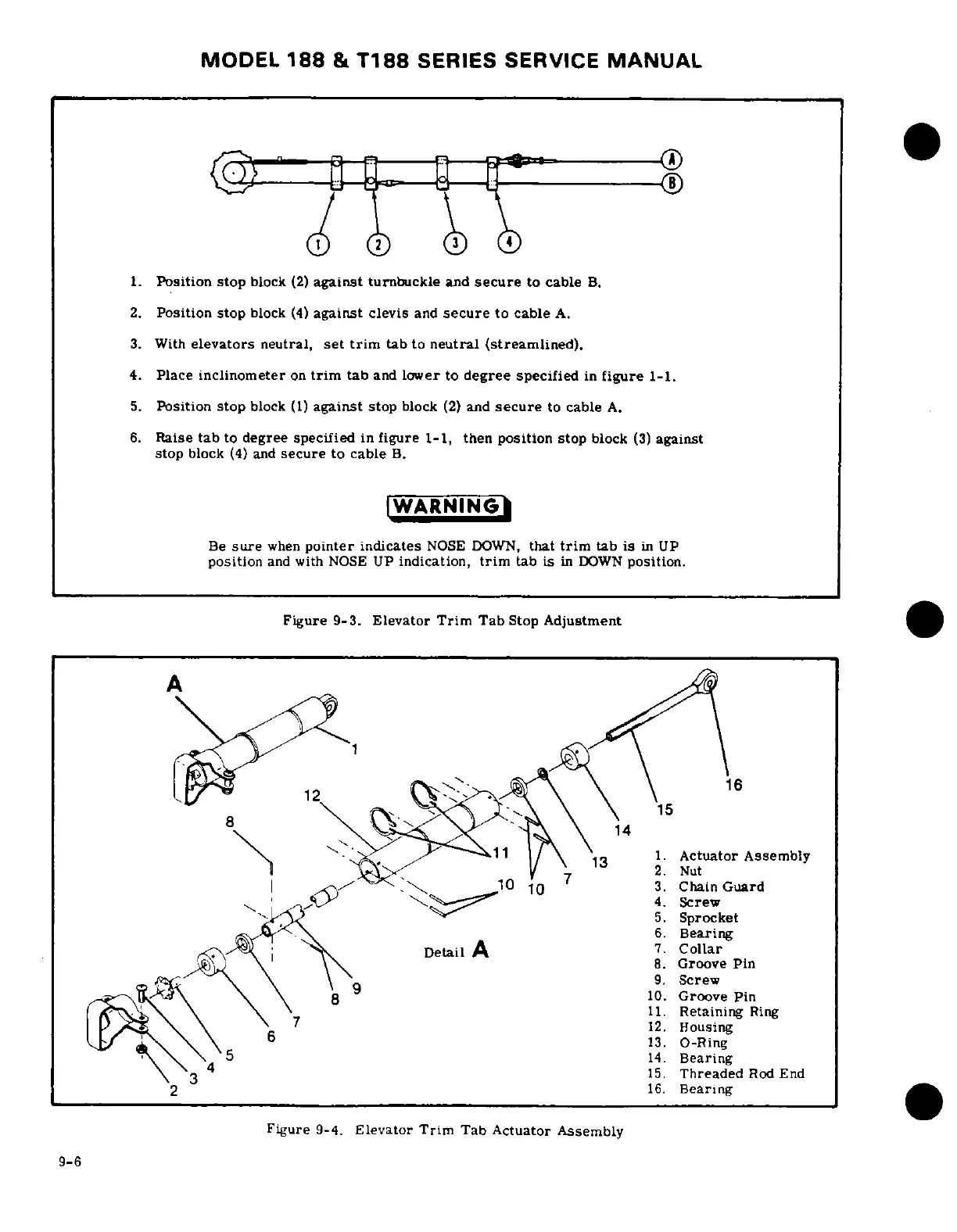

Figure
9-3. Elevator
Trim Tab
Stop Adjustment
