MODEL 188 & T188 SERIES SERVICE MANUAL
PRINCIPAL DIMENSIONS
Wing Span
(6
°
Dihedral) .................
484. 50"
Wing Span (9
°
Dihedral) ................. 497.20"
Tail Span ....................... 131. 93"
Length (Fixed-Pitch
Propeller)
.............
306. 30"
Length
(Constant-Speed
Propeller) ....
........
308. 41"
Length (Constant-Speed
Propeller with
Spinner) ...
. 315. 00"
Fin
Height (Less Flashing
Beacon on Fin) .........
None
Given
Fin Height
(With Cable Deflector
on Fin) ..........
96.
05"
Track Width .............. .... . ... . 88. 38"
Wing Span
(Turbo - Modified
Conical Tips) .......
. 484.
40"
Wing Span
(Turbo - High Performance
Conical Tips)
.. .. 497. 20"
Length
(Turbo) .....................
326.
53"
Tail (Turbo)
......................
132.
00"
Fin Height (Turbo)
...................
98. 00"
Track Width (Turbo)
...................
85. 00"
BATTERY
LOCATION ...................
RH Forward Baggage Compartment
BATTERY LOCATION (Turbo)
................
Tailcone,
behind pilot's seat
* When not modified by Cessna Single-Engine Service Letter SE75-7 and prior to 18801347.
* When modified by Cessna Single-Engine Service Letter SE75-7 and beginning with 18801347.

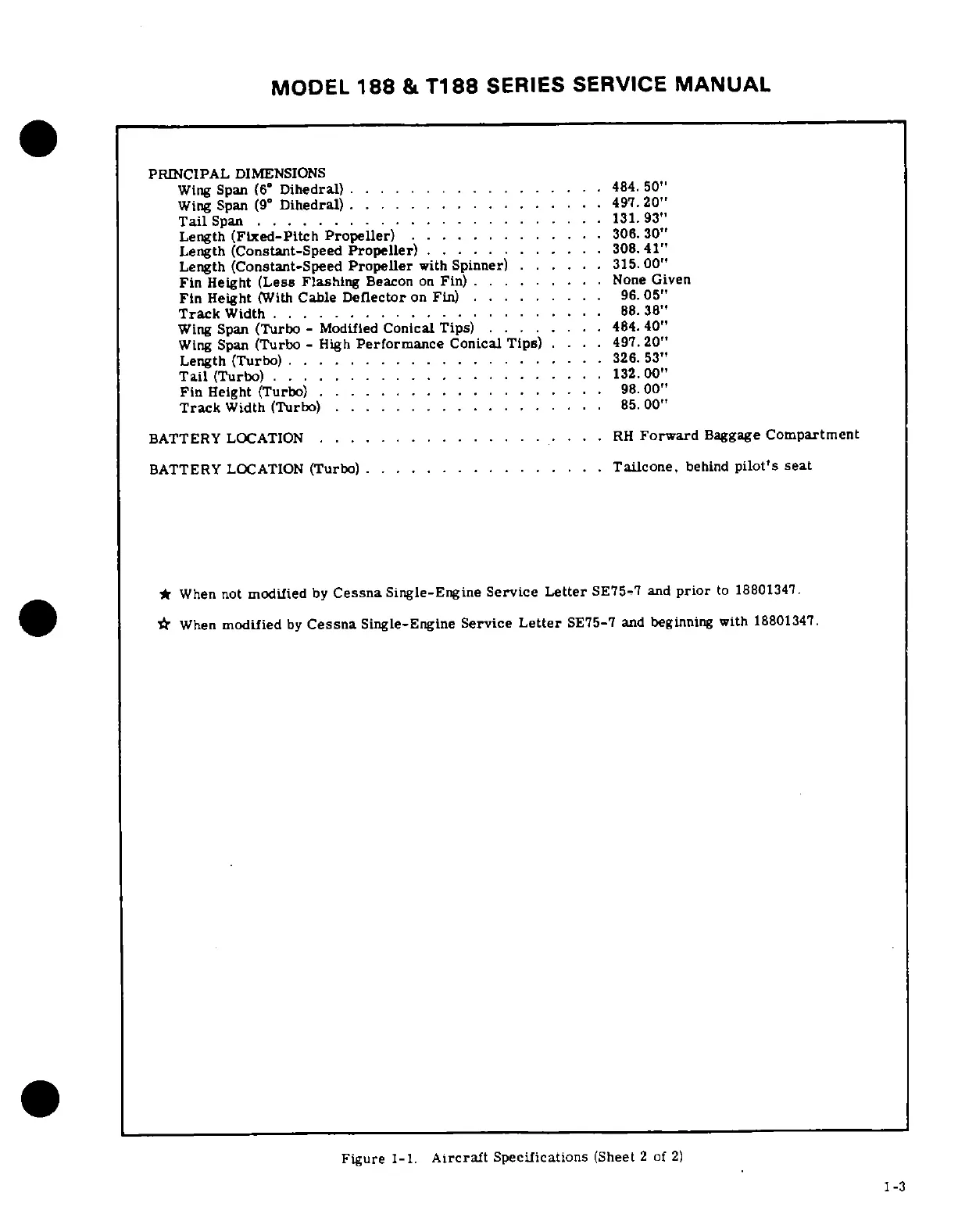

Figure 1-1. Aircraft Specifications (Sheet 2 of 2)
1-3
