MODEL
188 &
T188 SERIES
SERVICE MANUAL

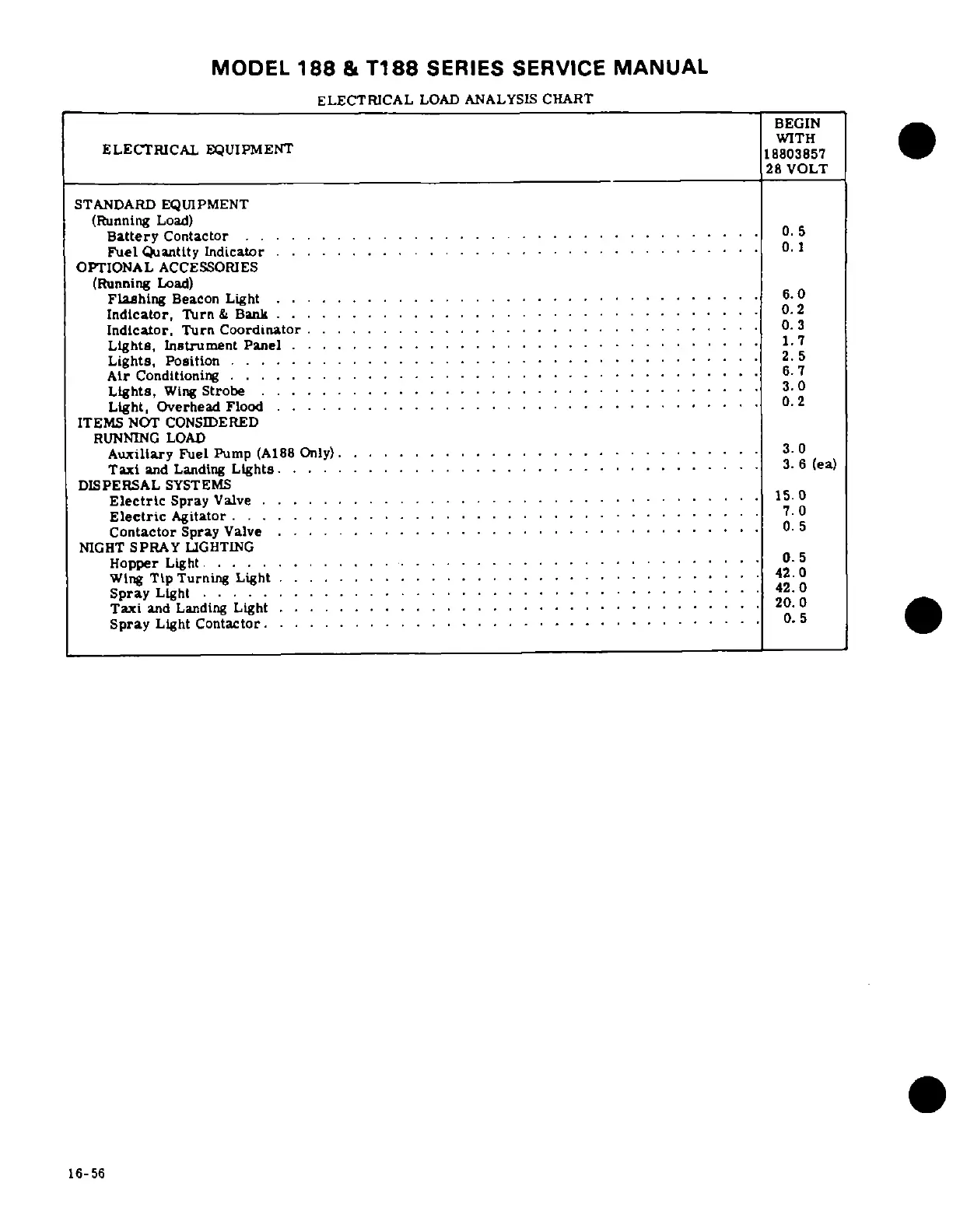

ELECTRICAL LOAD ANALYSIS CHART
BEGIN
ELECTRICAL
EQUIPMENT
WITH
18803857
28 VOLT
STANDARD EQUIPMENT
(Running Load)
Battery Contactor . ... . .... . . . .. . . . ... .. . ...... .. 0.5
Fuel Quantity Indicator ........................ ................ 0.1
OPTIONAL ACCESSORIES
(Running
Load)
Flashing Beacon Light . . .. . ... . . ... . . . . . . .. . . . . .. . . 6.0
Indicator, Turn & Bank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2
Indicator, Turn Coordinator ........ .... .................. . 0.3
Lights, Instrument Panel ............. ................. . 1.7
Lights, Position ................................... . 2.5
Air Conditioning ............... . ..................... . 6.7.
Lights, W ing Strobe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3. 0
Light, Overhead Flood .................. ............. . 0.2
ITEMS
NOT
CONSIDERED
RUNNING
LOAD
Auxiliary Fuel Pump (A188 Only) .... ....................... 3.0
Taxi and Landing Lights ......... ....................... 3. 6 (ea)
DISPERSAL SYSTEMS
Electric Spray Valve ..... .. . ... .......................... 15.0
Electric Agitator ...................... ......... 7.0
Contactor Spray Valve .......... 0. ......... ............. . 0.5
NIGHT SPRAY LIGHTING
Hopper Light .................................... 0.5
Wing Tip Turning Light
. .... .. .. ..
.. . .. .. . . . .
.. .. . . .. . . 42.0
Spray Light ..
. . . ..............
. . . . .. . . . . . .
. . . . .. 42.0
Taxi and Landing
Light .........................
20.
0
Spray Light Contactor.
........
..............
.... ... . . 0.
5
