MODEL
188
&
T188
SERIES
SERVICE
MANUAL
STA.
=
STATION
LINE.
A
vertical
plane
which
is
perpendicular
to
water
line
planes
and
buttock
line
planes.
For
reference
purpose here.
zero
station
line
is
the
front
face
of
the
firewall.
Station
lines
are
given
in
inches
aft
(positive
number)
or
forward
(negative
number)
of
zero
station
line.
STATION
LINES
B.
L.
= BUTTOCK
LINE. A
plane
which
is
parallel
to
the
vertical
center
plane
of
the
aircraft.
Zero
buttock
line
is
the
vertical
plane
passing
through
the
centerline
of
the
aircraft.
Buttock
lines
are
given
in
inches
right
(R.
B.
L.)
or
left
(L.
B.
L.)
as
viewed
from
the
rear
of
the
aircraft.
R.B.L.
--
BUTTOCK
LINE
W.
L.
=
WATER
LINE.
A
plane
which
is
parallel
to
a
horizontal
plane.
Water
lines
are
given
in
inches
above
(positive
number)
or
below
(negative
number)
zero water
line.
Y\'
^
WATER
LINE
NOTE
These
definitions
apply
to
the
attach
points
shown
on
sheet
1
of
this
Illustration.

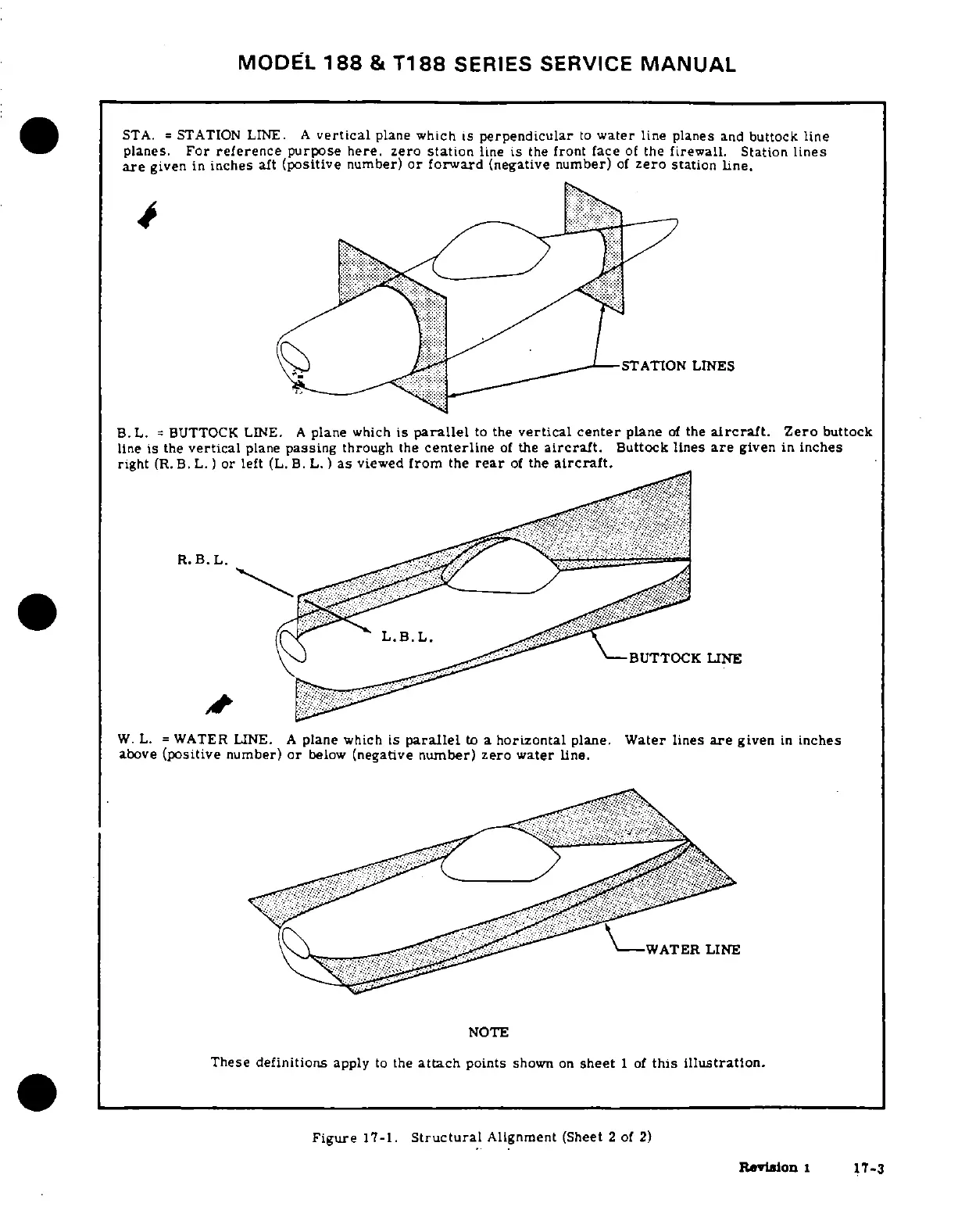

Figure
17-1.
Structural
Alignment
(Sheet
2
of
2)
Revision
1
17-3
