Cessna T188C - Page 393

MODEL
188
& T188
SERIES
SERVICE
MANUAL
NOTE
This illustration
shows
the complete
fuselage
tubular
structure assembly,
which
may be re-
placed
as a unit.
Refer to Sheets
3 thru 6
for
individual
tube
diameters
and wall
thicknesses.

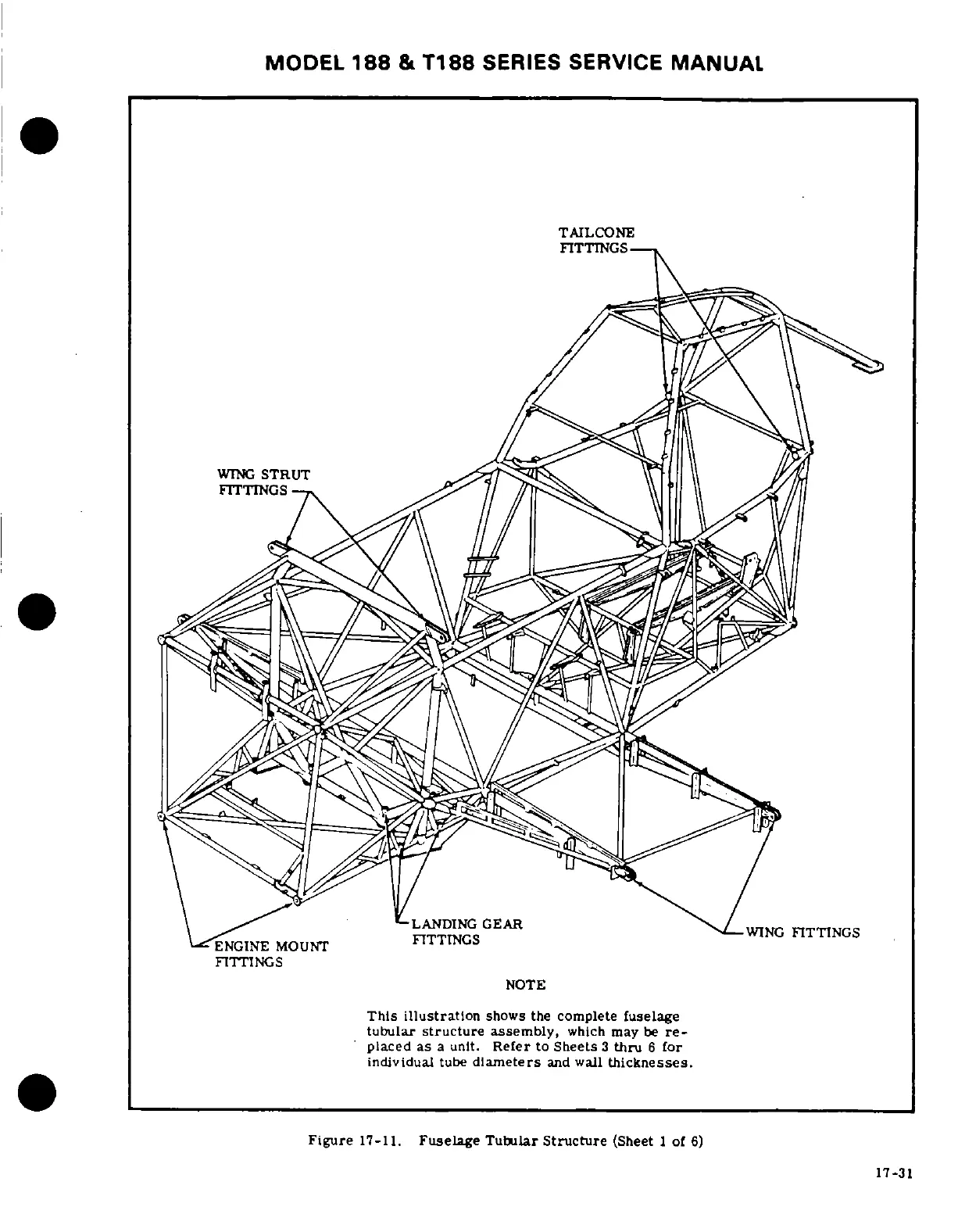

Figure
17-11.
Fuselage
Tubular
Structure
(Sheet
1 of 6)
17-31
