MODEL
188 &
T188 SERIES
SERVICE MANUAL
CLASS I CLASS U
TYPE 128 OR EQUIVALENT
(FINAL
LAMINATION
ONLY)
TYPE 128 OR EQUIVALENT
TYPE HG63 OR EQUIVALENT
FILL HONEYCOMB
WITH FILLER
MATERIAL
DAMAGED AREA MAT
CLASS mI CLASS IV
TYPE 128 OR
EQUIVALENT
TYPE
128 OR EQUIVALENT
(FINAL
LAMINATION
ONLY)
(FINAL
LAMINATION
ONLY)
TYPE
H63 OR EQUVALENT
PE
HG63
OR
EQUIVALENT
FILL HONEYCOMB
AND CAVITY WITH
FILLER
MATERIAL
AFTER REPAIRING
ANY DELAMINATION
ALUMINUM
PATCH
OF INNER SKIN
FILL CAVITY WITH
----
I
FILLER
MATERIAL
aY
,&^ AFTER
ALUMINUM
PATCH HAS BEEN
GLASS-FIBER
CLOTH
INSTALLED
HONEYCOMB CORE

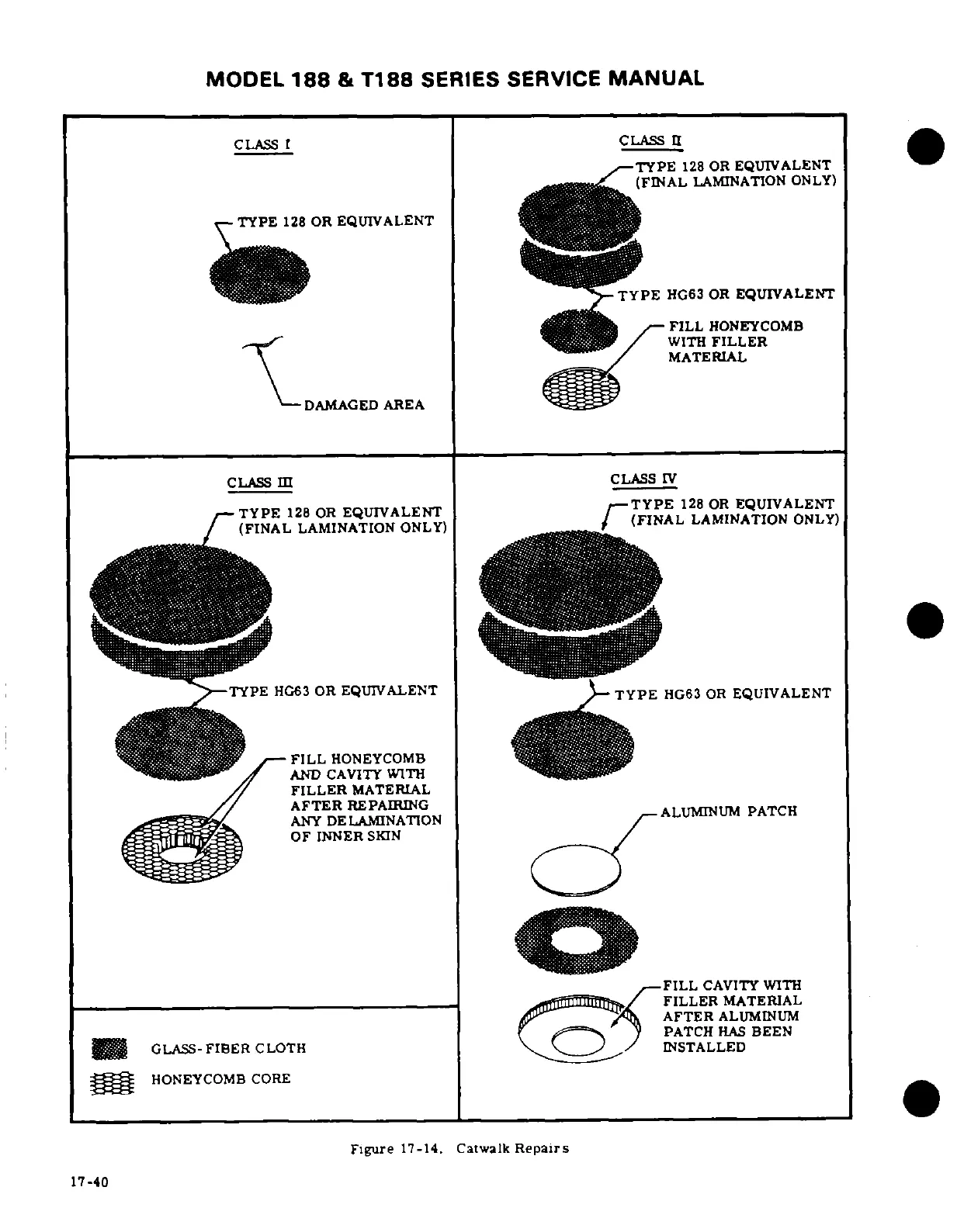

Figure 17-14. Catwalk Repairs
17-40
