Clutch Lever Freeplay
Check clutch lever smoothness�
Turn handlebar towards the left to the end�
Slowly pull the clutch lever until the resistance is evident� Check clutch lever position where the clearance
is for freeplay�
Free play: 0.19 in. ~ 0.39 in. (5 mm ~ 10 mm)
WARNING
If there is no freeplay for clutch lever, the clutch will start to slip�
Check lever freeplay every time before starting the engine�
Set the clutch lever freeplay when necessary�

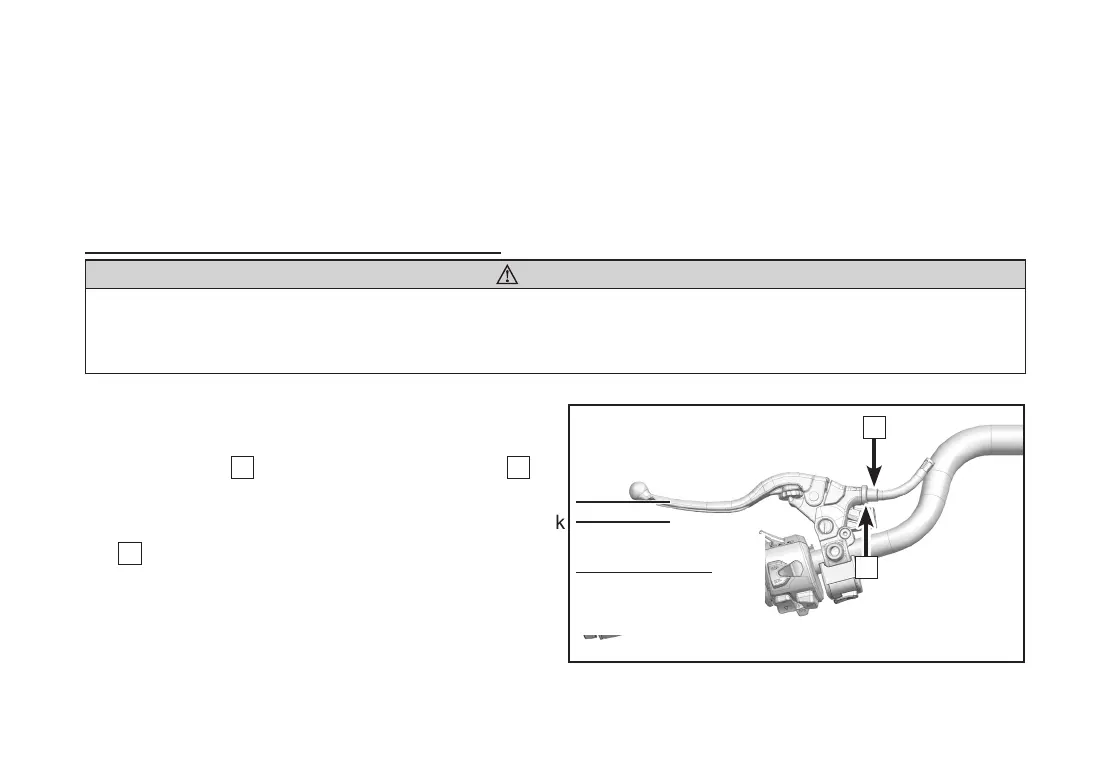

Clutch Lever Free Play Fine Adjustment
Turn handlebar towards the left to the end�
Loosen lock nut
1
and rotate the adjusting nut
2
for
adjustment�
Once the desired freeplay is achieved, tighten the lock
nut
1
�
1
2
0�19 in� ~ 0�39 in�
(5 mm ~ 10 mm)
