Front Shock Absorber Adjustment
The shock absorbers have been adjusted to the optimal position
at the factory, which is suitable for most situations�

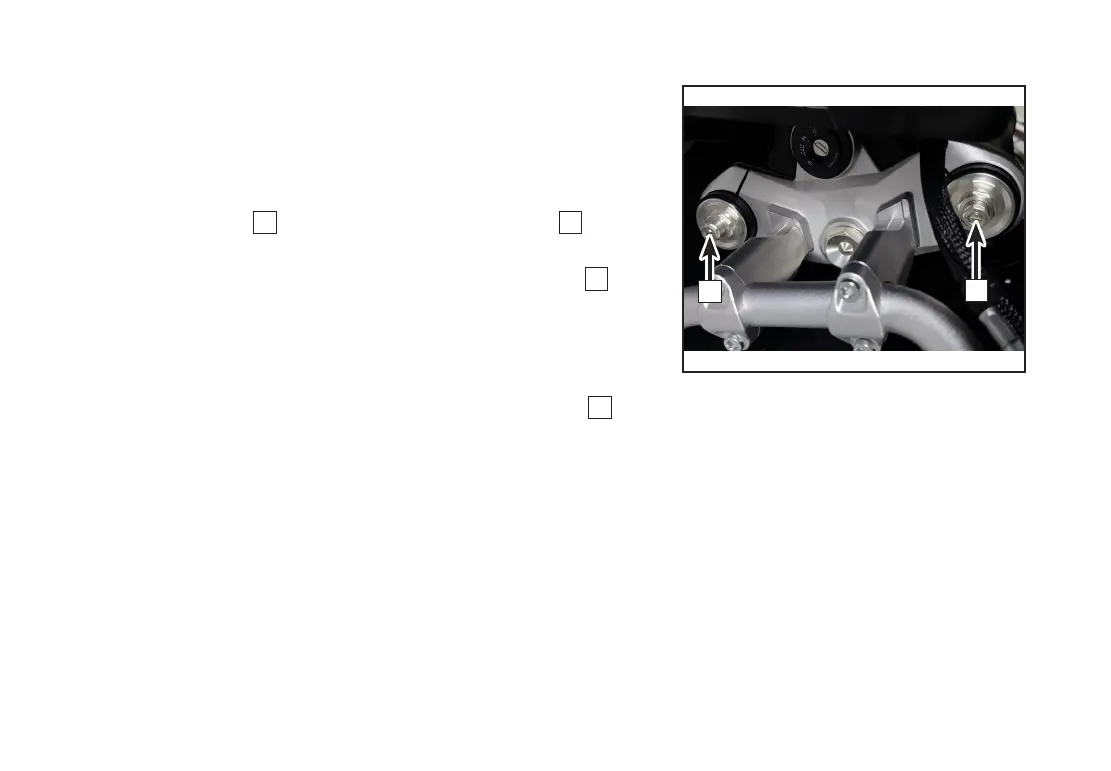

Compression Damping Adjustment
Rebound damping
4
: TEN Compression damping
5
: COMP
Rebound damping affects the response speed of shock
absorber� The higher the rebound damping setting
4
, the
slower the rebound speed of the suspension� The lower the
rebound damping setting, the faster the rebound speed of the
suspension�
Compression damping affects the response speed of shock
absorber� The higher the compression damping setting
5
, the
slower the compression speed of the suspension� The lower the
rebound compression setting, the faster the compression speed
of the suspension�
4
5
Shock absorber oil:KHL15-10
Shock absorber volume:585±2mL
Factory setting: 10 clicks Total available settings: 20±2 clicks
Rotate the adjuster counter-clockwise (H direction) by straight screwdriver and record the number to
decrease compression damping� Rotate clockwise (S direction) by straight screwdriver and record the
number to increase compression damping�
Fully rotate the adjuster back from the recorded clicks to restore the factory setting, or rotate counter-
clockwise (H direction) to the end, then rotate clockwise (S direction) to the 10
th
click�
Contact a CFMOTO dealer before attempting any suspension adjustment�
