y0.04
MPPT mini voltage
reference
0～Max Voltage
Default:
VSR23:270
VSR48:500
y0.05
MPPT max voltage
reference
Max Voltage～750V
Default:
VSR23:330
VSR48:600
When y0.03 is 1, MPPT voltage will tracked within y0.04~y0.05. y0.05 must be larger than
y0.04.Smaller is the difference between them, the narrower will be the tracking range and tracking will
be faster. But the voltage point of max power must fall in this range..
y0.06
PID Given Filter Time
0.000～10.000s
Default : 0.000s
y0.07
PID Response Filter Time
0.000～10.000s
Default : 0.000s
y0.08
PID Output Filter Time
0.000～10.000s
Default : 0.000s
y0.09
Ratio Gain Kp1
0.00～100.00
Default : 0.10
y0.10
Points Time KI
0.00～100.00
Default : 0.10
y0.11
PID Upper limit of output
frequency
PID Lower limit of output
frequency～100.0%（100.0%
corresponds to the max
frequency）
Default : 100.0%
y0.12
PID Lower limit of output
frequency
0.0%～PID Upper limit of output
frequency
Default : 20.0%
Refer to F0 group of PID function description.
y0.13
Delay time of weak light
pre-warning sleep
0.0～6000.0s
Default : 600.0s
y0.14
Delay time of weak light
wake-up
0.0～6000.0s
Default : 100.0s
When the output frequency is less than or equal to the lower limit of PI output frequency (y0.12),
delay timing begins. After delay time of weak light pre-warning (y0.13) expires, weak-light pre-warning
is reported (Arn33), and system enters dormant state.
In weak light pre-warning, when output frequency is larger than lower limit of PI output frequency,
delay time starts and continues until arrival delay time （y0.14）of wake-up at weak light after which it
clears the weak light pre-warning signal and re-enters the running status.
PI output
Frequency
output
PI lower
limit
Wake up
delay time
of weak
light
Running status Dormancy status
PI lower
limit
Running
status
Dormancy
delay time
of weak
light

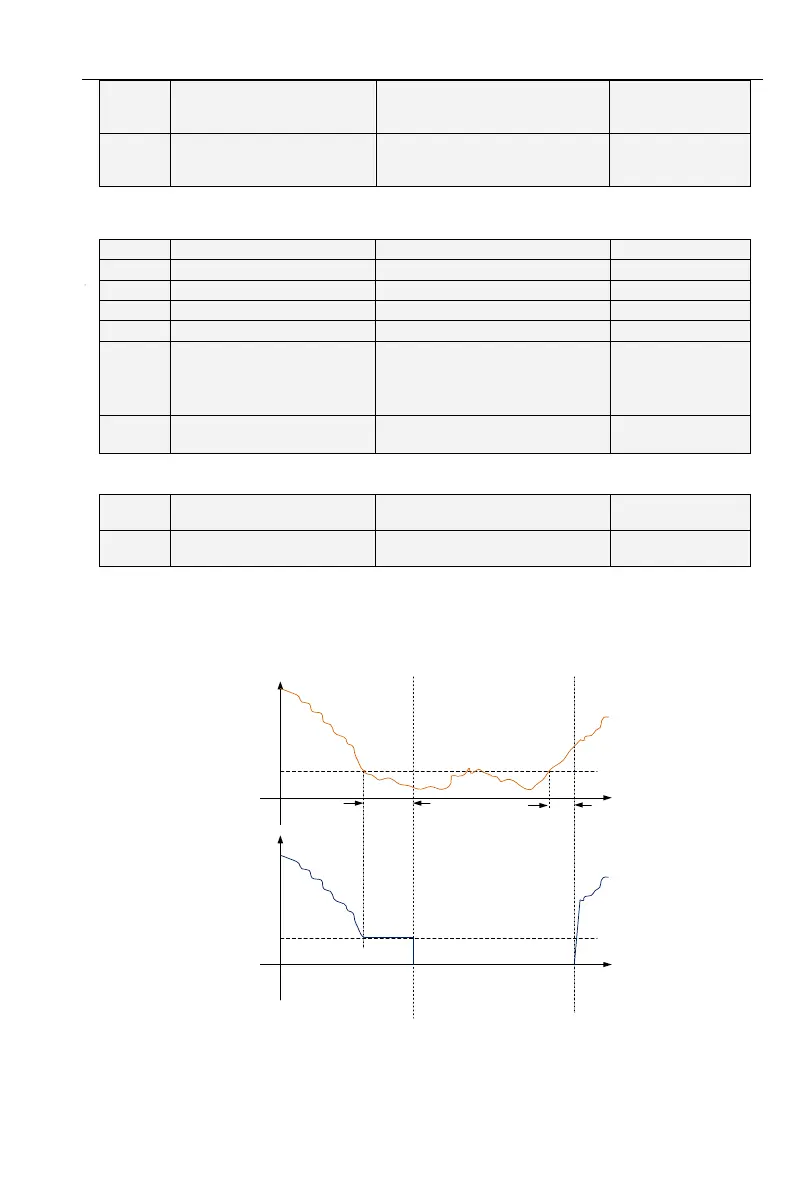

Fig 7-1 Weak light dormancy & wake up
