Emotron VS Series Quick Start Guide
- 17 -

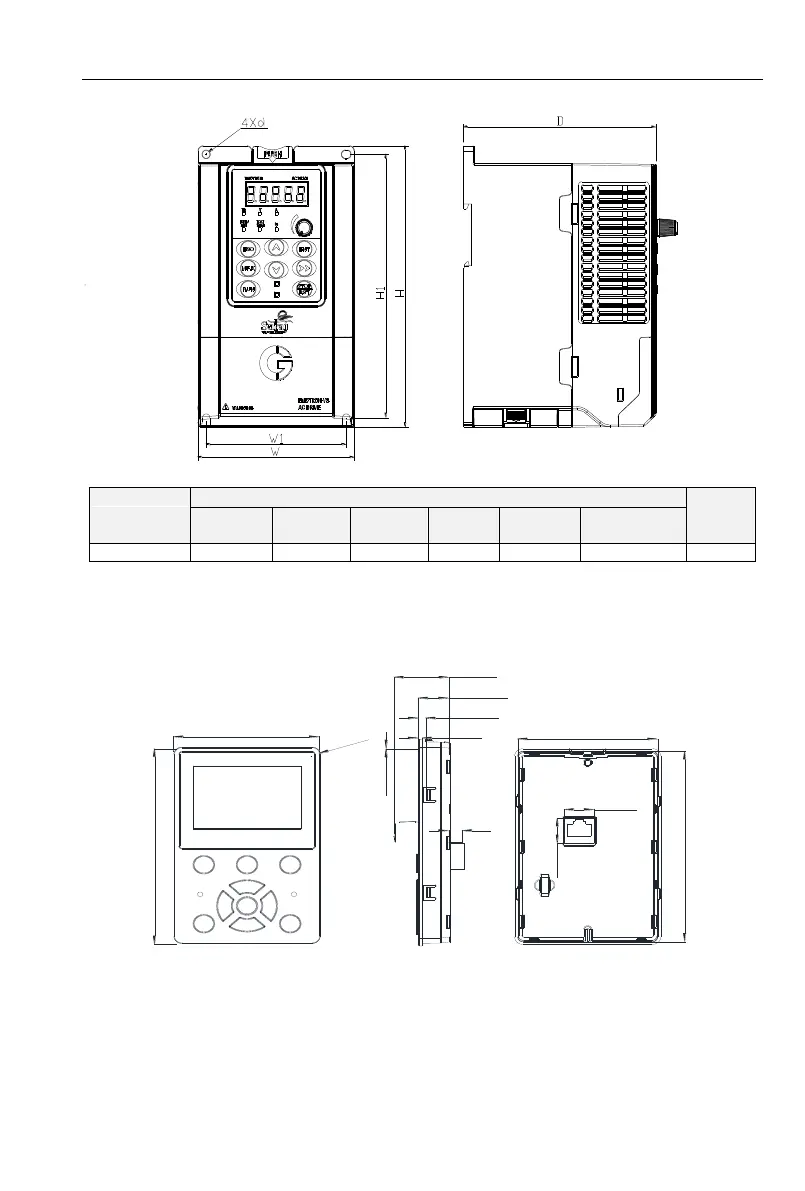

◆VSR frame 3
Table 2-10 Product size chart
Model No.
Dimensions and installation size（mm）
Weight
（kg）
W
W1
H
H1
D
Installation
Aperture
VSR3
146
131
249
236
177
5.5
3.2
2.5 External Dimensions of Keypad
2.5.1 VSX Series
74.6
116.6
R4.3
15.5
2
0.15
3.8
28
8
71.6
113.6
15.9
15.6
Fig 2-7 LCD Keyboard size diagram
External keyboard installation instruction:
1. first install the panel according to inverter’s power range corresponding to the size of hole as shown
on scheme 2-11, After that insert keyboard pad into the mounting panel and then insert the
keyboard module into the keyboard pad.（Before removing the keyboard pad, first remove the
keyboard, then remove as shown in the scheme）.
