2.4.3 VSS Series

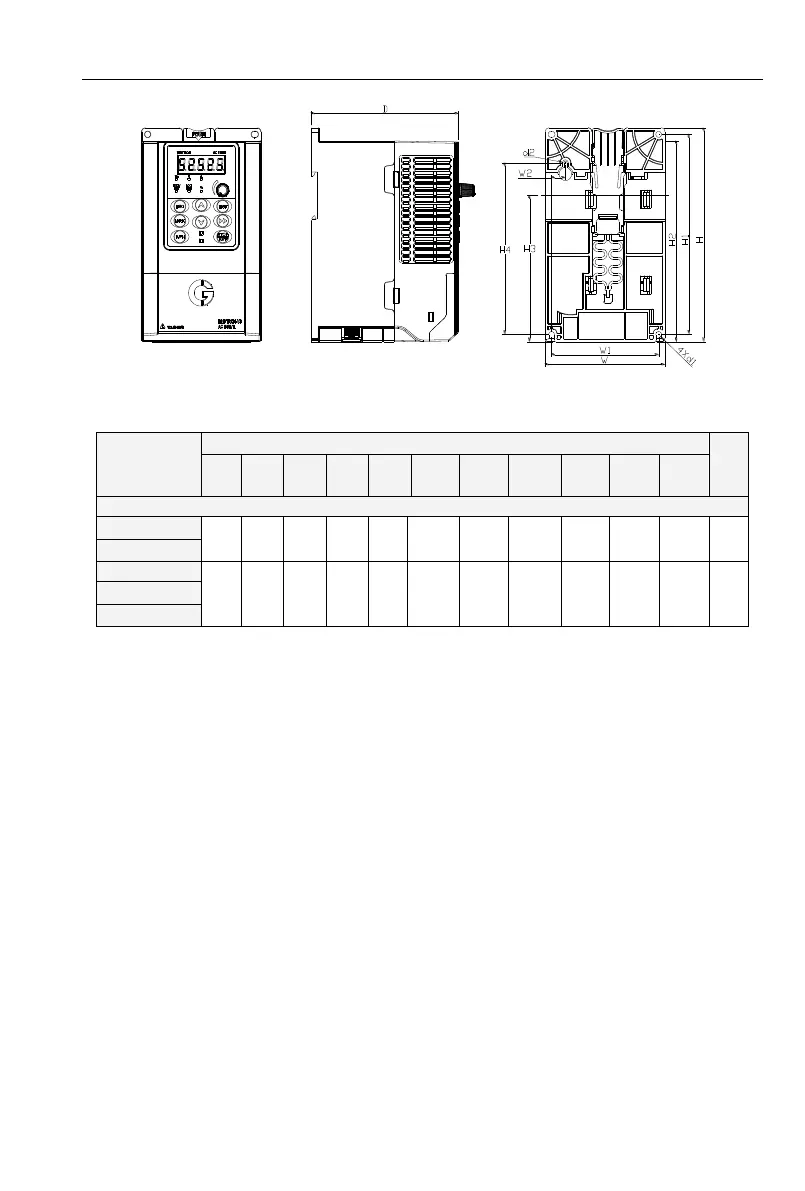

Fig 2-6 Product size
Table 2-9 Configuration, mounting dimensions and weight
Model
External and installation dimensions（mm）
Wei
ght
(kg)
W
H
D
W1
W2
H1
H2
H3
H4
Install
Hole
d1
Install
Hole
d2
Single-Phase: 220V，50/60Hz
VSS23 2p5 CEB
95
162
120
85
11
151.5
152
110.8
130
4.5
4.5
1.1
VSS23 4p2 CEB
VSS23 5p5 CEB
110
173
135
100
11
163
163
121.8
140.5
4.5
5
1.5
VSS23 7p5 CEB
VSS23 9p5 CEB
2.4.4 VSR Series
◆VSR frame 1 and 2
(Same with VSS)
