CHAFFOTEAUX EXPERT CONTROL User Manual

70
GB

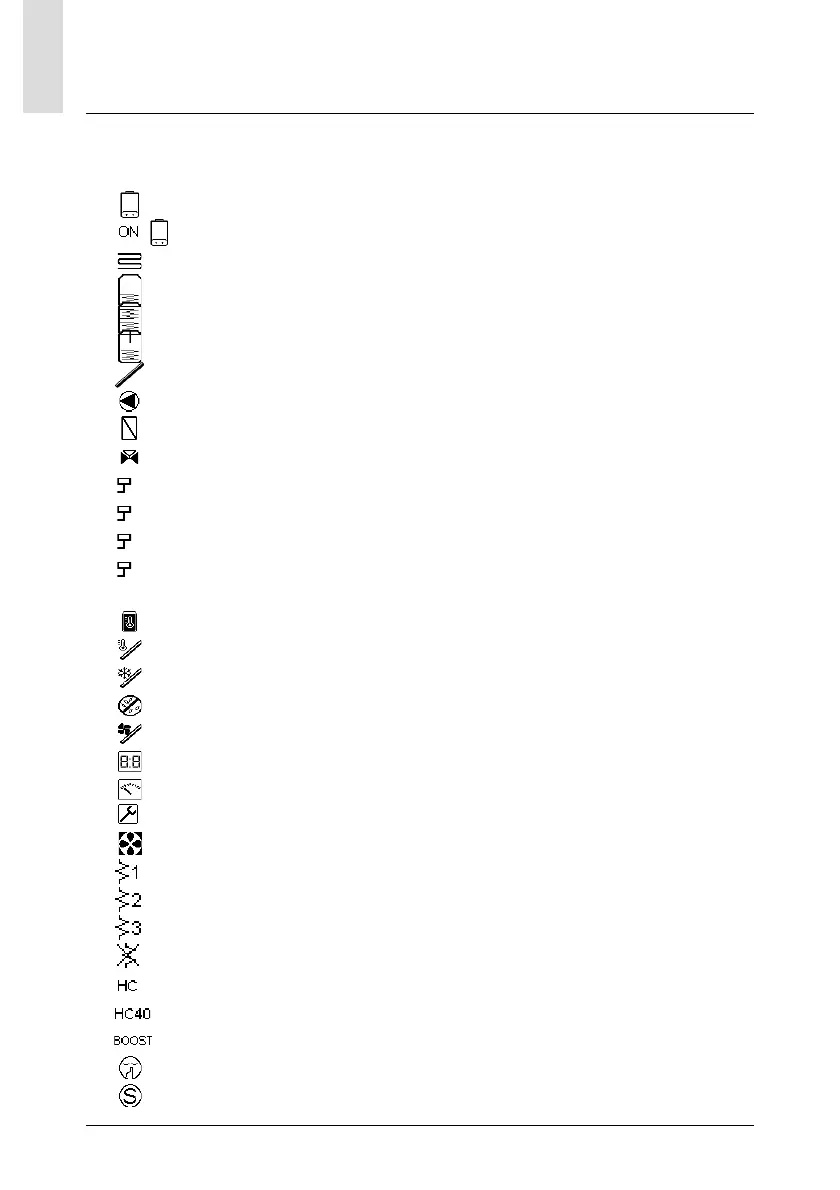

product description
Visible symbols with solar heating
system and/or heat pump installed:
- ( ) Boiler
- (
) Boiler operating
- (
) Under-fl oor heating system
- (
) Single-coil indirect cylinder
- (
) Double-coil indirect cylinder
- (
) Solar-electric indirect cylinder
- (
) Solar collector
- (
) Circulation pump
- (
) Heat exchanger
- (
) Diverter valve
- (
S1) Collector sensor
- (
S2) Low indirect cylinder sensor
- (
S3) High indirect cylinder sensor
- (
S4) Under-fl oor heating system
thermostat
- (
) Indirect cylinder overheating
- (
) Collector overheating
- (
) Anti-frost function
- (
) Thermal Cleanse Function
- (
) Recooling function
- (
) Digital display format
- (
) Analogue display format
- (
) Confi gurable device
- (
) Heat pump
- (
) Resistance 1
- (
) Resistance 2
- (
) Resistance 3
- (
) Resistance excluded
- (
) Manual mode HC
- (
) Manual mode HC 40°C
- (
) BOOST mode
- (
) Silent mode
- (
) Special functions
Initial start-up
The fi rst time the EXPERT CONTROL
system interface is connected, the user
is required to choose certain basic set-
tings.
First, you will need to select the user in-
terface language.
Turn the knob and select the desired
language, then press the OK button to
confi rm. Move on to setting the date and
time. Turn the knob to make a selection,
press the OK button to confi rm your se-
lection, turn the knob to set the value.
Press the OK button to confi rm.
Save the settings by pressing OK.
Press the OK button to access the Menu.
Use the knob in the centre to scroll
through the menu list and select a pa-
rameter, then press OK to confi rm.
CAUTION
Some parameters are protected with an
access code (safety code) which protects
the boiler settings from unauthorised
use.
