Challenger 660B User Manual

Safety
01-8 79032966 A Rev.

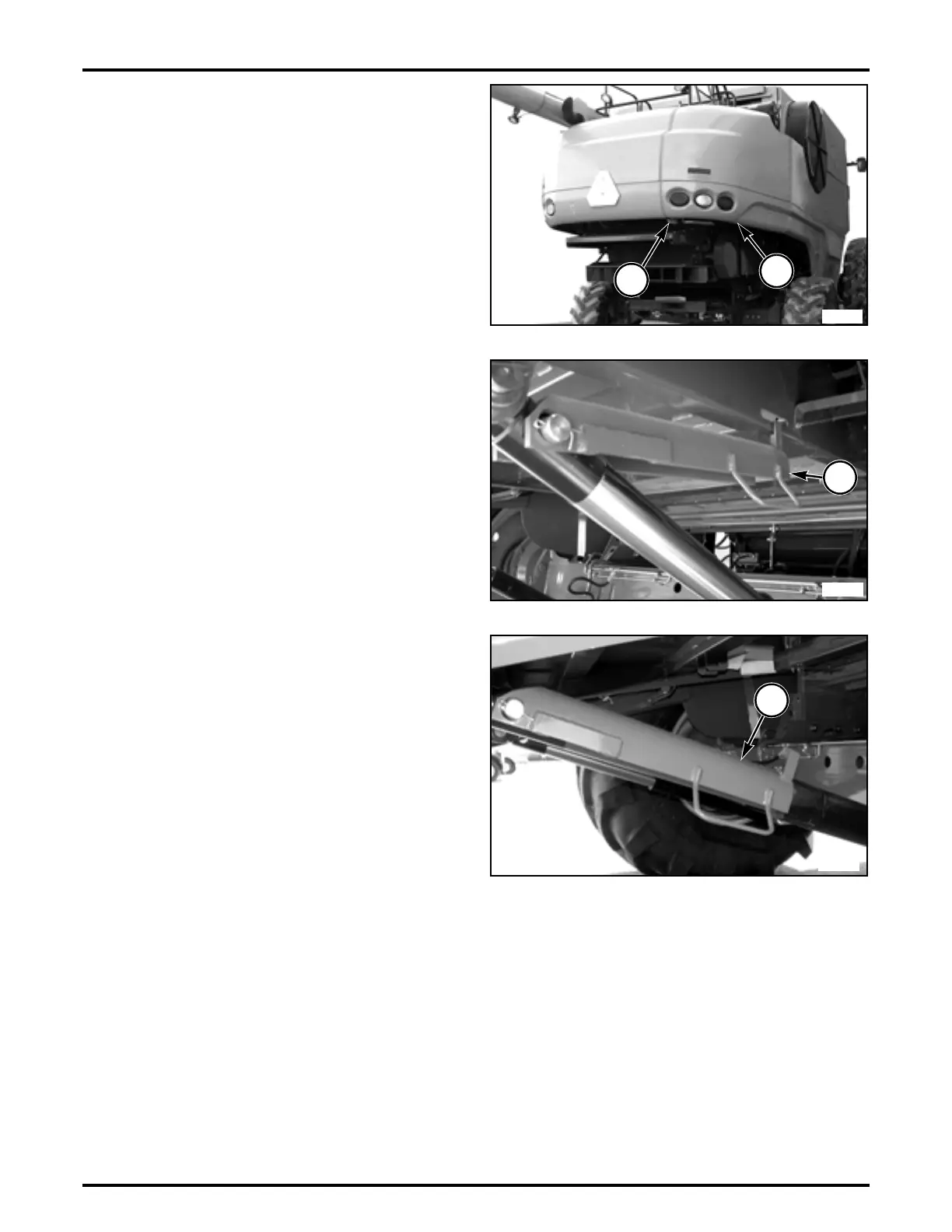

FIG. 26: The engine platform ladder shield latch (1) is
located in the rear section of the shield (2).
HEADER LIFT CYLINDER STOP
A header lift cylinder stop is provided on the left-hand
header lift hydraulic cylinder.
FIG. 27: Header lift cylinder stop (1) in the disengaged
position.
FIG. 28: Header lift cylinder stop (1) in the engaged
position.
Properly engage the header lift cylinder stop as shown
before going under the header or feeder house for any
reason.
To engage the header lift cylinder stop:
1. Raise the feeder house until the cylinder rod is fully
extended to allow engagement of the header lift
cylinder stop.
2. Release the hook and lower the header lift cylinder
stop onto the cylinder rod.
3. Lower feeder house until the header lift cylinder stop
contacts the end of the cylinder.
FIG. 26
2
1
P107227
FIG. 27
1
N516689
FIG. 28
1
N516587
