Challenger 660B - Right-hand Side

General Information
01-30 79032966 A Rev.
Right-hand Side

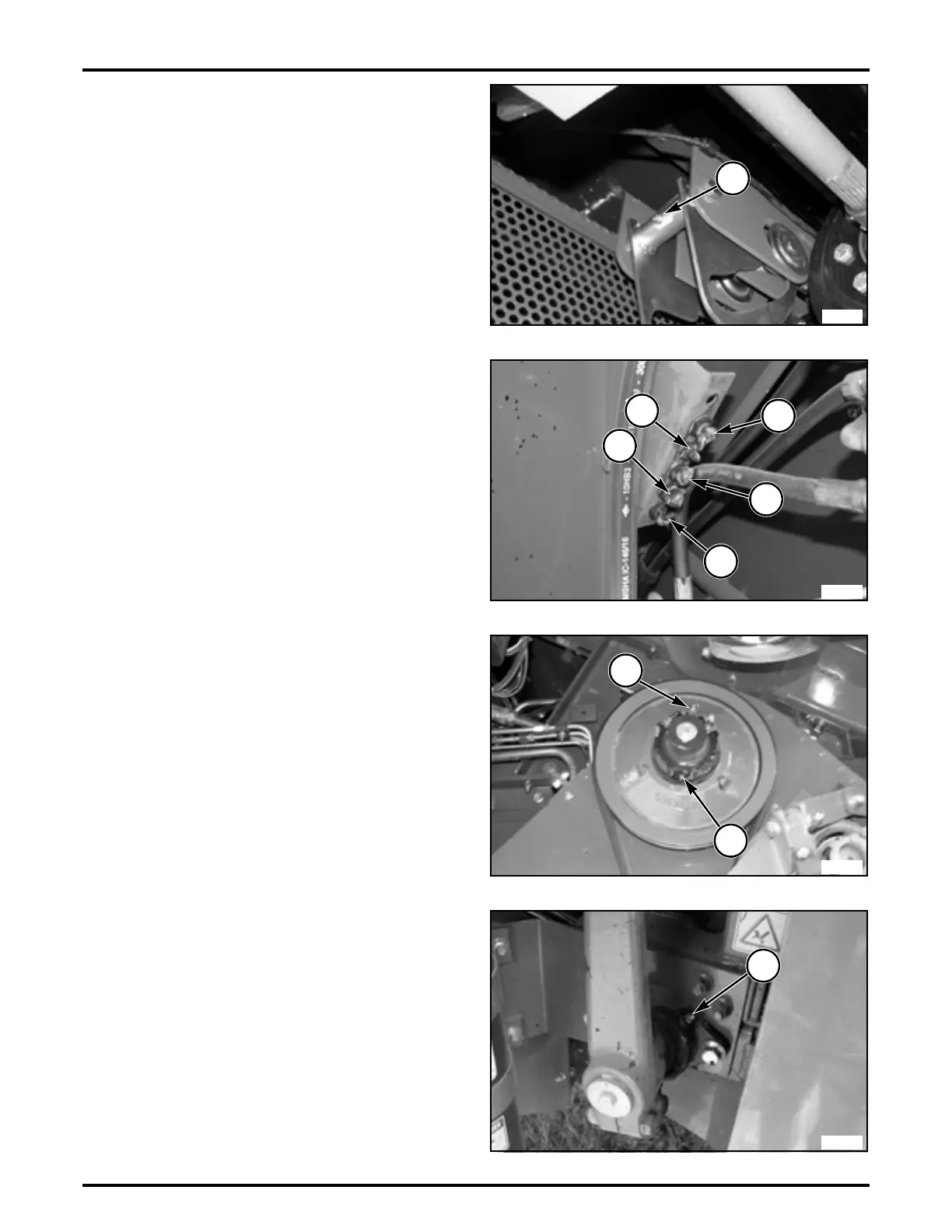

FIG. 55: Transmission shift linkage (1).
One fitting (500 hours).
FIG. 56: Grease bank in front of the clean grain elevator
Straw Chopper/Spreader Secondary Drive Idler Pivot (1)
(50 hours or weekly).
Straw Chopper/Spreader Primary Drive Idler Pivot (2) (50
hours or weekly).
Return Elevator Drive Idler Pivot (3) (50 hours or weekly).
Cleaning Fan Drive Idler Pivot (4) (50 hours or weekly).
Front Rotor Bearing (5). Grease sparingly at (50 hours, or
weekly).
FIG. 57: Below grain tank.
Return elevator drive slip clutch, two fittings (1) (100
hours).
Return elevator conveyor drive sheave fitting (2) (100
hours).
FIG. 58: Behind cleaning fan.
Shaker Shoe Shaft Right Bearing (1) (500 hours).
FIG. 55
1
LA06503
FIG. 56
4
5
3
2
1
N722122
FIG. 57
1
2
N722123
FIG. 58
1
N722125
