General Information

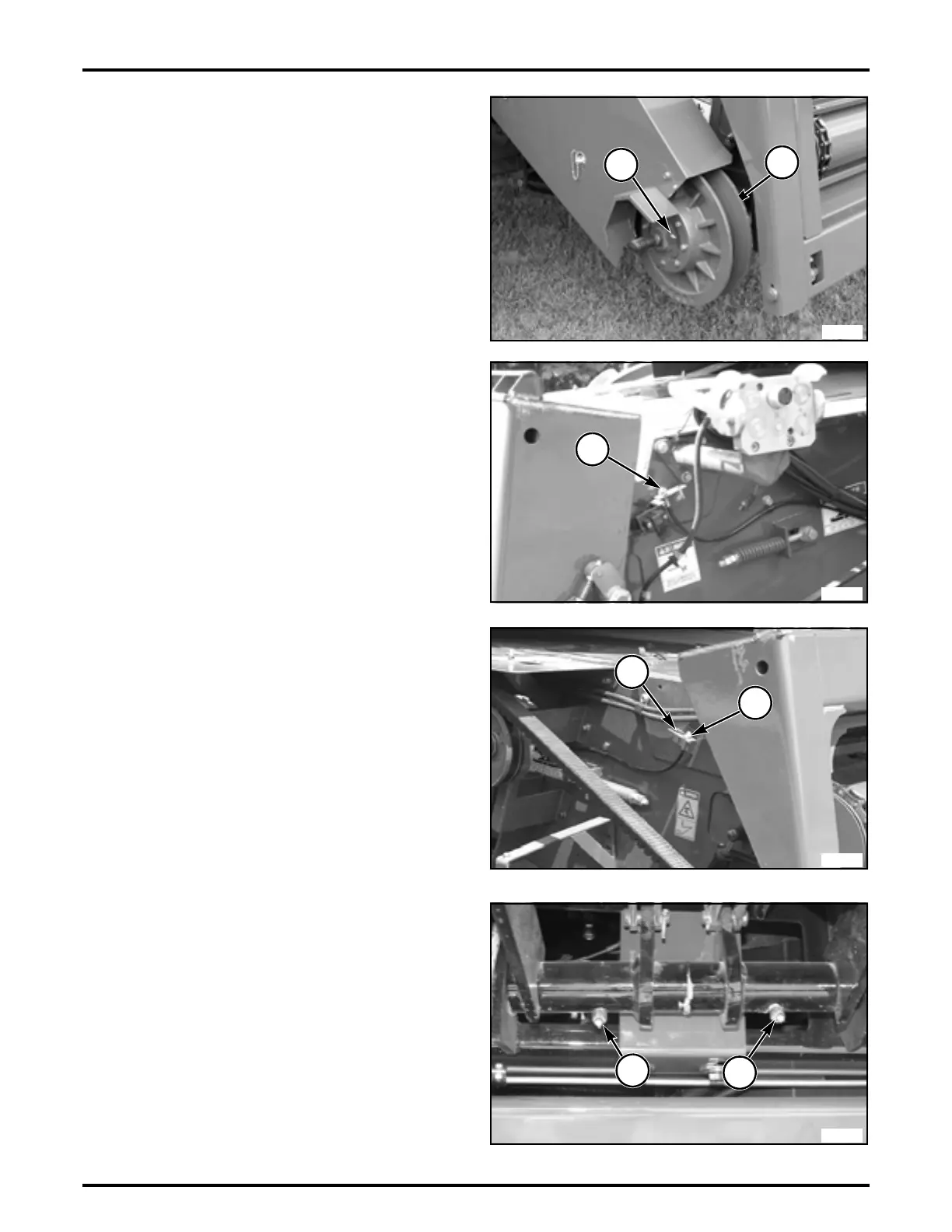

FIG. 45: Variable speed corn header drive sheave (if
equipped).
Two fittings (1) (10 hours or daily).
FIG. 46: Left-hand side of feeder house.
Pivot drive idler hub - one fitting (1) (50 hours or weekly).
FIG. 47: Right-hand side of feeder house.
Beater shaft to feeder house jack shaft idler (1) (10 hours
or weekly).
Fixed speed header drive idler fitting (2) (50 hours or
weekly).
NOTE: The fixed speed driven sheave is lubricated from
the factory and does not require any added
lubrication.
FIG. 48: Under front of cab, brake pedals.
Two fittings (1) (500 hours).
FIG. 45
1
1
LA06287
FIG. 46
1
N722061
FIG. 47
1
2
N722081
FIG. 48
1
1
N722114
