CEILING MOUNT ONLY
KEY PART
NO. NO. DESCRIPTION
1 41A5273-1 Multi-function door control (3240M)
2 41A4166 Lighted door control button (3130M)
3 41A2828 Emergency release rope & handle
4 371LM 1-button remote control (3130M)
5 373LM 3-button remote control (3240M)
6 10A20 3V 2032 Lithium battery (1 required)
7 29B137 Visor clip
8 41A5047 Door bracket w/clevis pin & fastener
9 178B34 Straight door arm section
10 41A4353 Header bracket w/clevis pin & fastener
11 41A5034 Safety reversing sensor kit: receiving and
sending eyes with 3' (.9 m) 2-conductor bell
wire attached
12 41A5266-1 Safety reversing sensor bracket
13 41B4494-1 2-conductor bell wire: white & white/red
14 178B35 Curved door arm section
NOT SHOWN
41A4675-7 Installation hardware bag (see page 3)
114A4262 Owner’s manual
114A4262SP Owner’s manual-Spanish
KEY PART
NO. NO. DESCRIPTION
1 41A6353 Hardware bag (includes sprocket coupling)
2 81C275 Rack
3 41A6262 Complete trolley assembly
4 3077SD Screw Drive one-piece rail 7' (2.1 m)
5 3088SD Screw Drive one-piece rail 8' (2.4 m)
6 41A4836 Drive sprocket kit
7 25C20 Coupling
8 41A6312 Rail end bracket
NOT SHOWN
28A143 Wire clips
Installation Parts
REPAIR PARTS

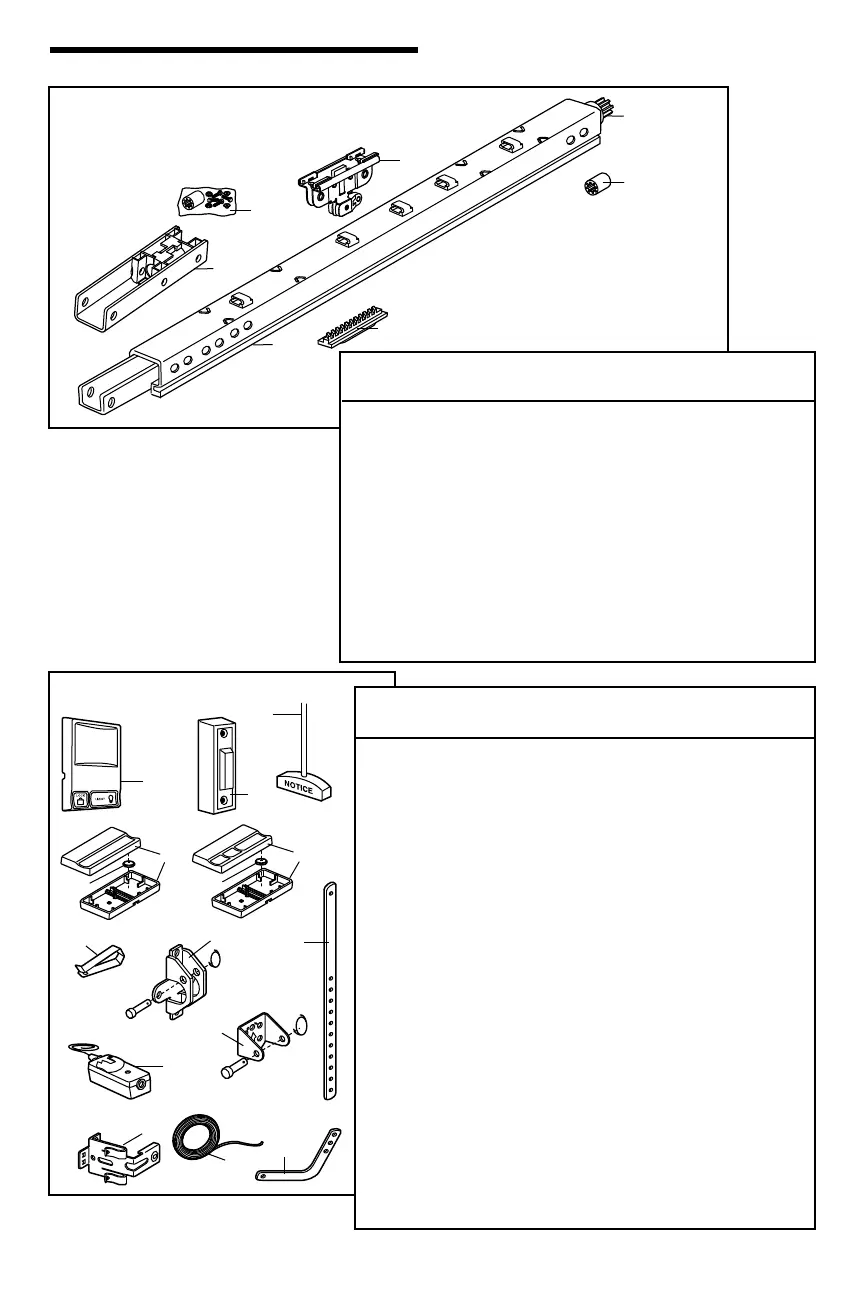

Rail Assembly Parts
1
1
2
2
3
3
4
4
5
5
6
6
7
6
8
9
10
11
12
13
14
7
