Chamberlain 5410E 2013 - Assembly Step 2: Install Trolley on T-Rail

10
Outer Nut
5/16"-18
Trolley
Threaded
Shaft
Lock Washer
5/16"
Inner Nut
5/16"-18
R
O
OD
E
G
A
R
A
G
O
T
Hex Bolt
Trolley Stop
Hex Bolt
5/16"-18x7/8"
Inner Nut
5/16"-18
Lock Washer
5/16"
Chain Pulley
Bracket

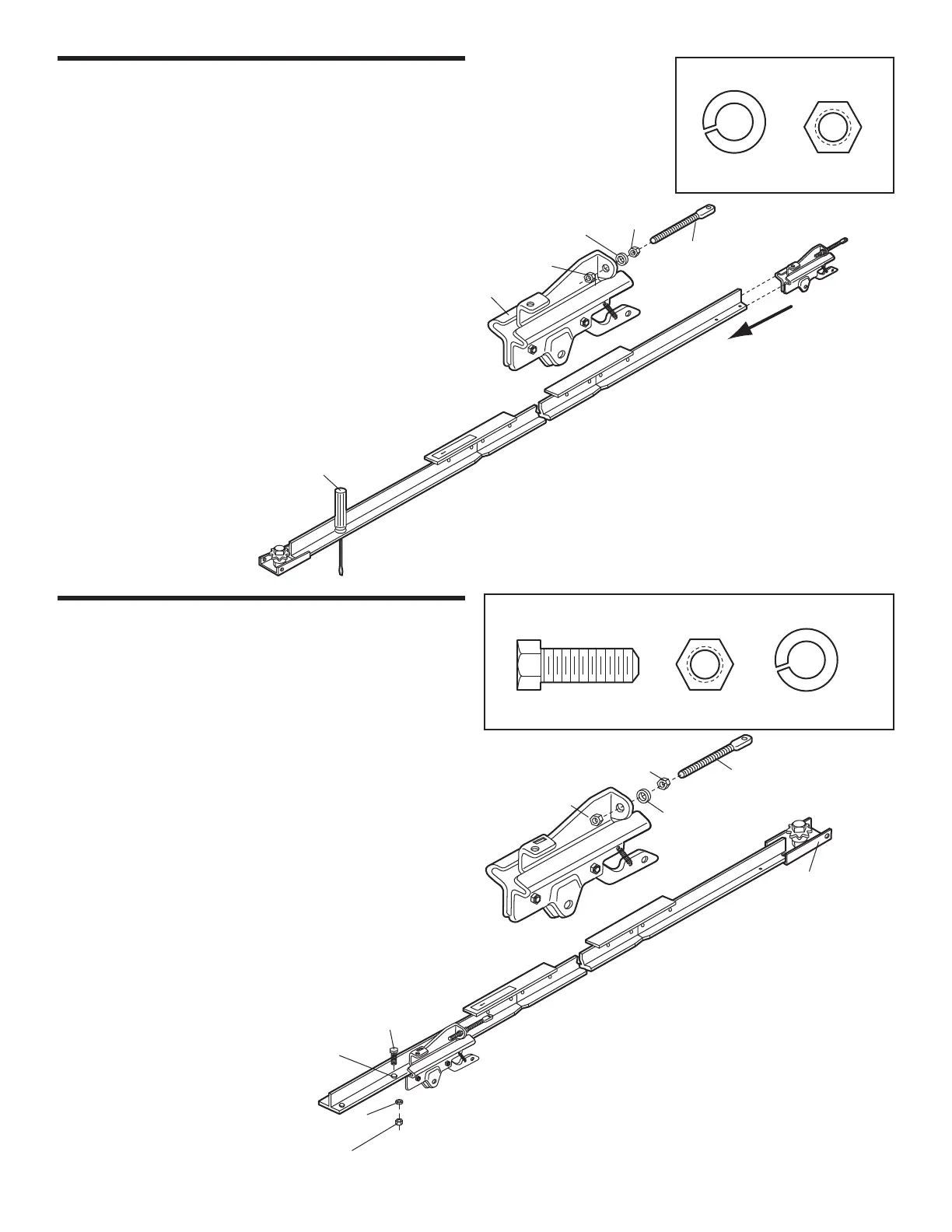

ASSEMBLY STEP 2
For Sectional and One-Piece Doors Only
Install the Trolley on the T-Rail
• Attach the trolley threaded shaft to the trolley with the lock
washer and nuts as shown.
• As a temporary stop, insert a screwdriver into the hole in the
front end of the T-rail.
• Slide the trolley assembly along the rail to the screwdriver stop.
NOTE: If trolley hits against any nuts on the T-rail, the bolts
and nuts were attached from the wrong side and must be
repositioned. Review Assembly Step 1.
Lock Washer
5/16"
Nut
5/16"-18
HARDWARE SHOWN ACTUAL SIZE
ASSEMBLY STEP 2
For Sliding and Swinging Gates Only
Install the Trolley on the T-Rail
• Attach the trolley threaded shaft to the trolley with the lock
washer and nuts as shown.
• Insert a hex bolt into the hole in the front end of the T-rail.
• Slide the trolley assembly along the rail until it rests against the
hex bolt (trolley stop).
NOTE: If trolley hits against any nuts on the T-rail, the bolts
and nuts were attached from the wrong side and must be
repositioned. Review Assembly Step 1.
Nut
5/16"-18
Lock Washer
5/16"
Hex Bolt
5/16"-18x7/8"
HARDWARE SHOWN ACTUAL SIZE
Chain Sprocket
Bracket
Trolley
Threaded
Shaft
Lock Washer
5/16"
Outer Nut
5/16"-18
Inner Nut
5/16"-18
Trolley
Temporary Stop
Screwdriver
T
O
G
A
R
A
G
E
D
OO
R
